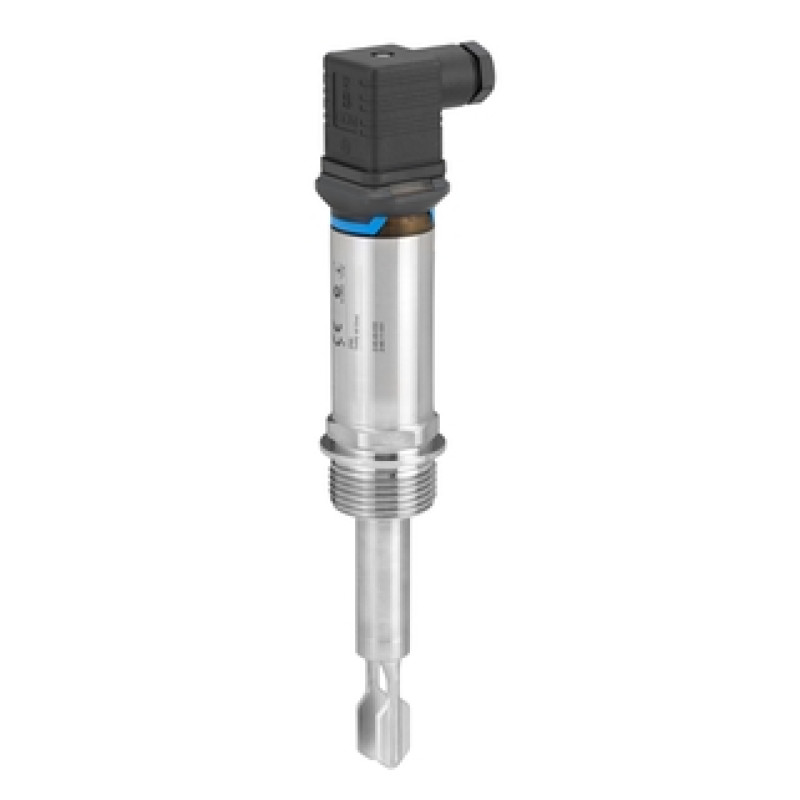

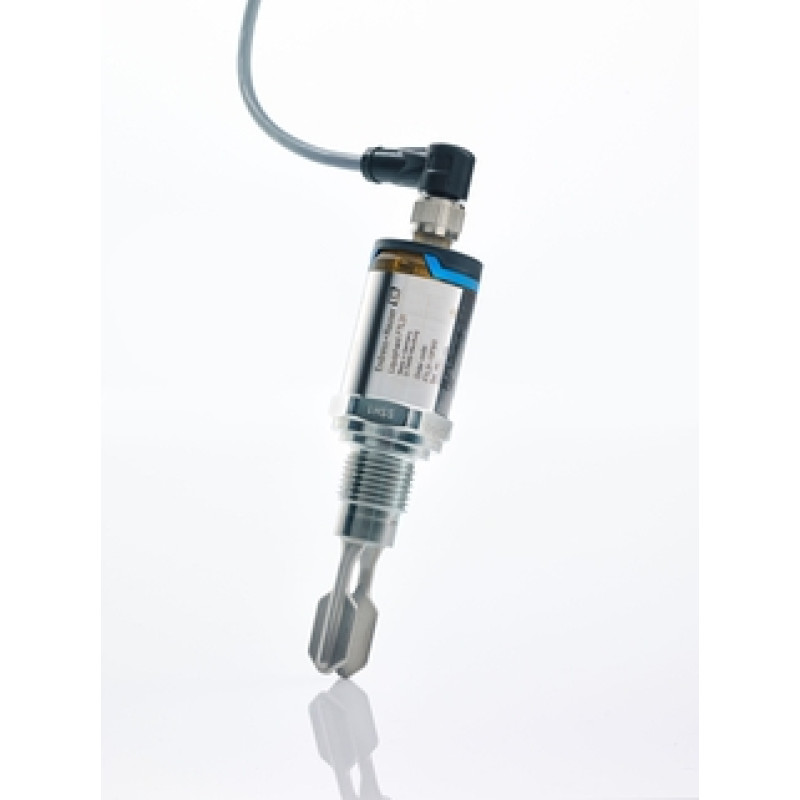

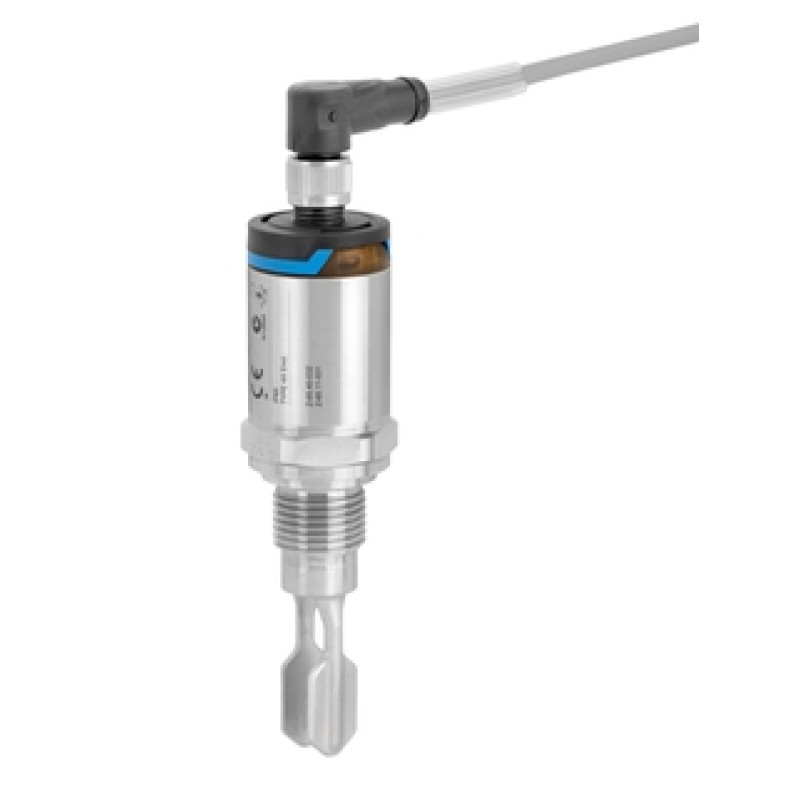

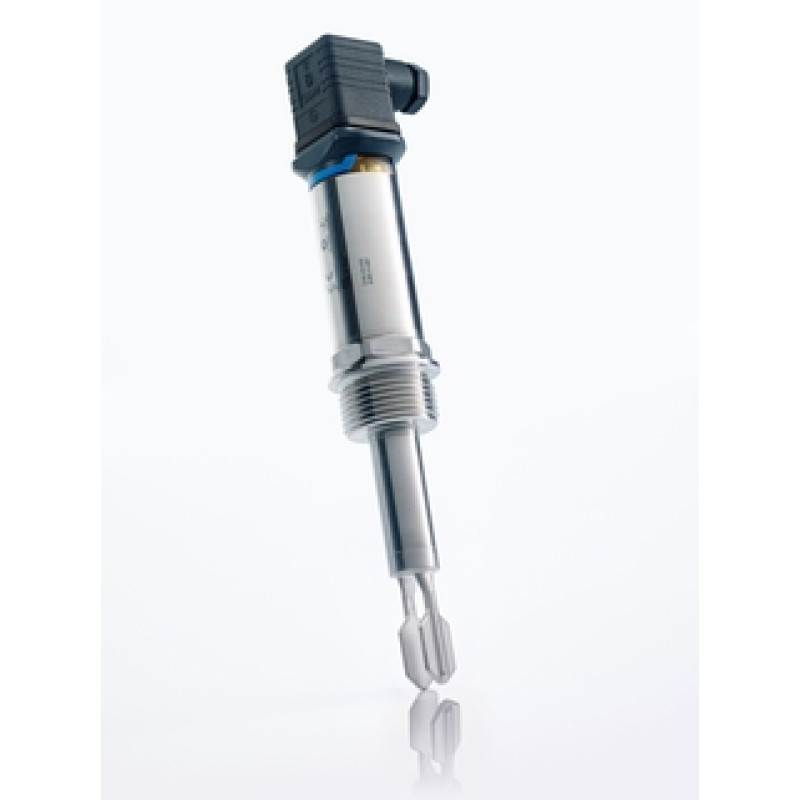

FTL31 Liquiphant Vibronic Point level detection

Point level switch for liquids in compact design with stainless steel housing

Previous: Pump Protection FTW360, Liquiphant T FTL20, Liquiphant T FTL260

• Measuring principle

  Vibration Liquids

• Characteristic / Application

  Level switch for liquids and is used in tanks, vessels
  and pipes.

• Supply / Communication

  20 ... 253V AC/DC, 2-wire
  10 ... 30V DC-PNP 3-wire

• Ambient temperature

  -40 °C ... 70 °C
  (-40 °F ... 158 °F)

• Process temperature

  -40 °C ... 150 °C
  (-40 °F ... 302 °F)

• Process pressure / max. overpressure limit

  Vacuum ... 40 bar
  (Vacuum ... 580 psi)

• Min. density of medium

  >0,7g/cm³
  (>0,5g/cm³ optional)

• Main wetted parts

  316L

• Process connection

  Threads:
  G1/2, G3/4, G1, MNPT1/2, MNPT3/4, MNPT1, R1/2, R3/4, R1

• Communication

  AC/DC, DC-PNP

• Certificates / Approvals

  CSA C/US, EAC

• Safety approvals

  Overfill protection WHG
  Leakage

• Design approvals

  EN 10204-3.1

• Marine approval

  ABS/ LR/ BV/ DNV

• Options

  Adjustment switching delay
  Cleaned from oil+grease,
  PWIS free

Liquiphant FTL31 is a point level switch for liquids. The FTL31 is designed for industrial applications in all industries, mainly the machinery industry. The Liquiphant is used for overfill protection or pump dry-run protection in cleaning systems. The IO-Link capability allows easy parameter setting.
Compact:
- Smallest vibronic sensor in the market
Safe:
- Continuous self-monitoring
-Reliable switching independent of media properties
Easy:
- No calibration
- Plug & play
- IO-Link connectivity

Point level switch in compact design with stainless steel housing.

• Process connections: Threads

• Temperature: -40 to +150°C (-40 to +302°F)

• Pressure: -1 to +40bar (-14.5 to 580psi)

• Surface roughness: 3.2µm

• Overfill protection and leakage detection WHG, marine approvals, final inspection report

• Designed according to highest requirements to quality and environmental sustainability. The self-monitoring Liquiphant offers safe switching also in case of power supply loss.

• Independent of changing media properties an accurate switching point is offered. IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools

• A real plug & play sensor is offered without any need for adjustment even with changing media. Measurement is unaffected by conductivity, build-up, turbulence, flows or air bubbles

• No calibration is required, no specific know-how or tools (e.g. software) necessary

• Robust design made of stainless steel (316L) assures highest durability

• A modular design offers different process temperatures and the widest variety of process connections and accessories in the market to fit every application

• No mechanically moved parts, free of maintenance
