FMU44 Prosonic Ultrasonic measurement Time-of-Flight

Cost effective device for sophisticated level measurement in liquids and bulk solids for up to 20m

Previous: DU60Z, DU61Z, FMU671, FMU676, FMU673Z, FMU678Z, DU41C

• Measuring principle

  Ultrasonic

• Characteristic / Application

  Compact ultrasonic transmitter

• Supply / Communication

  2-wire HART

• Accuracy

  +/- 4mm or +/- 0,2 % of set measuring range

• Ambient temperature

  -40 °C ... 80 °C
  (-40 °F ... 176 °F)

• Process temperature

  -40 °C ... 80 °C
  (-40 °F ... 176 °F)

• Process pressure / max. overpressure limit

  0,7 bar ... 2,5 bar abs
  (10 psi ... 36 psi)

• Main wetted parts

  PVDF

• Process connection

  Flange
  DN100, ASME 4", JIS 10K 100
  DN150, ASME 6", JIS 10K 150
  DN200, ASME 8", JIS 10K 200
  Mounting bracket

• Blocking distance

  0.5 m (1.9 ft)

• Max. measurement distance

  Liquids: 20 m (66 ft),
  Solids: 10 m (33 ft)

• Communication

  4...20 mA HART

• Certificates / Approvals

  ATEX, FM, CSA, INMETRO, NEPSI

• Application limits

  Fast filling and discharging rate:
  FMU90 + FDU9x
  Level limit detection:
  FMU90 + FDU9x

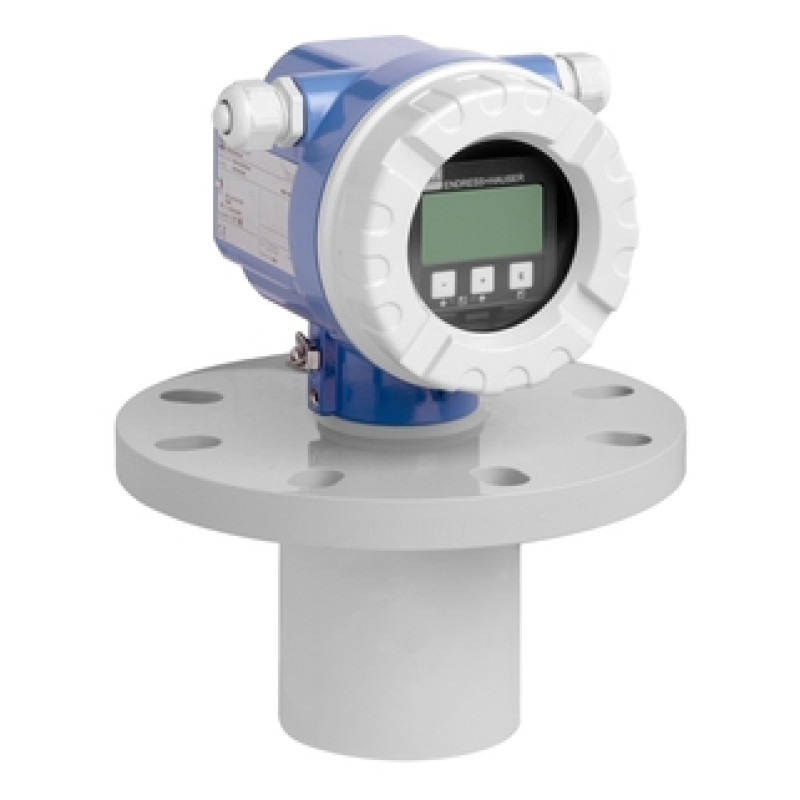

The Prosonic FMU44 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.

Two-wire or four wire instrument for continuous non-contact level and flow measurement.

• Process connection: Flange

• Temperature: -40 to +80°C (-40 to +176°F)

• Pressure: +0.7 to +2.5bar (+10 to +36psi)

• Maximum measuring distance: Liquids 20m (66ft), Solids 10m (33ft)

• Blocking distance: Liquids and Solids 0.5m (1.9ft)

• International explosion protection certificates
