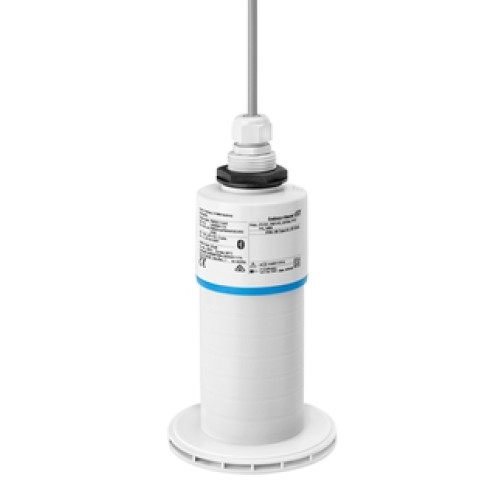

FMR20 Micropilot Radar measurement Time-of-Flight

• Measuring principle

  Level radar

• Characteristic / Application

  Water & Wastewater (e.g. basins / channels / rivers / dams / lift stations / storm water basins / pump control)
  Utility applications in all industries
  Storage tanks

• Specialities

  Bluetooth® commissioning,
  Operation and maintenance SmartBlue App

• Supply / Communication

  2-wire (HART, 4…20 mA, Modbus),
  Bluetooth® wireless technology and App (optional)

• Frequency

  K-band (~26 GHz)

• Accuracy

  +/- 2 mm (0,08")

• Ambient temperature

  -40…+80°C (-40…+176°F)

• Process temperature

  -40…+80°C (-40…+176°F)

• Process pressure / max. overpressure limit

  -1…3 bar (-14,5…43 psi)

• Main wetted parts

  PVDF, PBT

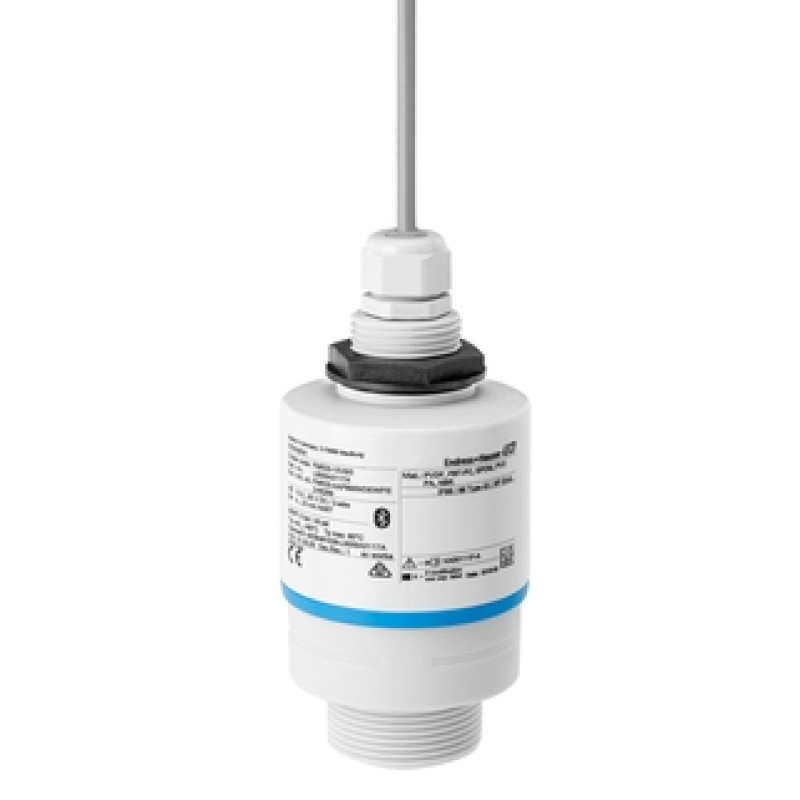

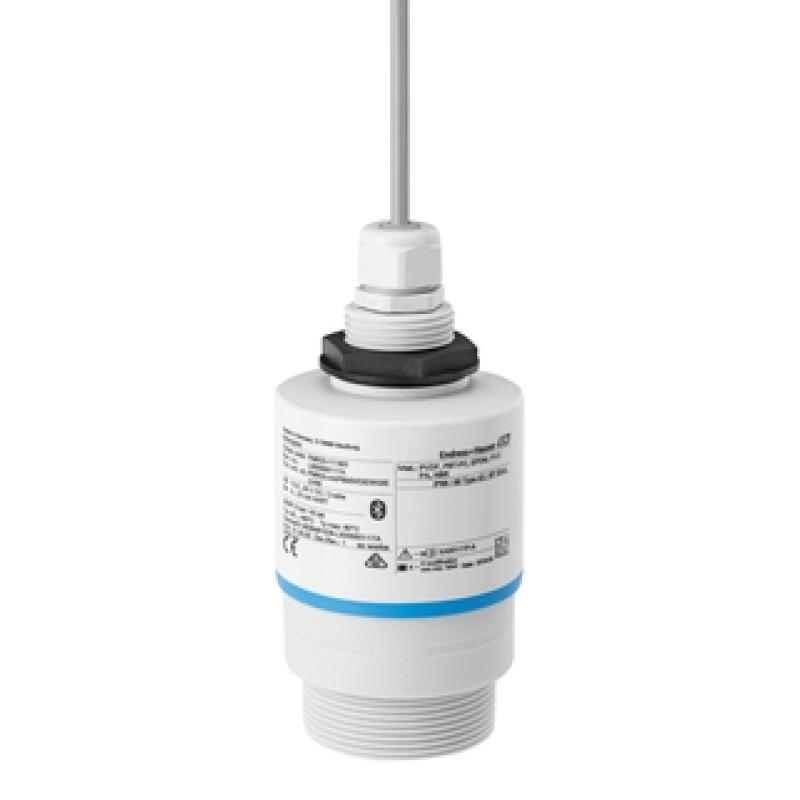

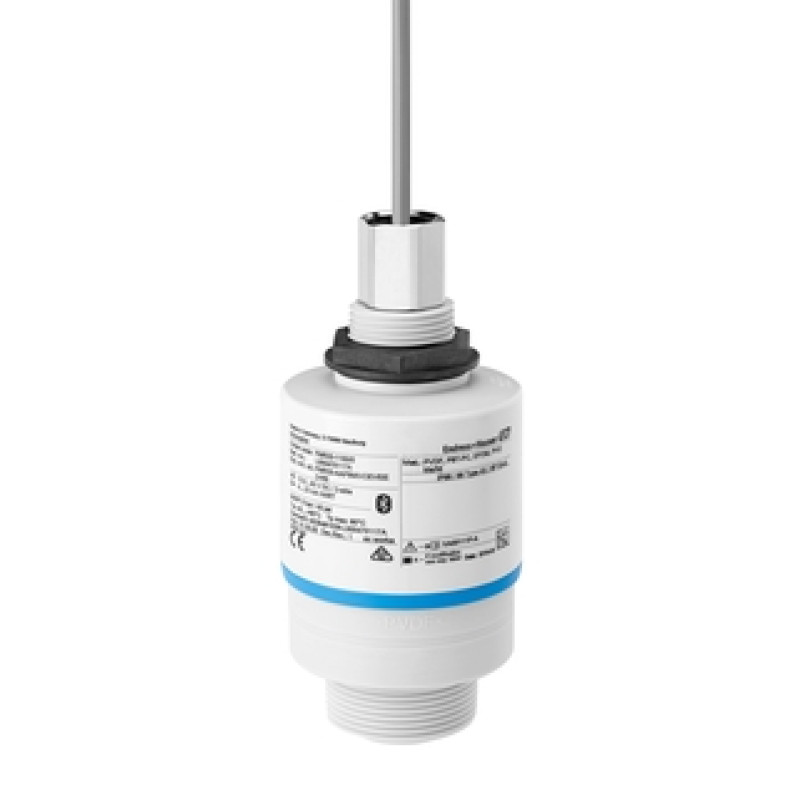

• Process connection

  Thread:
  G1", NPT1"; G1 1/2", NPT1 1/2", G2", NPT2",

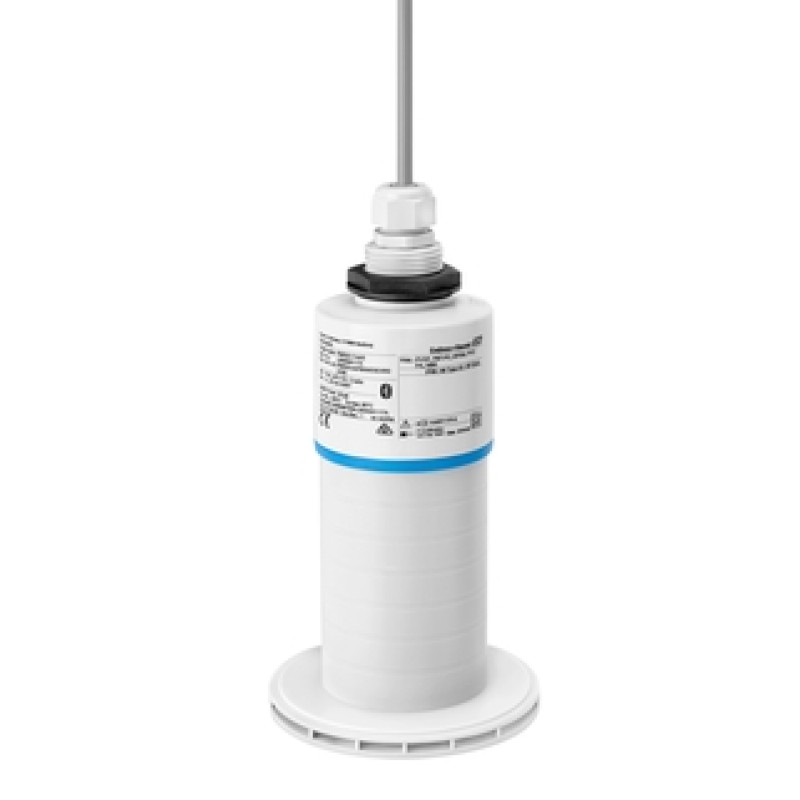

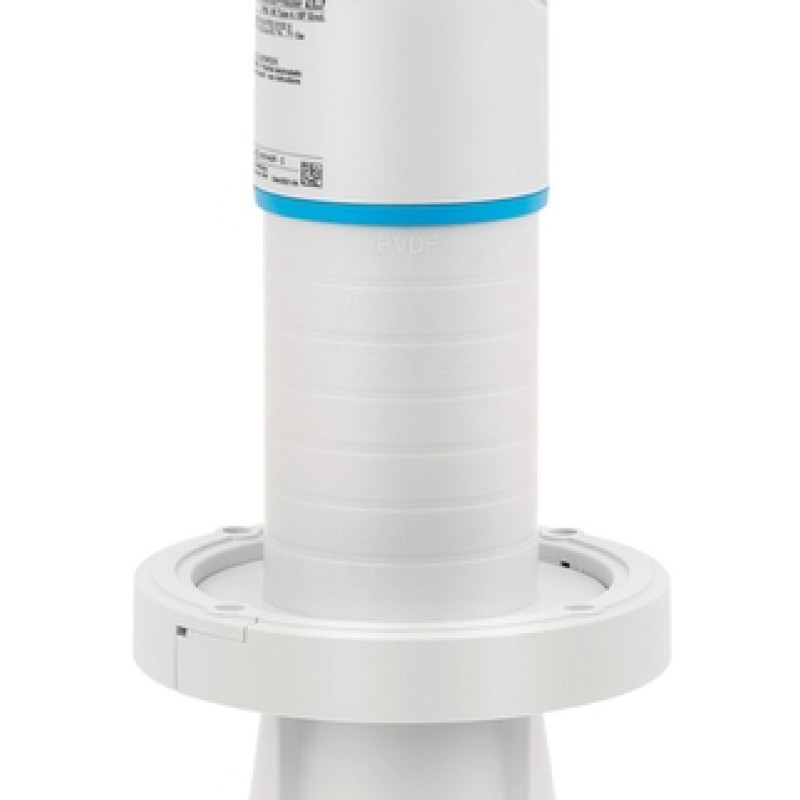

  Flange:
  UNI DN80….DN150 (3"…6")

• Max. measurement distance

  DN40: 15 m (49.2 ft),
  DN80: 20 m (65.6 ft)

• Communication

  4...20mA HART
  Modbus
  Bluetooth® wireless technology

• Certificates / Approvals

  ATEX, CSA C/US, IEC Ex, NEPSI, EAC, JPN Ex, INMETRO

• Options

  Remote operation via SmartBlue App using Bluetooth®,
  Remote HART indicator RIA15 in order structure,
  Flooding protection tube,
  Different mounting possibilities

• Application limits

  FMR5x;
  Ammoniacal gas phase:
  FMR54 in stilling well;
  Strong build-up formation:
  FMR54 with air purge;
  Only PTFE resistant:
  FMR52;
  Custody transfer measurement:
  FMR5xx or NMR8x

Micropilot FMR20 offers continuous non-contact level and flow (via linearization table) measurement and is a perfect application fit for the water & wastewater industry and utilities across all industries. Commissioning is possible via HART or wireless via app using Bluetooth® or with remote display.

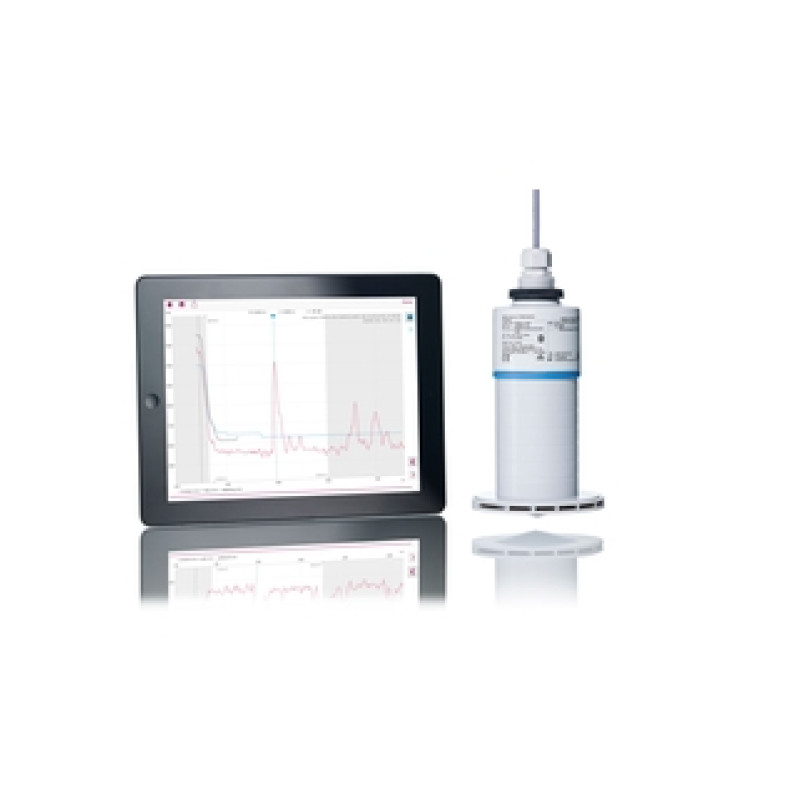

Signal curves can be shown via app on every Bluetooth®-enabled smartphone/tablet (iOS, Android). With the compact design, thanks to unique chip, the device is ideal for limited space applications.

Radar for continuous level measurement and flow measurement (with open channels or weirs, via linearization table).

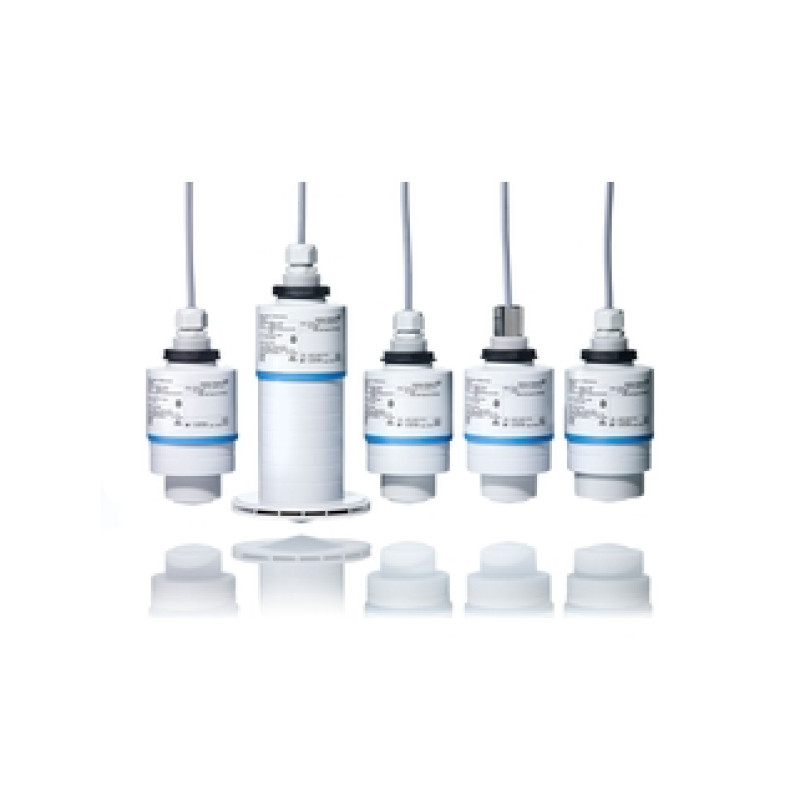

• Process connections: Threads, flange versions

• Process temperature: -40 to +80°C (-40 to +176°F)

• Process pressure: -1 to +3bar (-14.5 to +43psi)

• Max. measuring range: Liquids 20m (66ft), Solids 10m (33ft)

• Accuracy: Liquids ±2mm (0.08"), Solids ±5mm (0.2")

• Measuring frequency: 26GHz

• International explosion protection certificates

• Non-contact radar with commissioning via HART or wireless via Bluetooth® app or with remote display

• Most compact radar due to unique radar chip design offering perfect fit in limited space applications

• Best price-performance-ratio radar

• Perfect application fit for water & wastewater, mining, minerals & metals as well as utilities in all industries (IP66, 68 / NEMA4x, 6P)

• Full PVDF body to resist outdoor conditions, sealed wiring and fully potted electronics eliminates water ingress and allows operation under harsh environmental conditions

• Easy setup with three main parameters suits for most applications

• Simple, safe and secure wireless remote access via Bluetooth® – even in hazardous areas or places difficult to reach
