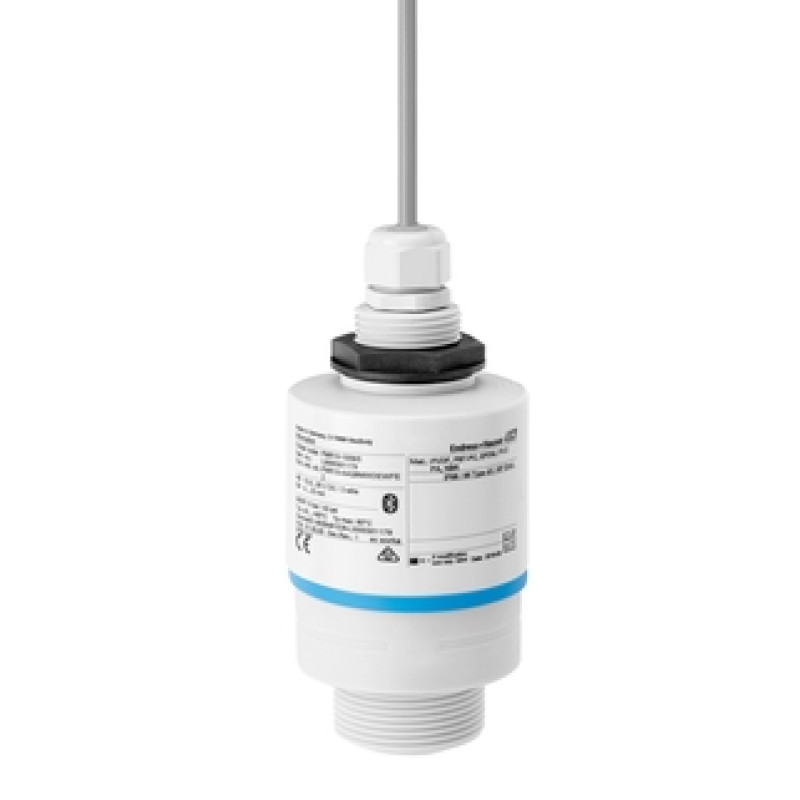

FMR10 Micropilot Radar measurement Time-of-Flight
- Brand: EH
- Product Code: FMR10
- Availability: In Stock
-
1,262.88€
- Ex Tax: 1,052.40€
-
Measuring principle
Level radar
-
Characteristic / Application
Simple applications in Water & Wastewater
Utility applications in all industries
Easy storage tanks -
Specialities
Bluetooth® commissioning,
Operation and maintenance via SmartBlue App -
Supply / Communication
2-wire (4…20 mA)
Bluetooth® wireless technology and App -
Frequency
K-band (~26 GHz)
-
Accuracy
+/- 5 mm (0,2")
-
Process temperature
-40…+60°C
(-40…+140°F) -
Process pressure / max. overpressure limit
-1…3 bar (-14,50…43 psi)
-
Main wetted parts
PVDF, PBT
-
Process connection
Thread:
G1", NPT1"; G1 1/2", NPT1 1/2" -
Max. measurement distance
Standard: 8 m (26.2 ft)
With flooding protection tube: 12 m (39.4 ft) -
Communication
Bluetooth® wireless technology
-
Certificates / Approvals
CSA C/US
-
Options
Flooding protection tube
Different mounting possibilities -
Application limits
DK < 4:
FMR5x;
Turbulent surfaces:
FMR5x;
Ammoniacal gas phase:
FMR54 in stilling well;
Strong build-up formation:
FMR54 with air purge;
Only PTFE resistant:
FMR52;
Custody transfer measurement:
FMR5xx or NMR8x
