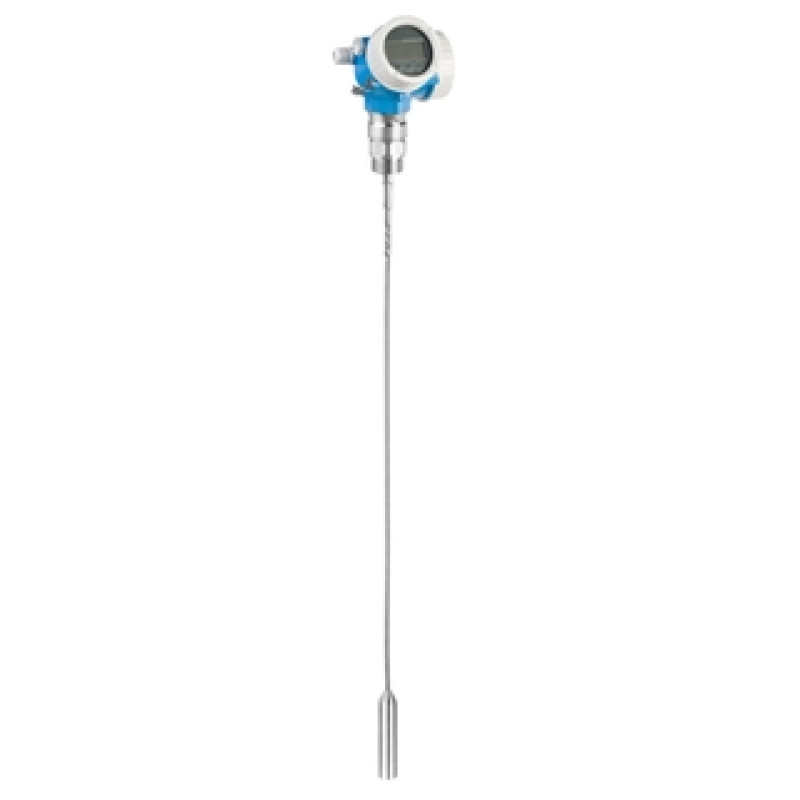

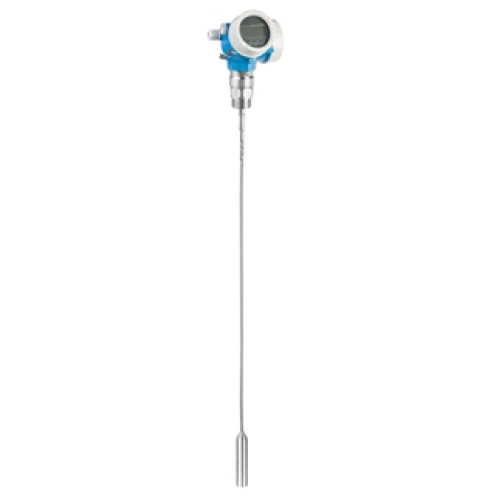

FMP57 Levelflex Guided radar measurement Time-of-Flight

The standard sensor for highest demands for level measurement in bulk solids

Previous: Levelflex M FMP40, Float Gauge LTC2230

• Measuring principle

  Guided radar

• Characteristic / Application

  Premium device for pulling forces up to 30kN
  Rod probe, Rope probe
  Integrated data memory. Factory precalibrated, Reliable measuring: in dusty atmosphere, in high + narrow silos, in vessels + obstacles.

• Specialities

  Heartbeat Technology,
  Bluetooth® commissioning,
  Operation and maintenance SmartBlue App,
  HistoROM,
  RFID TAG for easy identification

• Supply / Communication

  2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus),
  4-wire (HART),
  Bluetooth® wireless technology and App (optional)

• Accuracy

  Rod probe: +/- 2 mm (0.08 in)
  Rope probe <= 15 m (49ft):
  +/- 2 mm (0.08 in)
  Rope probe > 15 m (49ft):
  +/- 10 mm (0,39 in)

• Ambient temperature

  -40...+80 °C
  (-40...+176 °F)

• Process temperature

  -40...+150 °C
  (-40...+302 °F)

• Process pressure / max. overpressure limit

  Vacuum...16 bar
  (Vacuum...232 psi)

• Main wetted parts

  Rod probe:
  316Ti, 316L, PEEK, PPS
  Rope probe:
  304, 316, 316Ti, 316L, PEEK, PPS, PA

• Process connection

  Thread:
  G1 1/2, MNPT1 1/2
  Flange:
  ASME 1 1/2"...8",
  DN50...DN200,
  JIS 10K

• Sensor length

  Rod probe: 4 m (13 ft)
  Rope probe: 45 m (148 ft)

• Max. measurement distance

  Rod:
  4 m (13 ft) Min DK>1.4
  Rope:
  20 m...25 m (66 ft...82 ft) Min DK >1.4;
  25 m...30 m (82ft...98 ft) Min DK >1.6;
  30 m...45 m (98ft...148 ft) Min DK>1,9

• Communication

  4...20 mA HART
  PROFIBUS PA
  FOUNDATION Fieldbus
  Bluetooth® wireless technology

• Certificates / Approvals

  ATEX, FM, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, KC, EAC, UK Ex

• Safety approvals

  SIL

• Design approvals

  EN 10204-3.1

• Marine approval

  GL/ ABS/ LR/ BV/ DNV/ KR

• Options

  Sensor remote with 3 m/ 9 ft cable,
  Remote operation via SmartBlue App using Bluetooth®
