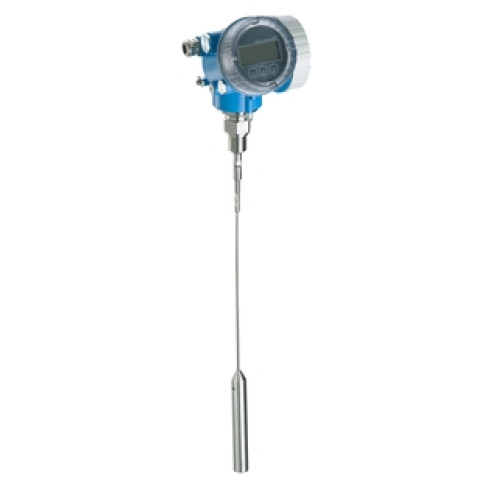

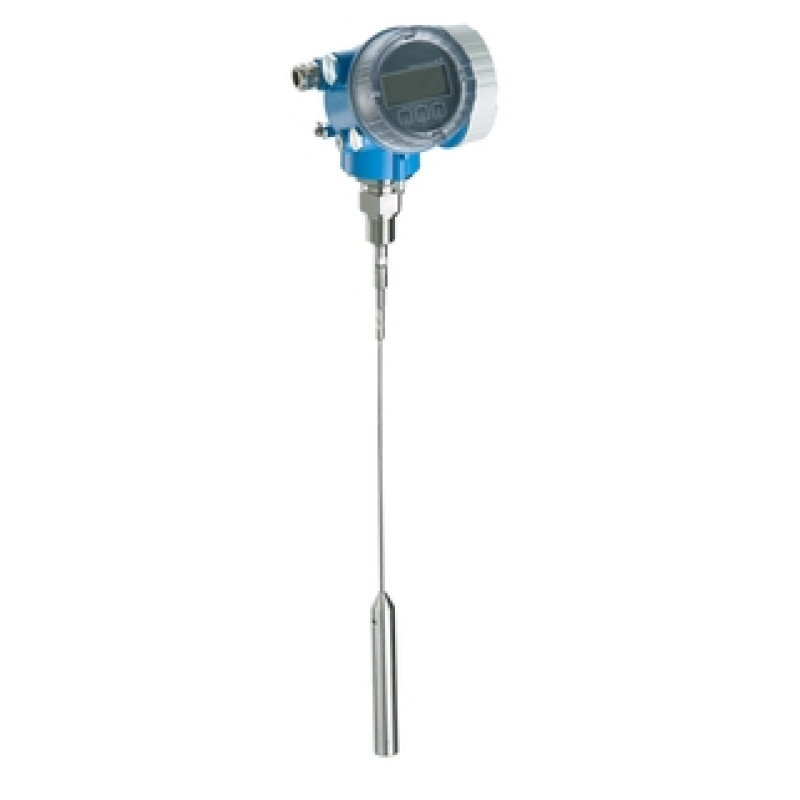

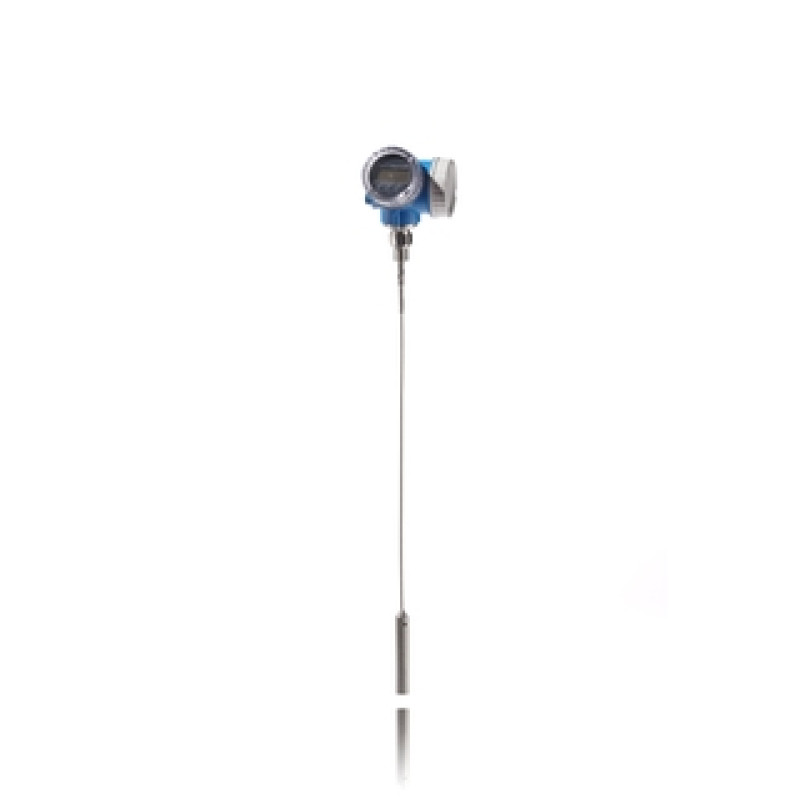

FMP56 Levelflex Guided radar measurement Time-of-Flight

Economically efficient basis model for all level applications in bulk solids

Previous: Levelflex M FMP40, Float Gauge LTC2230

• Measuring principle

  Guided radar

• Characteristic / Application

  Basic device for pulling forces up to 12 kN
  Rope probe
  Integrated data memory, Factory precalibrated, Reliable measuring: in dusty atmosphere, in high + narrow silos, in vessels + obstacles.

• Specialities

  Heartbeat Technology,
  Bluetooth® commissioning,
  Operation and maintenance SmartBlue App,
  HistoROM,
  RFID TAG for easy identification

• Supply / Communication

  2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus),
  4-wire (HART),
  Bluetooth® wireless technology and App (optional)

• Accuracy

  Rope probe: +/- 2 mm (0.08 in)

• Ambient temperature

  -40...+80 °C
  (-40...+176 °F)

• Process temperature

  –40...+120 °C
  (–40...+248 °F)

• Process pressure / max. overpressure limit

  Vacuum...16 bar
  (Vacuum...232 psi)

• Main wetted parts

  Rope probe:
  304, 316, 316Ti, 316L, PEEK, PPS, PA

• Process connection

  Thread:
  G 3/4, MNPT 3/4

• Sensor length

  Rope probe: 12 m (40 ft)

• Max. measurement distance

  Rope: 12 m (40 ft)
  Min DK >1.4

• Communication

  4...20 mA HART
  PROFIBUS PA
  FOUNDATION Fieldbus
  Bluetooth® wireless technology

• Certificates / Approvals

  ATEX, FM, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, KC, EAC, UK Ex

• Safety approvals

  SIL

• Options

  Sensor remote with 3 m/ 9 ft cable,
  Remote operation via SmartBlue App using Bluetooth®
