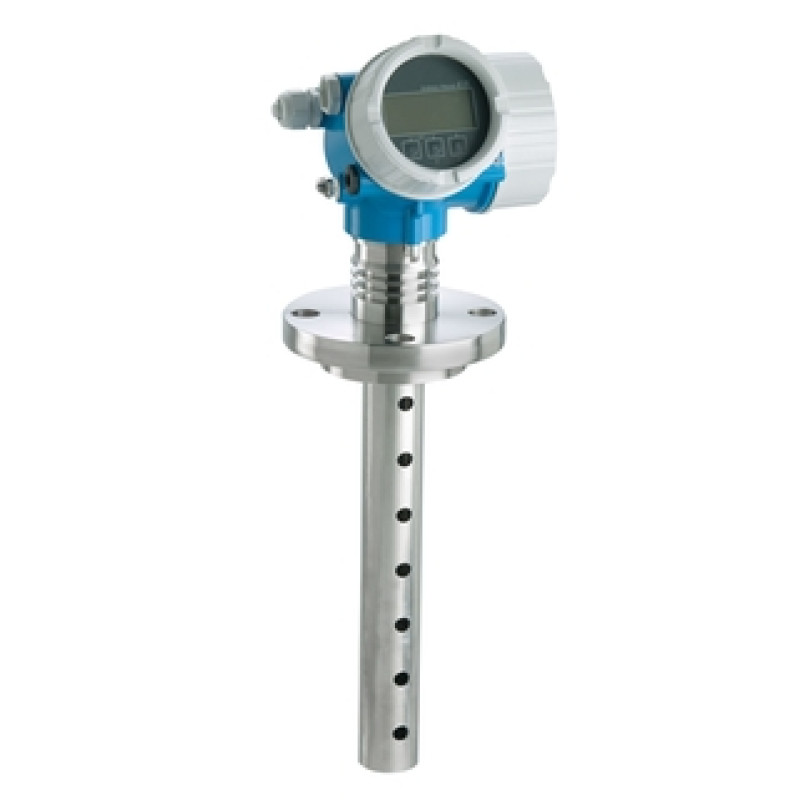

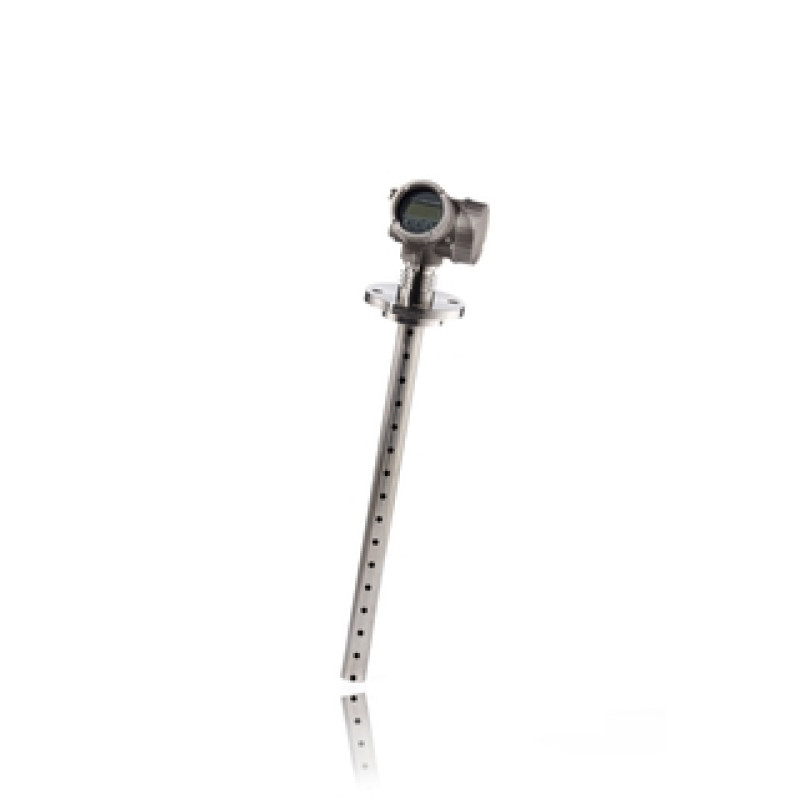

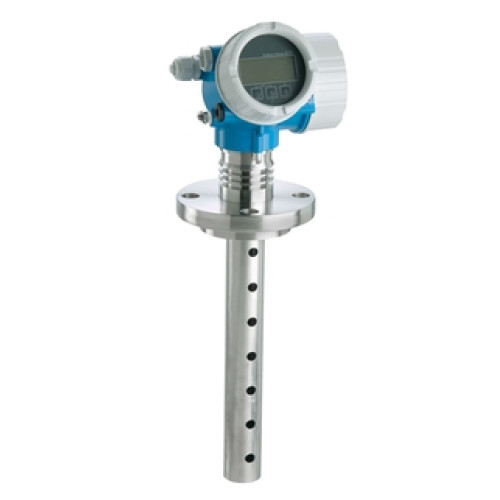

FMP55 Levelflex Guided radar measurement Time-of-Flight

The Multiparameter device is the innovation in interface measurement

Previous: Float Gauge LTC2230

• Measuring principle

  Guided radar

• Characteristic / Application

  Premium device Multiparameter (capacitance and guided radar)
  Rod probe, Rope probe, Coaxial probe
  Integrated data memory, Factory precalibrated, Reliable measuring: for interface with emulsion, in case of moved surface + foam, for changing medias.

• Interface measurement

  Interfaces liquid / liquid also with emulsion layers;
  Simultaneous measurement of interface and overall level

• Specialities

  Heartbeat Technology,
  Bluetooth® commissioning,
  Operation and maintenance SmartBlue App,
  HistoROM,
  RFID TAG for easy identification

• Supply / Communication

  2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
  4-wire (HART)
  Bluetooth® wireless technology and App (optional)

• Accuracy

  Rod probe :
  +/- 2 mm (0.08 in)
  Rope probe:
  +/- 2 mm (0.08 in)
  Coaxial probe:
  +/- 2 mm (0.08 in)

• Ambient temperature

  -40...+80 °C
  (-40...+176 °F)

• Process temperature

  -40...+200 °C
  (-40...+392 °F)

• Process pressure / max. overpressure limit

  Vacuum...40 bar
  (Vacuum...580 psi)

• Main wetted parts

  Rod probe:
  316L, PTFE, PFA
  Rope probe:
  316, 316L, PTFE, PFA
  Coaxial probe:
  316L, PTFE, PFA

• Process connection

  Flange:
  ASME 1 1/2"...6",
  DN50...DN150,
  JIS 10K

• Sensor length

  Rod probe: 4 m (13 ft)
  Rope probe: 10 m (33 ft)
  Coaxial probe: 6 m (20 ft)

• Max. measurement distance

  Rod: 4 m (13 ft)
  Min DK >1.4
  Rope: 10 m (33 ft)
  Min DK >1.4
  Coaxial: 6 m (20 ft)
  Min DK >1.4

• Communication

  4...20 mA HART
  PROFIBUS PA
  FOUNDATION Fieldbus
  Bluetooth® wireless technology

• Certificates / Approvals

  ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, KC, EAC, JPN Ex, UK Ex

• Safety approvals

  SIL

• Design approvals

  EN 10204-3.1
  NACE MR0175, MR0103
  ASME B31.1, B31.3
  AD2000

• Marine approval

  GL/ ABS/ LR/ BV/ DNV/ KR

• Options

  Sensor remote with 3 m/ 9 ft cable,
  Remote operation via SmartBlue App using Bluetooth®
