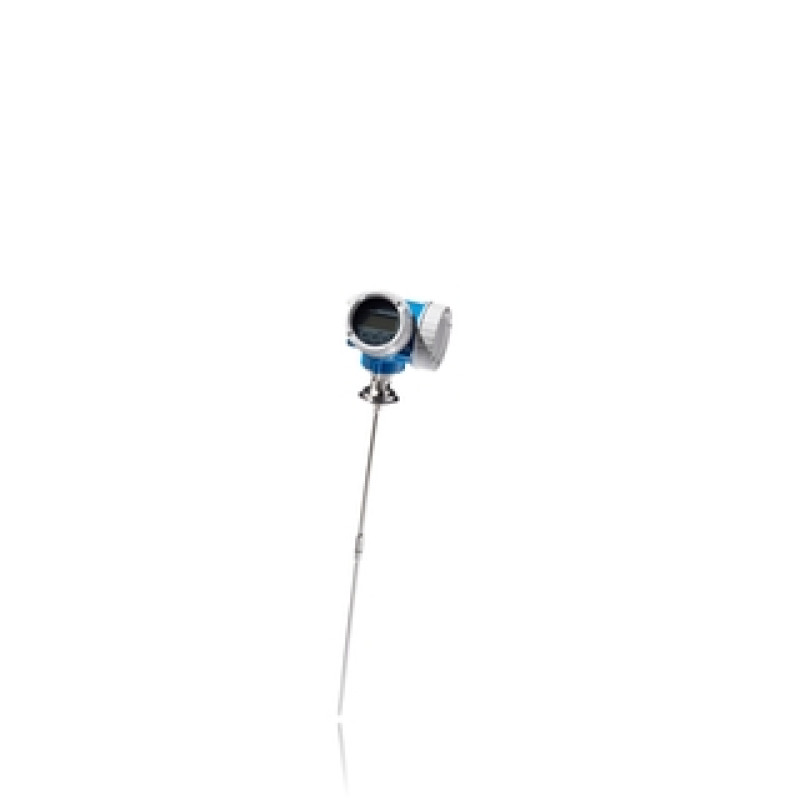

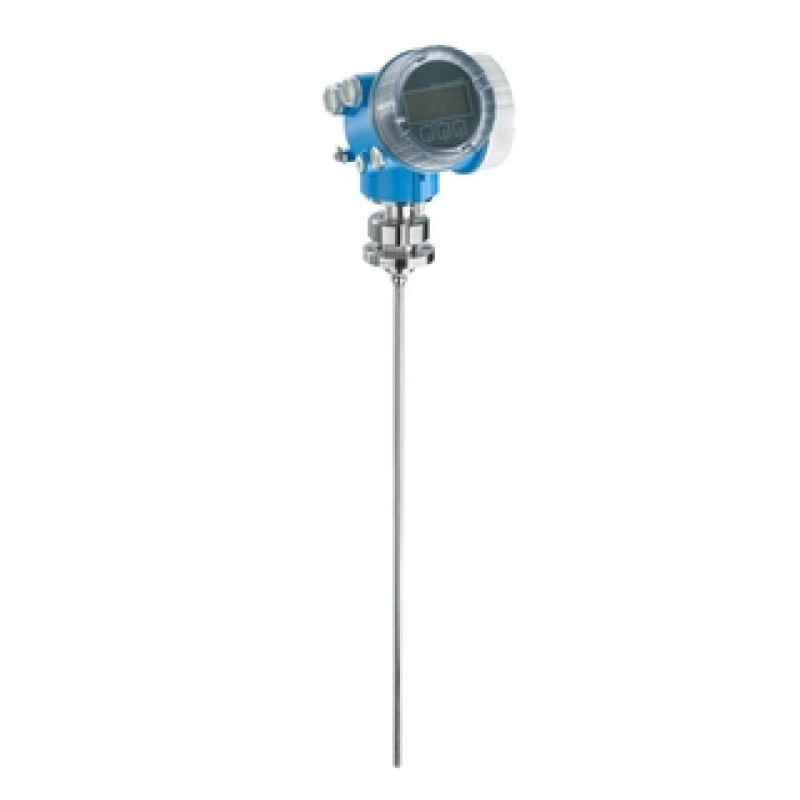

FMP53 Levelflex Guided radar measurement Time-of-Flight

For the highest hygiene requirements in the food and life sciences industry

Previous: Levelflex M FMP43, Float Gauge LTC2230

• Measuring principle

  Guided radar

• Characteristic / Application

  Premium device. Hygiene
  Rod probe,
  ASME BPE + USP Class VI compliant, Integrated data memory, Factory precalibrated, Reliable measuring: in case of moved surface + foam, for changing medias, for filling via spray head.

• Specialities

  Heartbeat Technology,
  Bluetooth® commissioning,
  Operation and maintenance SmartBlue App,
  HistoROM,
  RFID TAG for easy identification

• Supply / Communication

  2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
  4-wire (HART)
  Bluetooth® wireless technology and App (optional)

• Accuracy

  Rod probe:+/- 2 mm (0.08 in)

• Ambient temperature

  -20...+80 °C
  (-4...+176 °F)

• Process temperature

  -20...+150 °C
  (-4...+302 °F)

• Process pressure / max. overpressure limit

  Vacuum...16 bar
  (Vacuum...232 psi)

• Main wetted parts

  Rod probe:
  304, 304L, 316L, PEEK

• Process connection

  Thread:
  M24

• Process connection hygienic

  Tri-Clamp
  DIN11851
  DIN11864-1
  NEUMO
  Varivent N
  SMS

• Sensor length

  Rod probe: 6 m (20 ft)

• Max. measurement distance

  Rod: 6 m (20 ft)
  Min DK>1.6

• Communication

  4...20 mA HART
  PROFIBUS PA
  FOUNDATION Fieldbus
  Bluetooth® wireless technology

• Certificates / Approvals

  ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, KC, EAC, UK Ex

• Safety approvals

  Overfill protection WHG
  SIL

• Design approvals

  EN 10204-3.1

• Hygienic approvals

  3A, EHEDG
  CoC ASME-BPE

• Options

  Sensor remote with 3 m/9 ft or 6 m/18 ft cable,
  Weld-in adpater,
  Remote operation via SmartBlue App using Bluetooth®

• Application limits

  Application limits
