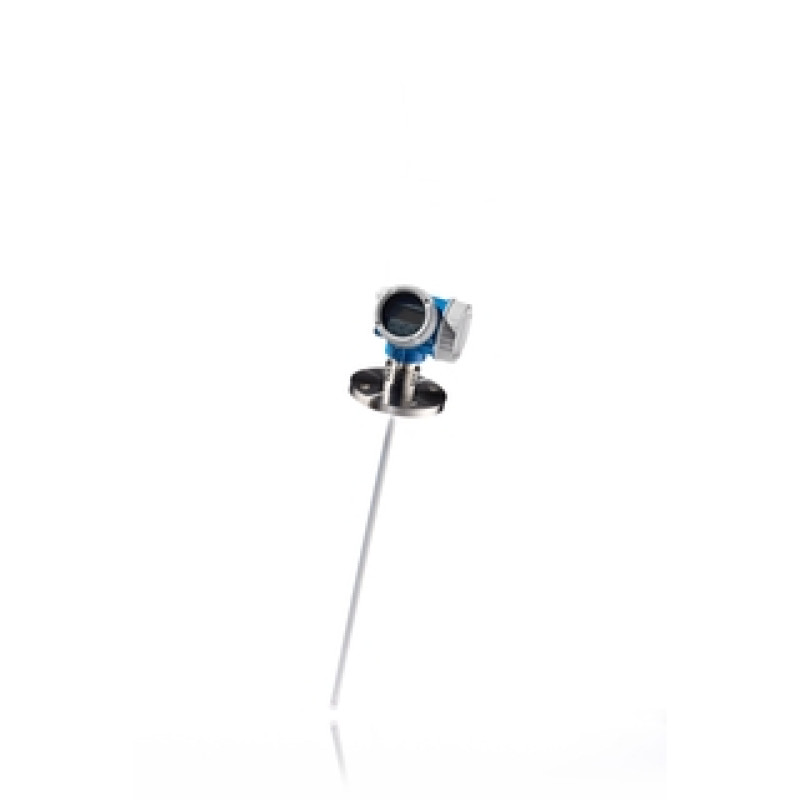

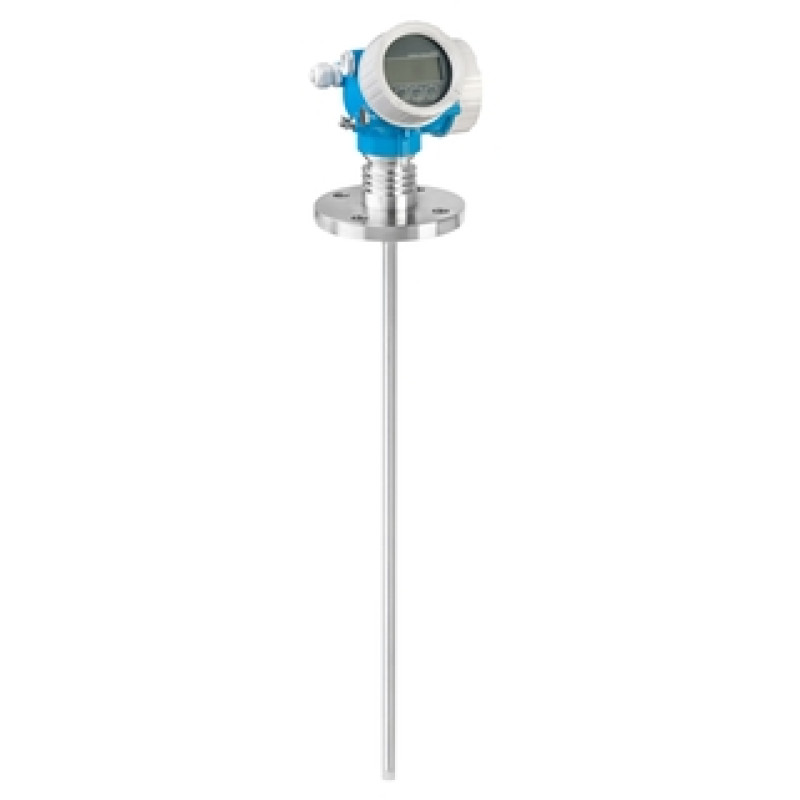

FMP52 Levelflex Guided radar measurement Time-of-Flight

Coated probe for use in aggressive liquids

Previous: Levelflex M FMP41C, Float Gauge LTC2230

• Measuring principle

  Guided radar

• Characteristic / Application

  Premium device coated for corrosive media
  Rod probe, Rope probe
  Wetted parts FDA listed materials, Integrated data memory, Factory precalibrated, Reliable measuring: in case of moved surface + foam, for changing medias.

• Interface measurement

  Clean interfaces liquid/ liquid;
  Simultaneous measurement of interface and overall level

• Specialities

  Heartbeat Technology,
  Bluetooth® commissioning,
  Operation and maintenance SmartBlue App,
  HistoROM,
  RFID TAG for easy identification

• Supply / Communication

  2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
  4-wire (HART)
  Bluetooth® wireless technology and App (optional)

• Accuracy

  Rod probe :+/- 2 mm (0.08 in)
  Rope probe <= 15 m (49 ft):
  +/- 2 mm (0.08 in)
  Rope probe > 15 m (49 ft):
  +/- 10 mm (0.39 in)

• Ambient temperature

  -40...+80 °C
  (-40...+176 °F)

• Process temperature

  -50...+200 °C
  (-58...+392 °F)

• Process pressure / max. overpressure limit

  Vacuum...40 bar
  (Vacuum...580 psi)

• Main wetted parts

  Rod probe:
  304, 304L, 316L, PTFE, PFA
  Rope probe:
  304, 304L, 316, 316L, PTFE, PFA

• Process connection

  Flange:
  ASME 1 1/2"...6",
  DN50...DN100,
  JIS 10K

• Process connection hygienic

  Tri-Clamp
  DIN11851

• Sensor length

  Rod probe: 4 m (13 ft)
  Rope probe: 45 m (148 ft)

• Max. measurement distance

  Rod:
  4 m (13 ft) Min DK>1.6
  Rope:
  25 m...30 m (82 ft...98 ft) Min DK>1.6;
  30 m...45 m (98 ft...148 ft) Min DK>1,9

• Communication

  4...20 mA HART
  PROFIBUS PA
  FOUNDATION Fieldbus
  Bluetooth® wireless technology

• Certificates / Approvals

  ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, KC, EAC, JPN Ex, UK Ex

• Safety approvals

  Overfill protection WHG
  SIL

• Design approvals

  EN 10204-3.1
  ASME B31.1, B31.3
  AD2000

• Hygienic approvals

  3A, EHEDG

• Marine approval

  GL/ ABS/ LR/ BV/ DNV

• Options

  Sensor remote with 3 m/ 9 ft cable,
  Gas-tight feed through,
  Remote operation via SmartBlue App using Bluetooth®
