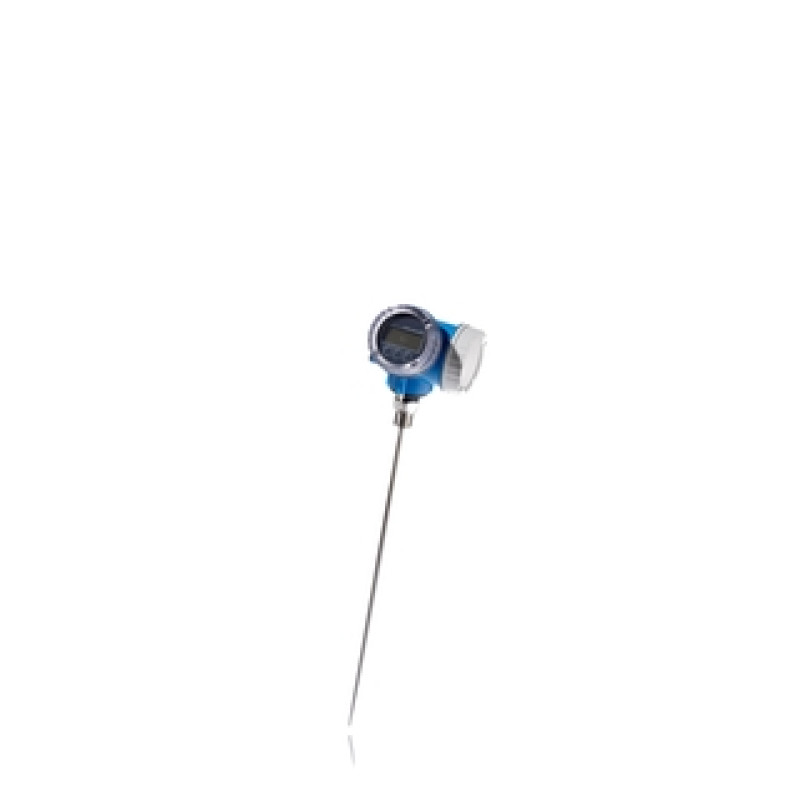

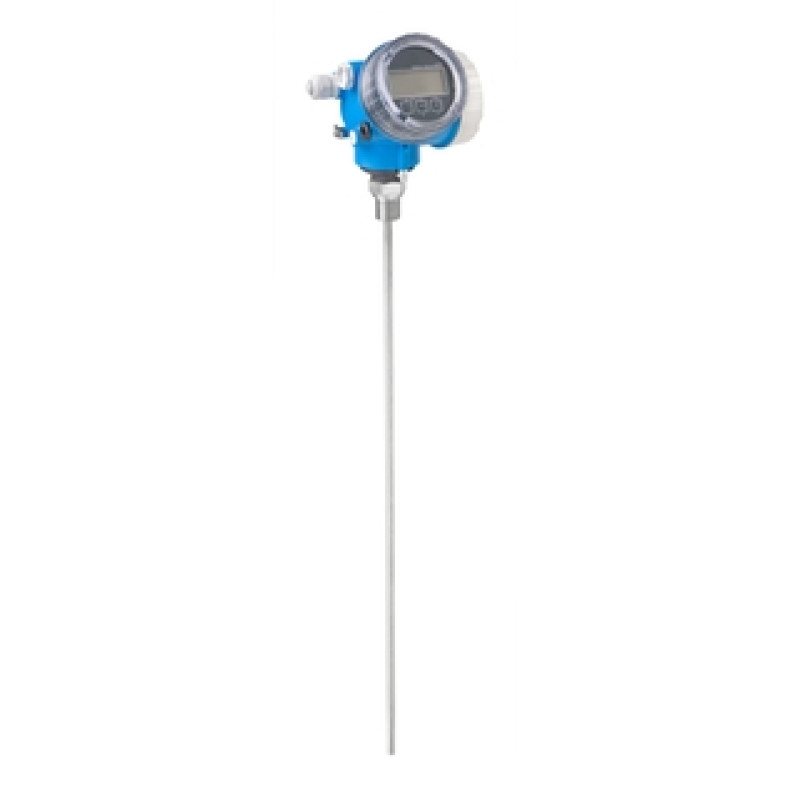

FMP50 Levelflex Guided radar measurement Time-of-Flight

For all basic level applications in liquids

Previous: Levelflex M FMP40, Float Gauge LTC2230

• Measuring principle

  Guided radar

• Characteristic / Application

  Basic device
  Rod probe, Rope probe
  Integrated data memory, Factory precalibrated, Reliable measuring for changing medias.

• Specialities

  Heartbeat Technology,
  Bluetooth® commissioning,
  Operation and maintenance SmartBlue App,
  HistoROM,
  RFID TAG for easy identification

• Supply / Communication

  2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
  4-wire (HART)
  Bluetooth® wireless technology and App (optional)

• Accuracy

  Rod probe: +/- 2 mm (0.08 in)
  Rope probe: +/- 2 mm (0.08 in)

• Ambient temperature

  -20...+80 °C
  (-4...+176 °F)

• Process temperature

  -20...+80 °C
  (-4...+176 °F)

• Process pressure / max. overpressure limit

  Vacuum...6 bar,
  (Vacuum...87 psi)

• Main wetted parts

  Rod probe: 316L, PPS, Viton
  Rope probe: 316, PPS, Viton

• Process connection

  Thread:
  G 3/4, MNPT 3/4
  Flange:
  UNI Flange

• Sensor length

  Rod probe: 4 m (13 ft)
  Rope probe: 12 m (40 ft)

• Max. measurement distance

  Rod: 4 m (13 ft) Min DK>1.6
  Rope: 12 m (40 ft) Min DK>1.6

• Communication

  4...20 mA HART
  PROFIBUS PA
  FOUNDATION Fieldbus
  Bluetooth® wireless technology

• Certificates / Approvals

  ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, KC, EAC, UK Ex

• Safety approvals

  Overfill protection WHG
  SIL

• Design approvals

  EN 10204-3.1

• Options

  Sensor remote with 3 m/ 9 ft cable,
  Remote operation via SmartBlue App using Bluetooth®

• Application limits

  Application limits

Levelflex FMP50 is the instrument for basic applications in liquids which do not place high demands on temperature and pressure ranges or chemical resistance. Particularly in basic supply or storage applications as well as utility processes FMP50 is the best choice. Levelflex FMP50 guided radar is used for continuous level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Version with rod or rope probe.

• Process connections: Thread or adapter flange

• Temperature: -20 to +80°C (-4 to +176°F)

• Pressure: -1 to +6bar (-14.5 to +87psi)

• Maximum measuring range: Rod 4m (13ft), rope 12m (39ft)

• Accuracy: ±2mm (0.08")

• International explosion protection certificates, overfill prevention WHG, SIL, 5-point linearity protocol

• Reliable measurement even for changing product and process conditions

• HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

• Highest reliability due to new Multi-Echo Tracking evaluation

• Hardware and software developed according to IEC 61508 up to SIL3

• Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle

• Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)

• World's easiest proof test for SIL and WHG saves time and costs
