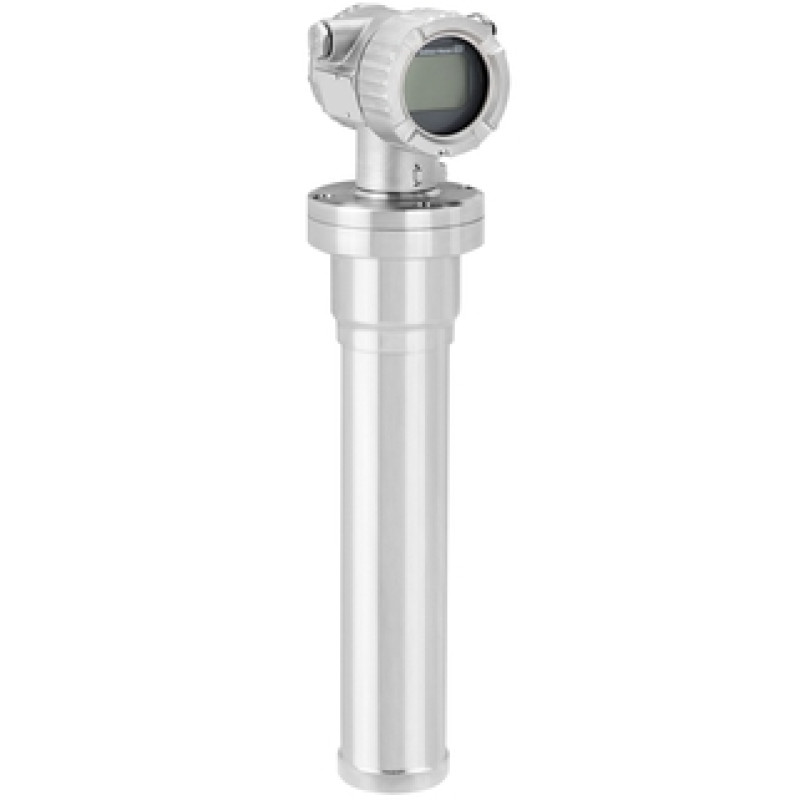

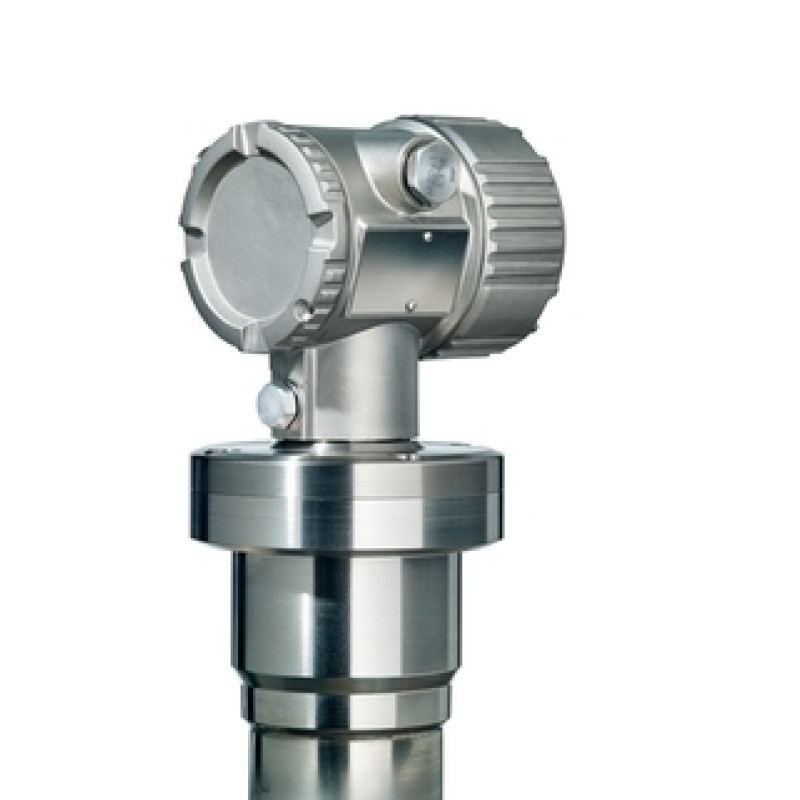

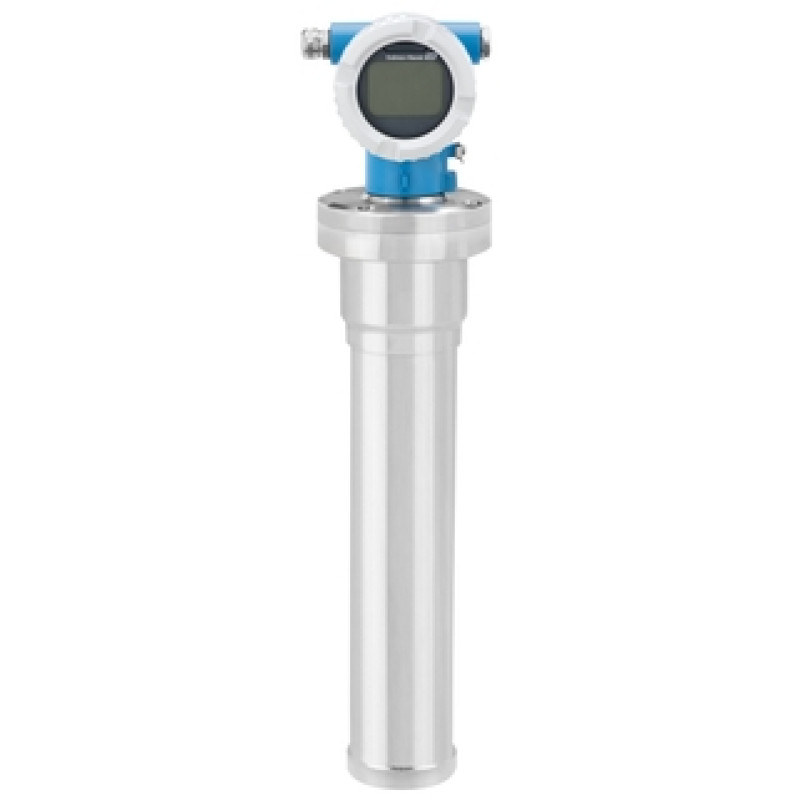

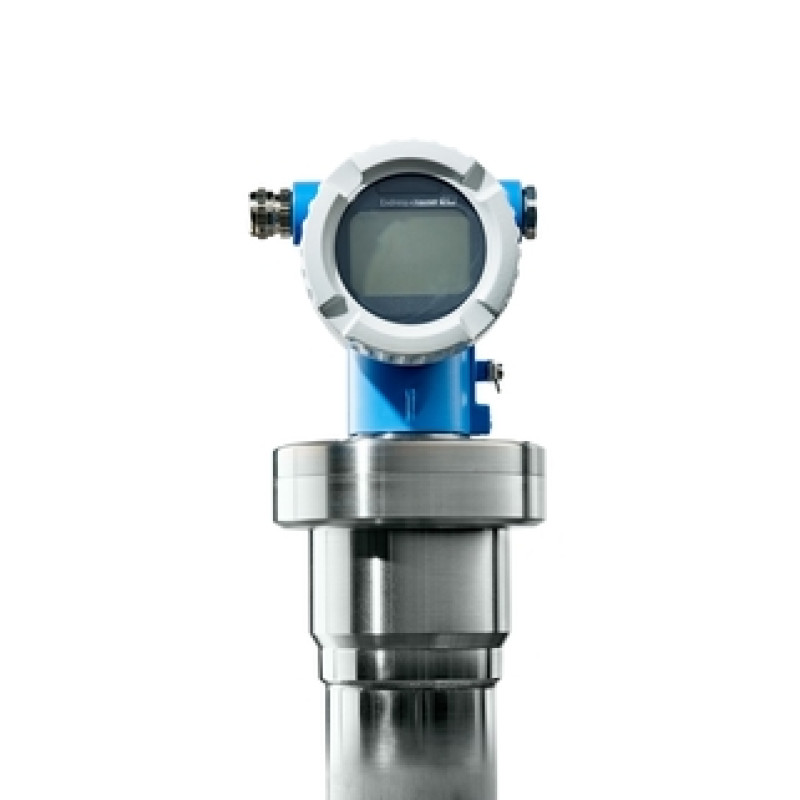

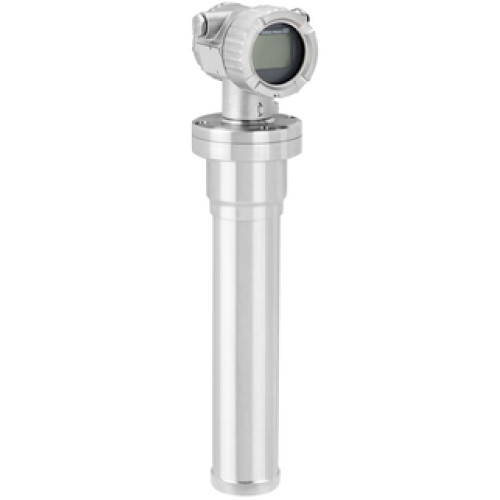

FMG50 Gammapilot Radiometric level and density measurement

Compact transmitter for point level detection, continuous level, interface and density measurement

Previous: Gammapilot M FMG60

• Measuring principle

  Radiometric

• Characteristic / Application

  Compact transmitter for extreme process conditions (temperature, pressure);
  Non-contact measuring technique

• Interface measurement

  Interfaces liquid / liquid also with emulsion layers
  Interfaces liquid / solid

• Specialities

  Heartbeat Technology,
  SIL 2/3 according to IEC 61508,
  Bluetooth® commissioning, operation and maintenance with the SmartBlue App

• Supply / Communication

  2-wire loop powered

• Accuracy

  +/-1%

• Ambient temperature

  -40 °C...+80 °C,
  (-40 °F...+176 °F)

• Process temperature

  Any

• Process pressure / max. overpressure limit

  Any

• Main wetted parts

  Non-contact

• Process connection

  Non-contact

• Sensor length

  PVT scintillator
  400 mm...3000 mm,
  >3000 mm cascade mode

• Max. measurement distance

  Unlimited measuring range,
  Cascade

• Communication

  4...20 mA HART

• Certificates / Approvals

  ATEX, IEC Ex, CSA C/US, NEPSI, INMETRO, EAC Ex, JPN Ex, KC Ex

• Safety approvals

  Overfill protection WHG
  SIL 2/3

• Design approvals

  EN 10204-3.1

• Options

  Display

• Components

  Isotope: FSG60, FSG61,
  Source container: FQG60, FQG61, FQG62, FQG63, FQG66,
  Mounting accessories: FHG61

The Gammapilot FMG50 compact transmitter is designed for non-contact point level detection, continuous level, interface and density measurement in liquids, solids, suspensions or sludges. As the first true 2-wire loop powered compact transmitter it minimizes engineering and installation efforts.

• For all kinds of process vessels, like reactors, autoclaves, separators, acid tanks, cyclones

• For liquids, solids, suspensions or sludges etc.

• Extreme measuring conditions, for example corrosion, abrasion, viscosity, toxicity

• Process temperature: No limitation (non-invasive)

• Process pressure: No limitation (non-invasive)

• Housing material: 316L, aluminum

• International explosion protection certificates, SIL, overfill prevention WHG

• First real 2-wire loop-powered compact transmitter minimizes engineering and installation efforts

• Reduced installation and engineering costs thanks to the first 2-wire loop powered compact transmitter

• Increased plant safety, efficiency and availability even under extreme process and ambient conditions

• Designed according to IEC 61508 with SIL2/3 approval for all measuring tasks

• Reduced verification effort and minimized plant shut-downs due to state-of-art Heartbeat Technology

• Usage in up to +80°C (+176°F) ambient temperature without additional cooling thanks to innovative sensor technology

• Bluetooth® wireless technology for remote operation out of the radiation beam
