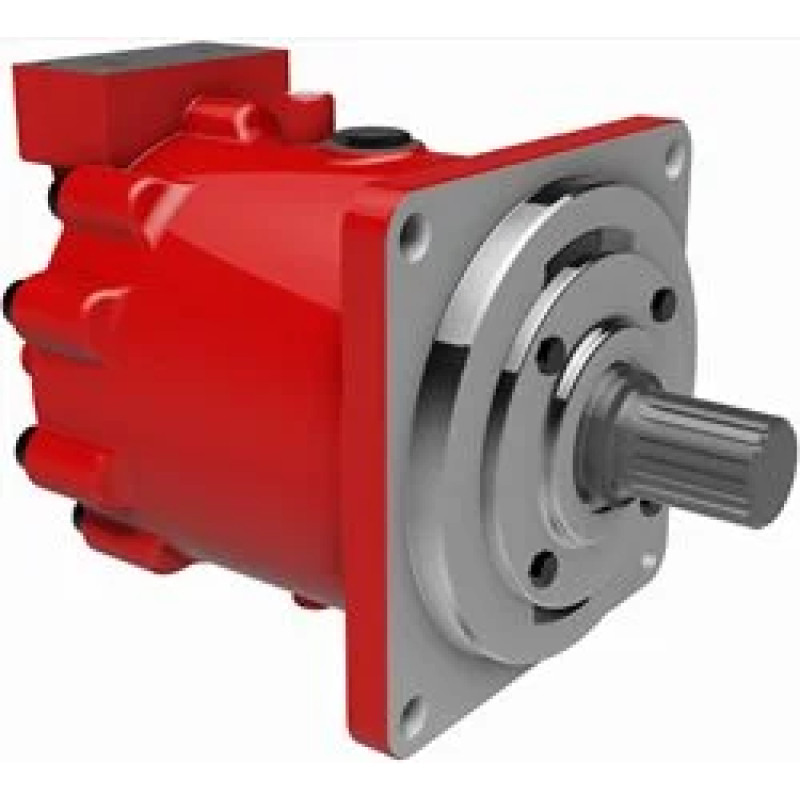

The M3X and M3B series are swash plate type axial piston motors in fixed (M3X) and variable (M3B) displacement versions. They are used extensively in mobile crusher drives, cranes and drill rigs.

200, 280, 530 and 800cc displacements
300 bar continuous pressure rating
Constant horsepower control option
Available with parking brake

Model	Displacement		Pressure				Speed	Rated Torque		Weight
			psi		bar		rpm
	cm3	in3	Rated	Max	Rated	Max	Max	lb-ft	N-m	lb	kg
M3X200	195	11.9	4300	5000	294	343	1900	671	910	93	42
M3X280	280	17.1	4300	5000	294	343	1700	966	1310	137	62
M3X530	533	32.5	4300	5000	294	343	1400	1840	2500	199	90
M3X800	800	48.8	4300	5000	294	343	1200	2760	3750	294	133

Model	Displacement						Pressure				Speed		Rated Torque		Weight
	cm3			in3			psi		bar		rpm
	100%	50%	33%	100%	50%	33%	Rated	Max	Rated	Max	100%	50%/33%	lb-ft	N-m	lb	kg
M3B200	195	106	–	11.9	6.47	–	4600	5000	320	350	1900	2930	730	990	159	72
M3B280	280	140	93	17.1	8.5	5.7	4350	5000	300	350	1700	2200	988	1340	205	93
M3B530	533	267	178	32.5	16.3	10.9	4250	5000	294	343	1400	1700	1840	2500	324	147
M3B800	800	400	267	48.8	24.4	16.3	4250	5000	294	343	1200	1500	2760	3750	518	235

Model	Displacement		Pressure		Speed	Rated Torque		Weight
			psi	bar	rpm
	cm3	in3	Max	Max	Max	lb-ft	N-m	lb	kg
M3X200-RG03S5.7	840	51.3	3200	225	270	2161	2930	216	98
M3X280-RG06S6.4	1610	98.2	3000	207	190	3894	5280	331	150
M3B280-RG06S6.4	1610	98.2	3000	207	190	3894	5280	331	150
M3X530-RG11S5.7	3010	183.7	3000	207	150	7280	9870	536	243
M3B530-RG11S5.7	3010	183.7	3000	207	150	7280	9870	536	243
M3X800-RG16S6.4	5120	312.4	2800	197	130	11801	16000	926	420
M3B800-RG16S6.4	5120	312.4	2800	197	130	11801	16000	926	420
