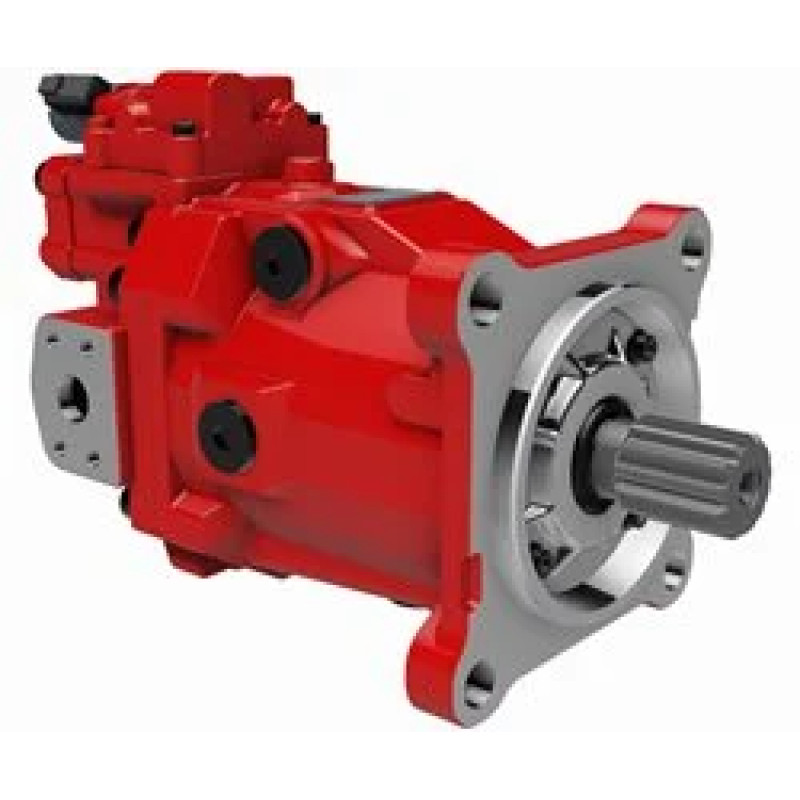

M7V/M7X Axial Piston Motors
- Brand: Kawasaki
- Product Code: M7V/M7X
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
The M7V series is a high speed variable displacement swash plate type axial piston motor. It is suitable for, but not limited to, use in hydrostatic transmissions, drill rigs and crane winch systems.
- 85, 112, 160 and 212cc displacements
- 400 bar continuous pressure rating
- Electronic and hydraulic displacement control
- Fixed displacement version available
- Compact design
 |
| Model | Displacement | Pressure | Speed | Rated Torque | Weight | |||||||||||
| in3 | cm3 | psi | bar | rpm | lb-ft | N-m | ||||||||||
| Min | Max | Min | Max | Rated | Max | Rated | Max | Max | Min | Max | Min | Max | Min | lb | kg | |
| M7V85 | 0 | 5.4 | 0 | 88.5 | 5800 | 6525 | 400 | 450 | 3900 | 6150 | 399 | 0 | 541 | 0 | 86 | 39 |
| M7V112 | 0 | 6.8 | 0 | 112 | 5800 | 6526 | 400 | 450 | 3550 | 5600 | 526 | 0 | 713 | 0 | 101 | 46 |
| M7V160 | 0 | 9.8 | 0 | 160 | 5800 | 3988 | 400 | 275 | 3100 | 4900 | 752 | 0 | 1019 | 0 | 139 | 63 |
 |
| Model | Displacement | Pressure | Speed | Rated Torque | Weight | ||||||
| psi | bar | rpm | |||||||||
| in3 | Rated | Max | Rated | Max | Max | lb-ft | N-m | lb | kg | ||
| M7X85 | 90 | 5800 | 6525 | 400 | 450 | 4500 | 423 | 573 | 57.33 | 26 | |
| M7X112 | 112 | 5800 | 6525 | 400 | 450 | 3550 | 526 | 713 | 74.97 | 34 | |
| M7X160* | 160 | 5800 | 3988 | 400 | 275 | 3100 | 752 | 1019 | — | — | |
