FTL51B Liquiphant - digital, simple and safe

Point level switch for all liquid media

Previous: Liquiphant M FTL51, Liquiphant M FTL50

• Measuring principle

  Vibration Liquids

• Characteristic / Application

  Compact vibronic device with an optional pipe extension up to 6 m (19.7 ft);
  Modular housing concept;
  Wide range of certificates

• Specialities

  Heartbeat Technology,
  Bluetooth® Operation and maintenance SmartBlue App,

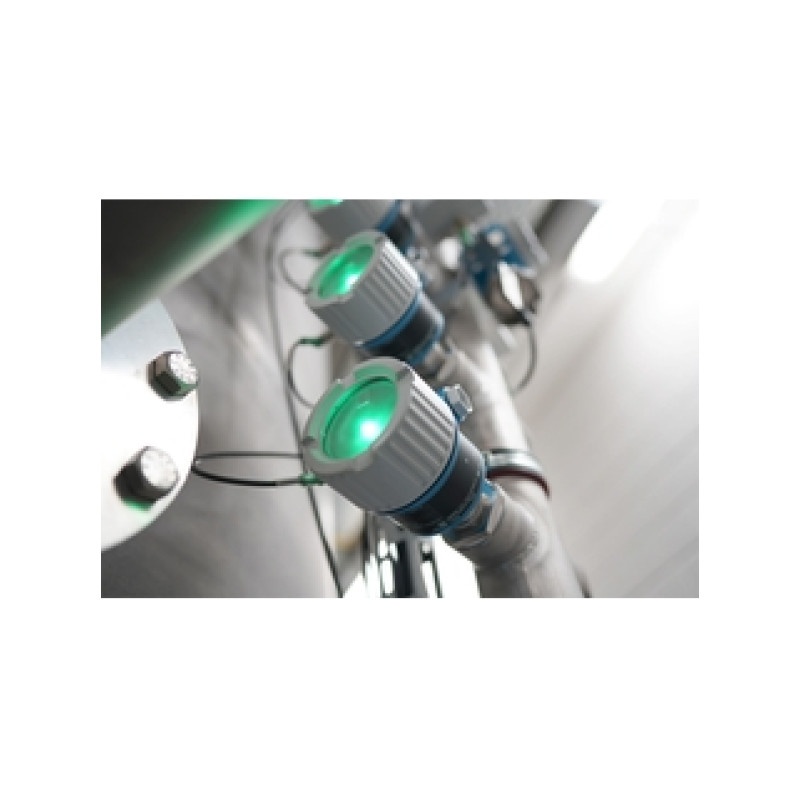

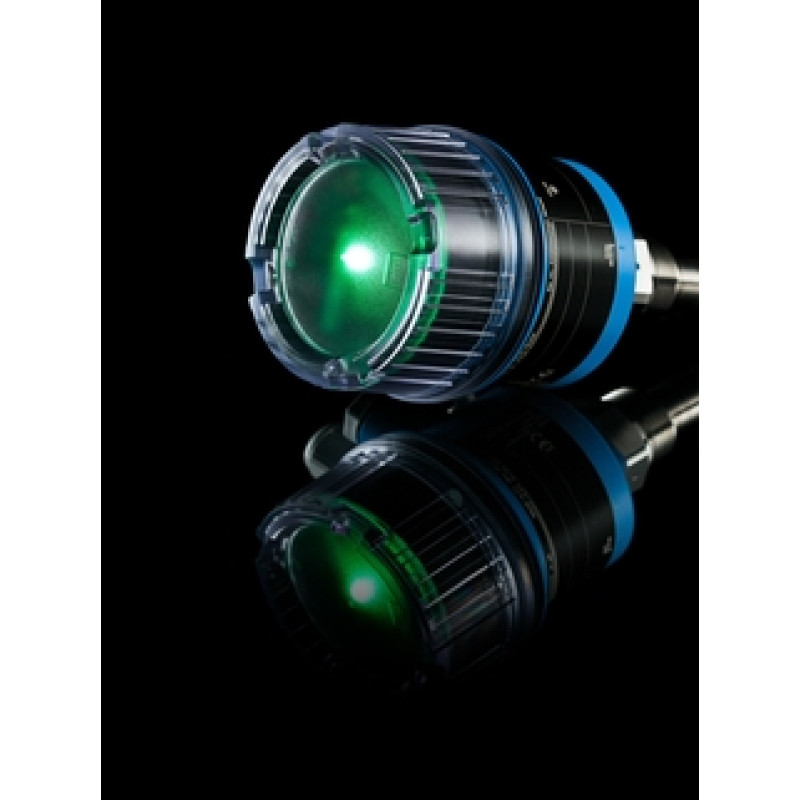

  LED Module,
  RFID TAG for easy identification,
  Second line of defense,
  Ambient temperature down to -50°C (-60°C optional),
  Temperature spacer for high process temperature,
  Plug and play functionalities

• Supply / Communication

  19...253V AC / 2-wire,
  10...55V / DC-PNP 3-wire,
  9...20V DC with relay DPDT,
  19...253V AC or 19...55V DC with relay DPDT,
  2-wire NAMUR,
  2-wire PFM,
  4-20mA HART

• Ambient temperature

  -60 °C...+70 °C
  (-51 °F...+158 °F)

• Process temperature

  -50 °C...+150 °C
  (-58 °F...+302 °F)

• Process pressure / max. overpressure limit

  Vacuum...100 bar
  Vacuum...1450 psi

• Min. density of medium

  0.5 g/cm³
  (0.4 g/cm³ optional)

• Main wetted parts

  316L
  Alloy

• Process connection

  Threads:
  G3/4A, G1A, R3/4", R1, NPT3/4, NPT1
  Flanges:
  DN25...DN100
  ASME 1"...4"
  JIS 25A...100A

• Process connection hygienic

  Tri-Clamp ISO2852

• Sensor length

  Up to 6 m (19.7 ft)

• Communication

  2-wire direct load
  HART
  DC-PNP 3-wire
  Relays
  NAMUR
  PFM
  Bluetooth® wireless technology

• Certificates / Approvals

  ATEX, IEC Ex, CSA, NEPSI, KC, JPN Ex, INMETRO

• Safety approvals

  Overfill protection WHG
  SIL2/ SIL 3 according to IEC 61508

• Design approvals

  EN 10204-3.1
  NACE MR0175, MR0103
  ASME B31.3 Process Piping
  AD2000
  CRN
  AD 2000

• Marine approval

  ABS/ LR/ BV/ DNV GL

• Options

  Heavy duty stainless steel housing

• Components

  FTL325P Interface PFM
  FTL325N Interface NAMUR

• Measuring principle

  Vibration Density

• Product Headline

  Vibronic point level switch with optional extension tube for liquid applications in hazardous areas .
  Reliable measurement values not affected by: changing media properties, gas bubbles, foam, build-up, flow or turbulences.

• Characteristic / Application

  Compact vibronic device with an optional pipe extension up to 6 m (19.7 ft),
  Modular housing concept,
  Wide range of certificates

• Ambient temperature

  -60 °C...+70 °C
  (-51 °F...+158 °F)

• Process temperature

  -50 °C...+150 °C
  (-58 °F...+302 °F)

• Process pressure

  Vacuum...100 bar
  Vacuum...1450 psi

• Wetted parts

  316L
  Alloy

• Sensor length

  Up to 6 m (19.7 ft)

• Certificates / Approvals

  ATEX, IEC Ex, CSA, NEPSI, KC, JPN Ex, INMETRO

• Specialities

  Heartbeat Technology,
  Bluetooth® Operation and maintenance SmartBlue App,
  LED Module,
  RFID TAG for easy identification,
  Second line of defense,
  Ambient temperature down to -50°C (-60°C optional),
  Temperature spacer for high process temperature,
  Plug and play functionalities

• Components

  Density Computer FML621

• Measuring range

  Density range: 0.3 to 2 g/cm³

• Other approvals and certificates

  Overfill protection WHG
  SIL2/ SIL 3 according to IEC 61508

The Liquiphant FTL51B is specialized for the process industry and developed to be used directly in SIL2 and SIL3 applications. You conduct periodic proof tests according to SIL or WHG mobile with an intuitive wizard. At the end you receive an automated documentation. Liquiphant measures reliably and is not affected by changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up. The device is easy to use, has a digital connection and gives real-time data at hand.

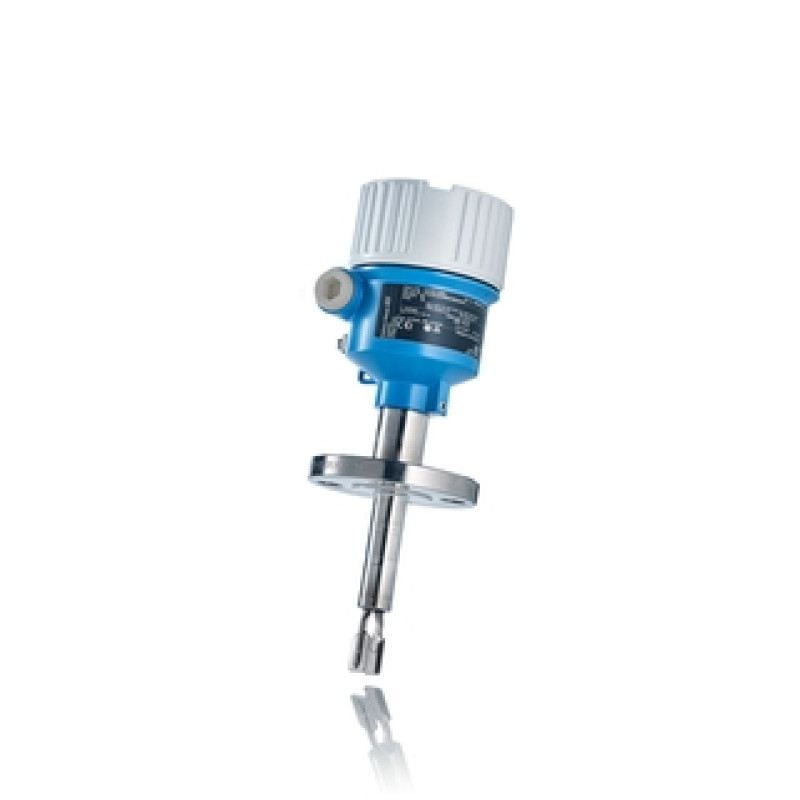

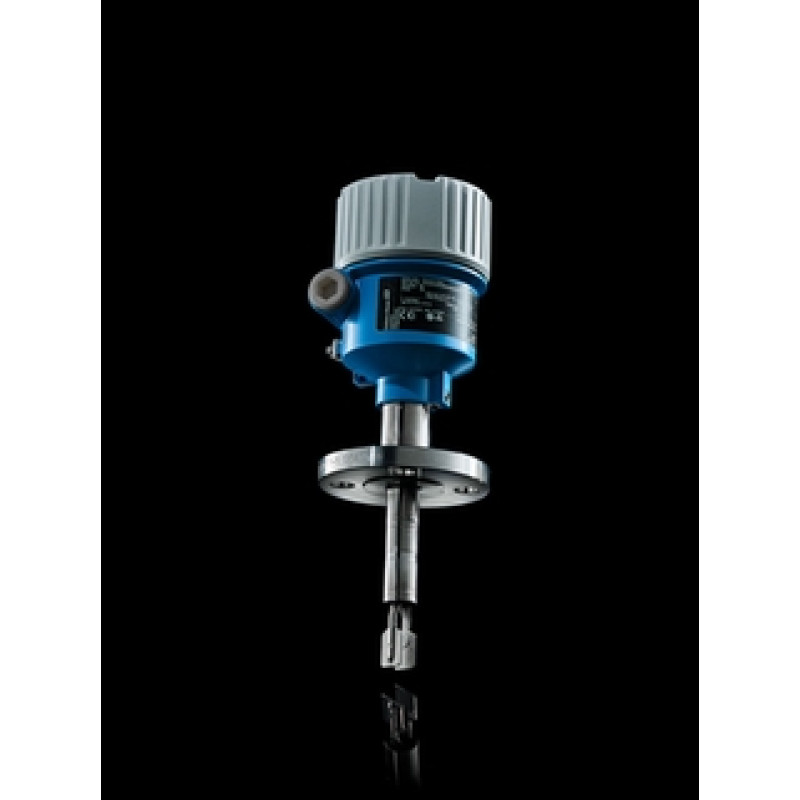

Point level switch with extension tube for all liquids

• Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)

• Temperature: -50 to +150°C (-58 to +302°F)

• Pressure: -1 to +100bar (-14.5 to +1450psi)

• Sensor material: 316L, Alloy

• International explosion protection certificates, overfill protection WHG, SIL, marine approvals

• Universal measuring principle for limit detection – proven vibronic technology

• Developed according IEC 61508 for highest safety – SIL2/3 applications (3rd party approved)

• Periodic proof testing is quickly and simple organized with guided wizards via the SmartBlue-App or via a test button or magnetic pin from outside. Via digital communication you can initiate the device for a fast and easy testing of the safety loop.

• Heartbeat Technology allows safe, continuous diagnostics and a simple verification, without process interruption

• Centralized asset management with easy online access to all device information thanks to digital communication

• Second line of defense to protect the environment
