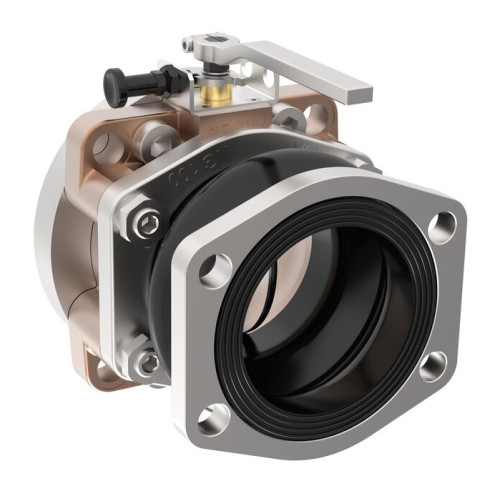

SDAK0100T 4" SUCTION UNIT
- Brand: ASA
- Product Code: SDAK0100T
- Availability: In Stock
- 1,512.00€
1,440.00€
- Ex Tax: 1,200.00€
The SDAK0100T 4" Suction Unit is a large-capacity hydraulic suction connection solution developed for hydraulic systems using high-flow pumps. Its 4-inch connection size provides a suitable interface between large hydraulic reservoirs and pump suction ports.
The unit is designed to simplify the suction-side connection while keeping the hydraulic installation organized and serviceable. It is particularly suitable for large hydraulic power units, industrial machinery and mobile equipment where a high-capacity pump requires a properly sized inlet connection.
By using a dedicated suction unit, hydraulic system manufacturers can reduce the complexity of assembling the pump-to-tank connection from multiple individual components.
Main Features
- Product code: SDAK0100T
- Nominal size: 4"
- Hydraulic suction unit
- Large-diameter pump connection
- Designed for reservoir-to-pump installation
- Suitable for high-flow hydraulic systems
- Compact connection arrangement
- Space-efficient design
- Suitable for hydraulic power units
- Suitable for industrial and mobile machinery
- Practical solution for large hydraulic pumps
Large-Diameter Suction Connection
The SDAK0100T 4-inch suction unit is designed for hydraulic circuits where a large pump suction connection is required.
Large-capacity pumps need an appropriately sized suction path to ensure a reliable supply of hydraulic oil from the reservoir. The 4-inch configuration makes the SDAK0100T suitable for hydraulic systems with substantial flow requirements.
It can be incorporated into the suction circuit between the hydraulic tank and pump, providing a dedicated connection point for the pump inlet.
Pump and Reservoir Integration
The SDAK0100T provides a practical way to connect a hydraulic pump to its oil reservoir.
A dedicated suction assembly can make the overall hydraulic layout cleaner by reducing unnecessary pipework and simplifying the arrangement of connection components around the pump.
This can be especially valuable in large hydraulic power units where several pumps, filters, valves and reservoirs must be installed within a defined space.
High-Flow Hydraulic Applications
The 4-inch connection makes this suction unit suitable for larger hydraulic systems and high-capacity pump installations.
Potential applications include:
- Large hydraulic power units
- Industrial hydraulic power packs
- Heavy-duty hydraulic machinery
- Hydraulic pump stations
- Large hydraulic reservoirs
- Construction machinery
- Agricultural equipment
- Material handling systems
- Hydraulic presses
- Industrial production equipment
- Hydraulic filtration systems
- Hydraulic cooling systems
Space-Efficient Hydraulic Installation
Large hydraulic components can make equipment design challenging when installation space is limited. The SDAK0100T suction unit helps create a more direct connection between the pump and reservoir.
A well-organized suction assembly can contribute to:
- Reduced unnecessary piping
- Cleaner hydraulic layouts
- Easier component access
- Simplified installation
- More convenient maintenance
- Better utilization of available space
These characteristics make the product suitable for both new hydraulic system designs and replacement applications.
Pump Vibration and Flexible Connections
Hydraulic pumps naturally generate mechanical vibration during operation. When the suction unit is integrated with compatible flexible connection components, the resulting assembly can accommodate a degree of movement between the pump and reservoir.
This can help reduce mechanical stress on rigid piping and connection points and is particularly useful for mobile hydraulic machinery and high-capacity hydraulic power units.
Applications
The SDAK0100T can be incorporated into:
- Hydraulic power packs
- Hydraulic power units
- Large pump assemblies
- Industrial hydraulic systems
- Construction equipment
- Agricultural machinery
- Mobile hydraulic systems
- Hydraulic oil tanks
- Hydraulic reservoirs
- Hydraulic filtration units
- Hydraulic cooling circuits
- Heavy-duty machinery
Advantages of SDAK0100T
The 4" hydraulic suction unit provides a practical solution for manufacturers and system integrators working with large hydraulic pumps.
Its main advantages include:
- Large 4-inch suction connection
- Suitable for high-capacity hydraulic pumps
- Simplified pump-to-reservoir installation
- Compact connection arrangement
- Cleaner hydraulic piping
- Easier installation and servicing
- Suitable for OEM applications
- Suitable for industrial and mobile hydraulic systems
Technical Specifications
| Specification | Details |
|---|---|
| Part No: | SDAK0100TU00 |
| Product Code | SDAK0100T |
| Product Type | Suction Unit |
| Nominal Size | 4" |
| Description | ESAF – NG 100 |
| Application | Hydraulic Suction Line |
| Primary Function | Pump / Reservoir Connection |
| Installation | Hydraulic Systems |
| Connection Location | Pump Inlet / Tank Outlet |
| Design | Large-Diameter Suction Assembly |
Ideal for Large Hydraulic Power Units
The SDAK0100T 4" suction unit is designed for hydraulic equipment manufacturers, OEMs and system integrators requiring a large-diameter pump suction connection.
Its 4-inch configuration makes it particularly appropriate for high-capacity hydraulic pumps and large oil reservoirs. The dedicated suction-unit design can help simplify system construction while providing a practical connection for the hydraulic pump inlet.
