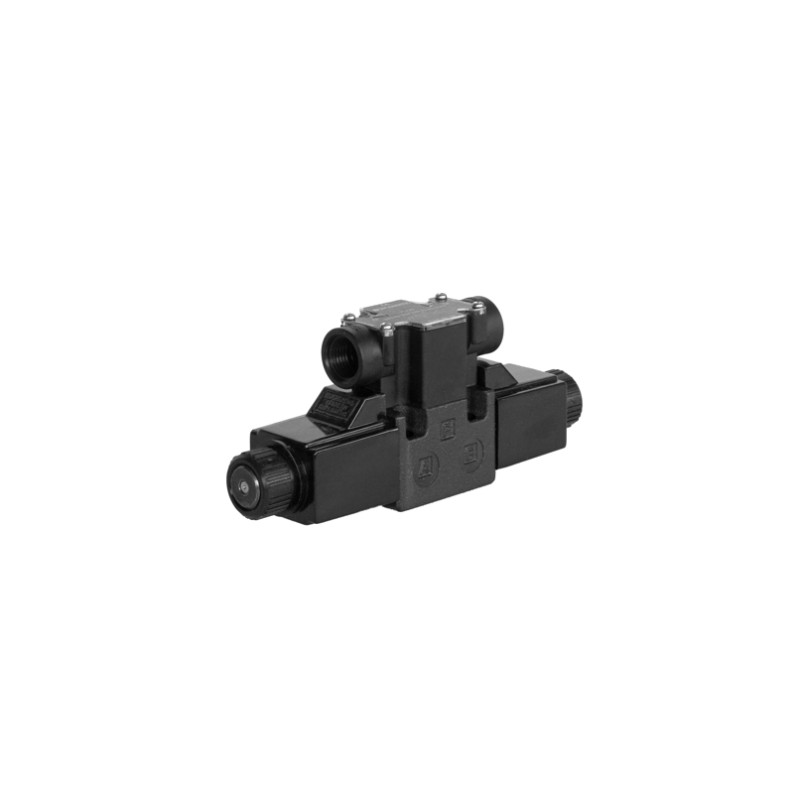

DS3JB SOLENOID ACTUATED DIRECTIONAL CONTROL VALVE WITH JUNCTION BOX NFPA D03

PLEASE ASK FOR PRICE!

DS3JB are spools directional valves that control passage and direction of a flow, with mounting surface according to NFPA D03 standards. They are available with 3-ports and 4-ports design, with spring return or mechanical detent. The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drop. Wet armature solenoids with interchangeable coils are used. The valve is equipped with junction box to be wired. The valve is available with AC solenoids. A boot protected manual override is available for applications in tropical climate.
