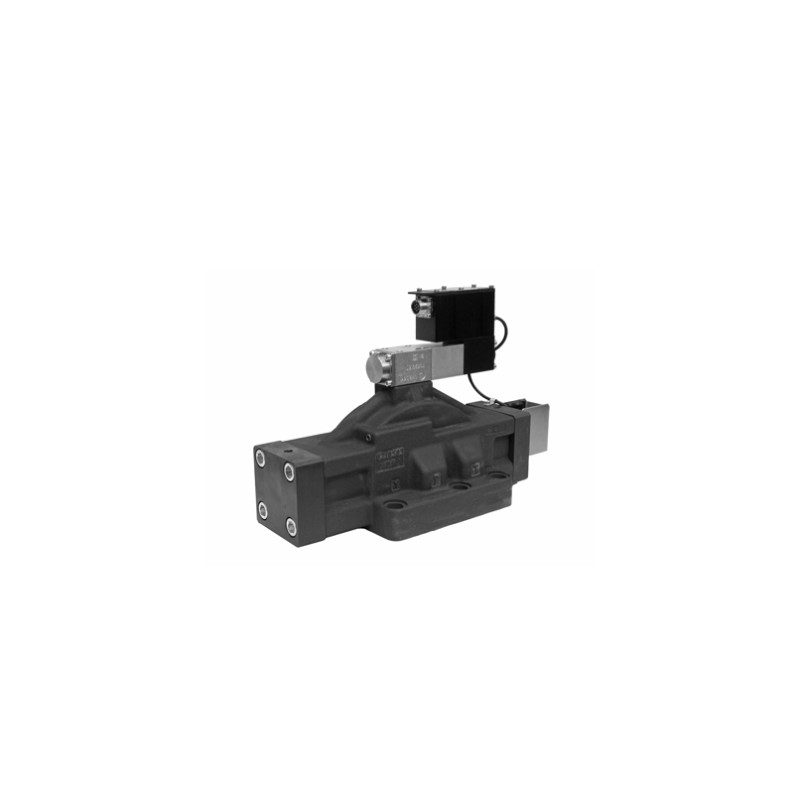

DXRE*J* HIGH RESPONSE DIRECTIONAL VALVES, PILOT OPERATED, WITH ON-BOARD ELECTRONICS AND DOUBLE POSITION FEEDBACK

PLEASE ASK FOR PRICE!

DXRE*J and DXRE*JH are directional control valves operated by servo-proportional valve with fail-safe position and high dynamic solenoid. The main spool position is controlled by a LVDT linear transducer in closed loop, which ensures high precision and repeatability. Available in sizes from ISO 4401-05 to ISO 4401-10 with oversized ports, it is suitable for applications in closed loop control systems of position, speed and pressure. When a of power failure occurs, or without enabling command, the main spool is carried to the fail-safe position by the springs. Spools with overlap, underlap or zero overlap are available.

The valves are available with two types of on-board electronics:
The J version is our standard electronics with analogue interface with current or voltage reference signal with connection 6 pin + PE.
The JH version has interface for fieldbus communication type EtherCAT, Ethernet/IP or Profinet, with 11 pin M12 connection.
