EWM-SP-DAD PROFINET OR ETHERCAT
- Brand: Duplomatic
- Product Code: EWM-SP-DAD PN
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
AXIS POSITIONING CONTROLLER WITH PRESSURE LIMITATION IN CLOSED LOOP WITH ETHERNET INTERFACE

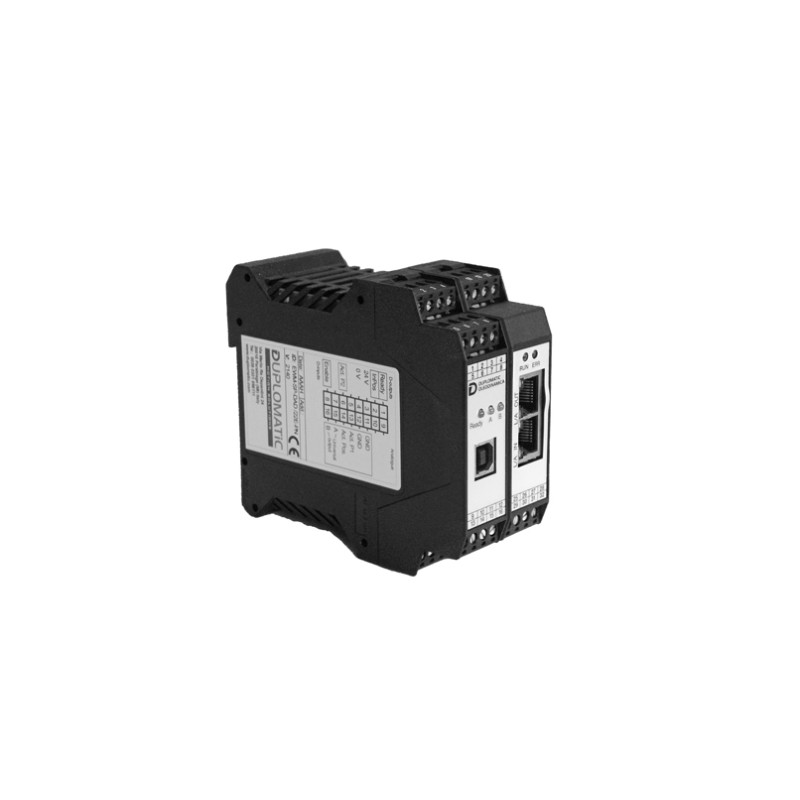

The EWM-SP-DAD digital card manages the position control with pressure limitation of hydraulic actuators equipped with a digital position sensor and analog pressure sensors. This card is an axis controller with two types of position control: stroke dependent deceleration (SDD) or numerical control (NC).
It communicates with the PLC via the integrated Ethernet communication interface for ProfiNET and EtherCAT fieldbus.
The output value, voltage or current type, has to be configured via software. To configure it, you need the EWM20_SmartManager software. Connection by USB port on the front panel. Some parameters can also be configured via fieldbus.
User Manuals and description files are available upon registration in the reserved area.
