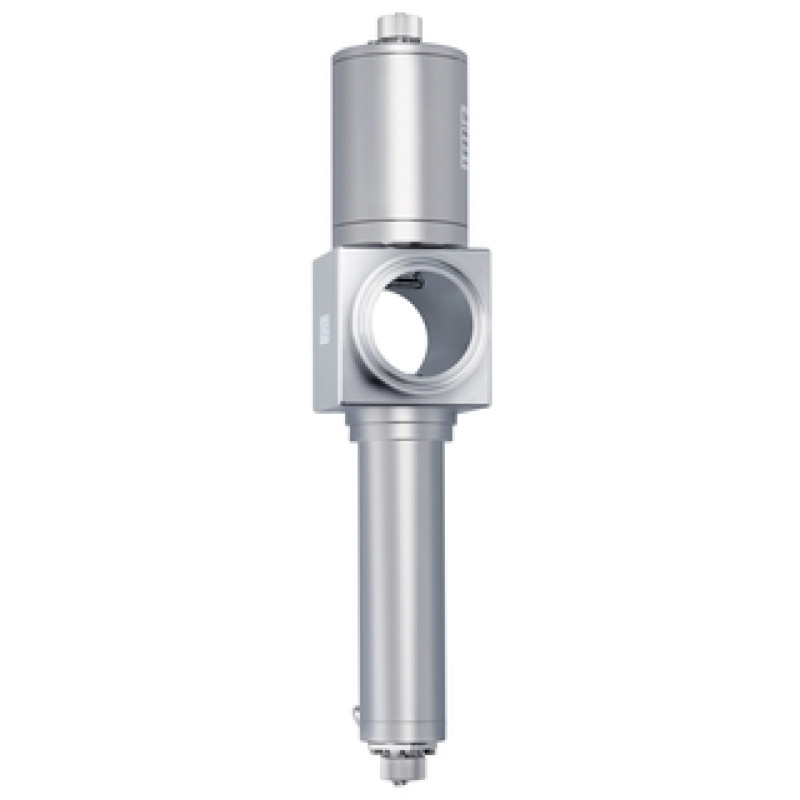

OUSTF10 Inline turbidity sensor

Turbidity and suspended solids measurement by light scattering and absorbance

• Measuring principle

  NIR absorbance

• Application

  Turbidity and suspended solids measurement for filter control and quality measurement

• Measurement range

  0 to 200 FTU
  0 to 200 ppm DE

• Material

  Sensor housing: 316L

• Process temperature

  0 to 90 °C (32 to 194 °F) continuous
  Max. 130 °C (266 °F) for 2 hours

• Process pressure

  Max. 100 bar (1450 psi)
  (depending on flow through assembly)

• Ex certification

  ATEX II 2G Ex db IIC T5 Gb
  FM Cl.1, Div. 1, Group B, C, D

• Ingress protection

  IP 65 (NEMA 4)

• Additional certifications

  FDA
