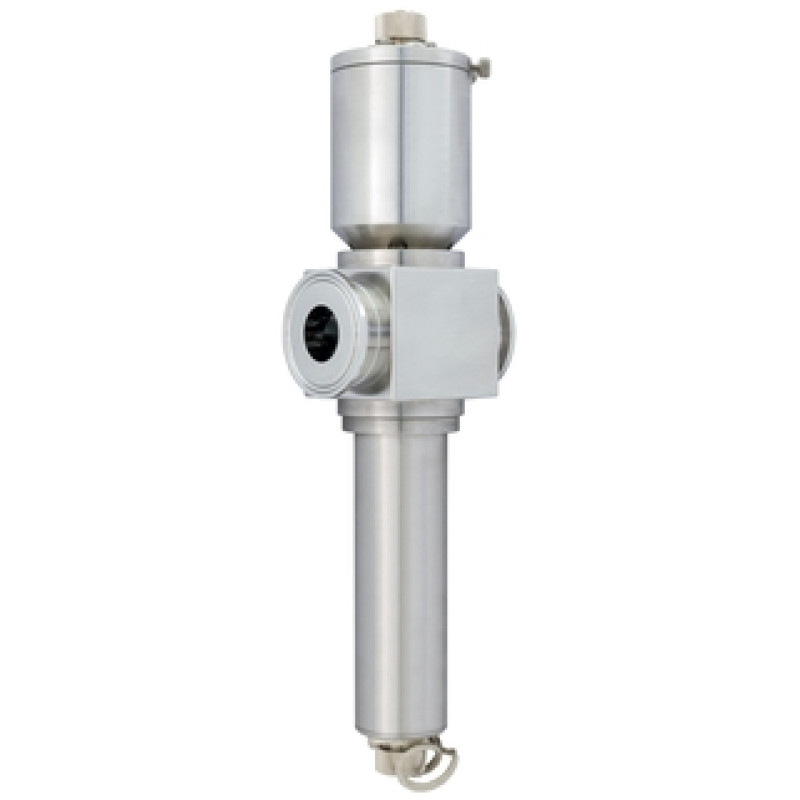

OUSAF46 UV absorption sensor

Sensor for Inline product quantification at two specific UV wavelengths

• Measuring principle

  UV absorbance

• Application

  Measurement of protein concentrations, chromatography monitoring, filtration monitoring, concentration measurement of organic compounds, detection of aromates

• Characteristic

  Sensor for installation in the pipe with separate flow assembly OUA260

• Measurement range

  0 to 2.5 AU
  0 to 50 OD (depending on optical pathlength)

• Design

  "

• Material

  Sensor housing: stainless steel 316

• Process temperature

  0 to 90 °C (32 to 194 °F) continuous
  Max. 130 °C (266 °F) for 2 hours

• Process pressure

  Max. 100 bar (1450 psi) absolute, depending on the material, pipe size and process connection of the flow assembly

• Ex certification

  ATEX, FM

• Ingress protection

  IP65 (NEMA4)

• Additional certifications

  FDA
