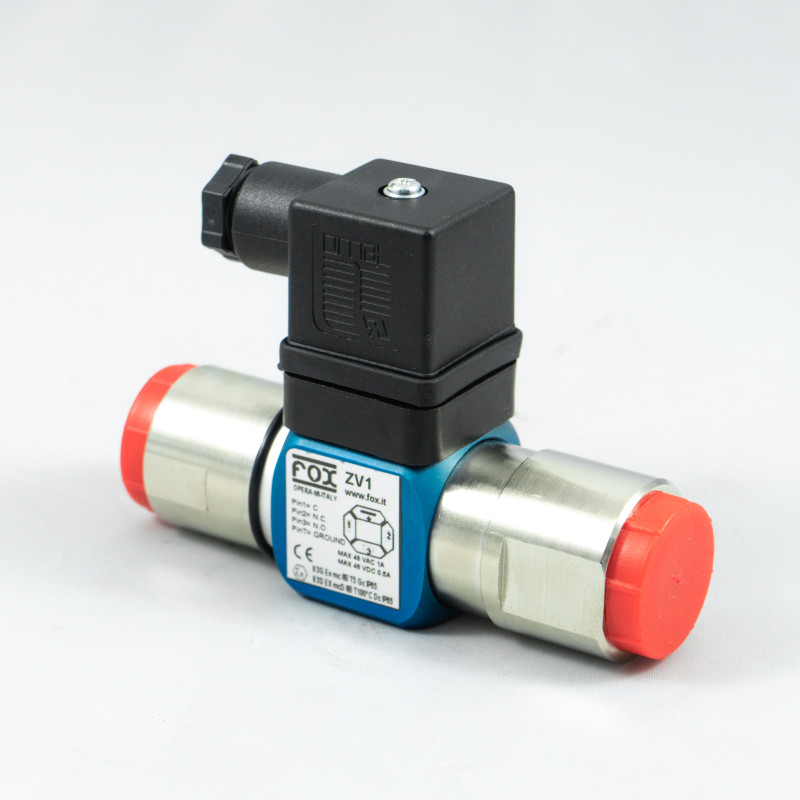

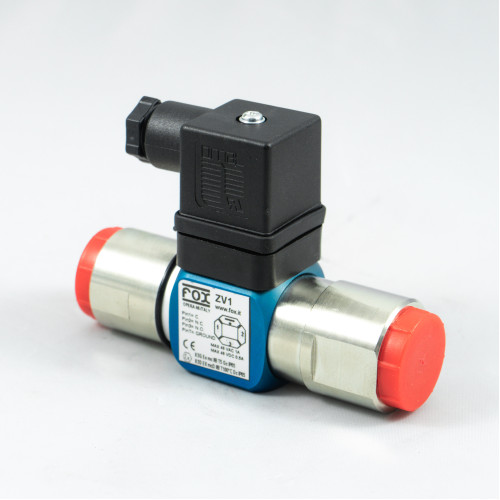

ZV Electromechanical flow switches
- Brand: Fox
- Product Code: ZV
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Working temperature: -20°C ÷ +100°C
Operating point: adjustable by sliding the connector support along the axis of the instrument (equipped with locking pin M3)
In the executions with proportional output signal the slide remain fixed
Weight: ZV1-6: 0,20 Kg / ZV7-8: 0,80 Kg / ZV9-10: 0,94 Kg
Mechanical life: 106 cycles at 20°C
Body: nickel-plated brass, optional in stainless steel and plastic
Installation:
It's suggest vertical position with the direction of the fluid from bottom to top and at least 30 mm away from magnetic fields and ferrous parts
Electric Features:
- Electric connection according to DIN43650, M3
- Electric connection according to IEC60947-5-2, M12
- Electric protection according to DIN40050, IP65
- Exchange contacts (Common, NO and NC) - SPDT
- Maximum load: 0.2A at 30VAC/VDC
Warranty: see dedicated page
Spare parts: see dedicated page
Also Available:
- Special electrical connection
- CU-TR for Russian market
- ZV…ATEX certification ATEX II 3G Ex nc IIB T6 Gc IP65
- ZV...PVC in PVC-U, pmax 10 bar, availability to check
