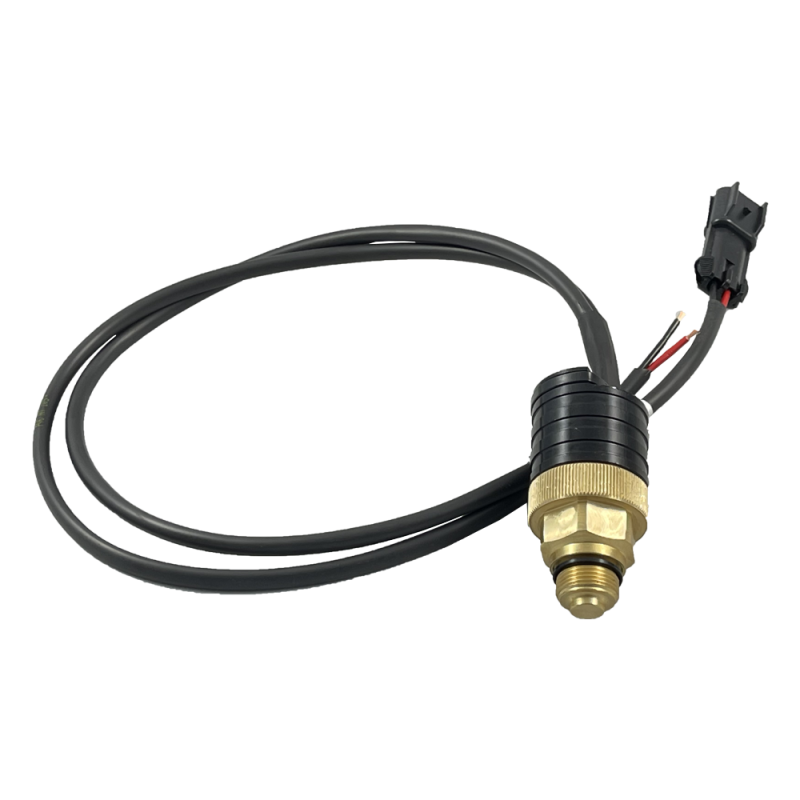

TMS4-TMS5 Electromechanical thermostat
- Brand: Fox
- Product Code: TMS4-TMS5
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Working temperature: -20°C ÷ +100°C
Fixed hysteresis value: ~ 5°C
Switching accuracy: ± 3.5°C
Weight: 0,35 Kg
Body: in brass hexagonal, KEY34 with integral seal DIN
Heat exchangers: Ø39 anodized aluminium
Electrical features:
- SOFT-START technology
- Direct control to the electric engine for limiting the starting torque
and the excessive energy during starting
- Type of contact: Normally Open, NO
- Standard execution power supply: 12-24 VDC
- Max load on contacts: 25A - 24VDC / 12A - 12VDC
- Electric protection according to DIN 40050, IP67
Standard electric wiring:
Power supply: 0.7m wire RED/BLACK connector WPC-280 male
Signal: 0.7m wire RED/BLACK connector WPC-280 female
Electric connection:
a) Valve side with connector WPC-280 female
b) Power supply ( + red / - black )
Warranty: see dedicated page
Spare parts: see dedicated page
Also Available:
- Special electrical connection
- CU-TR for Russian market
