PLEASE ASK FOR PRICE!
Working temperature: -20°C ÷ +100°C

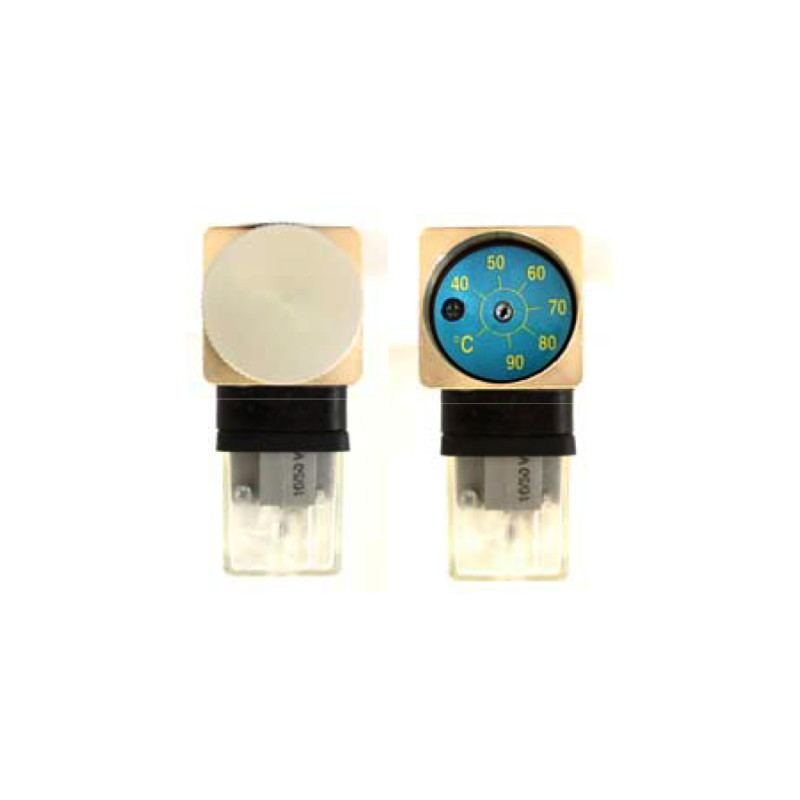

Setting point: adjustable using potentiometer
Switching accuracy: ± 3% of the setting temperature value
Fixed hysteresis value: standard setting
Switching frequency: 30 cycles/min
Weight:
Mechanical life: 2x106 cycles at

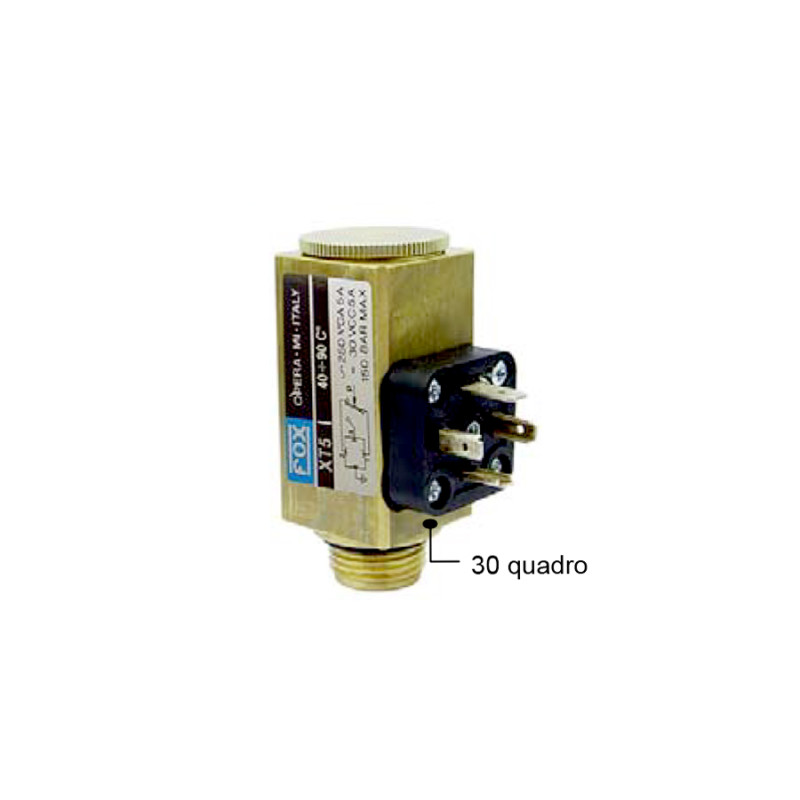

Body: square 30x30mm in brass
Electric Features:
- Power supply: from 12 to 24 VCC
- Electric connection according to DIN43650, M4
- Electric connection according to IEC60947-5-2, M12
- Electric protection according to DIN40050, IP65
- Maximum contact load: 0,5 A
- Medium consumption: 20 mA
- Involatile memory: EEPROM
Warranty: see dedicated page
Spare parts: see dedicated page
On request:
- Special electrical connection
- Special value of hysteresis
- CU-TR for Russian market
- Special hydraulic connection
