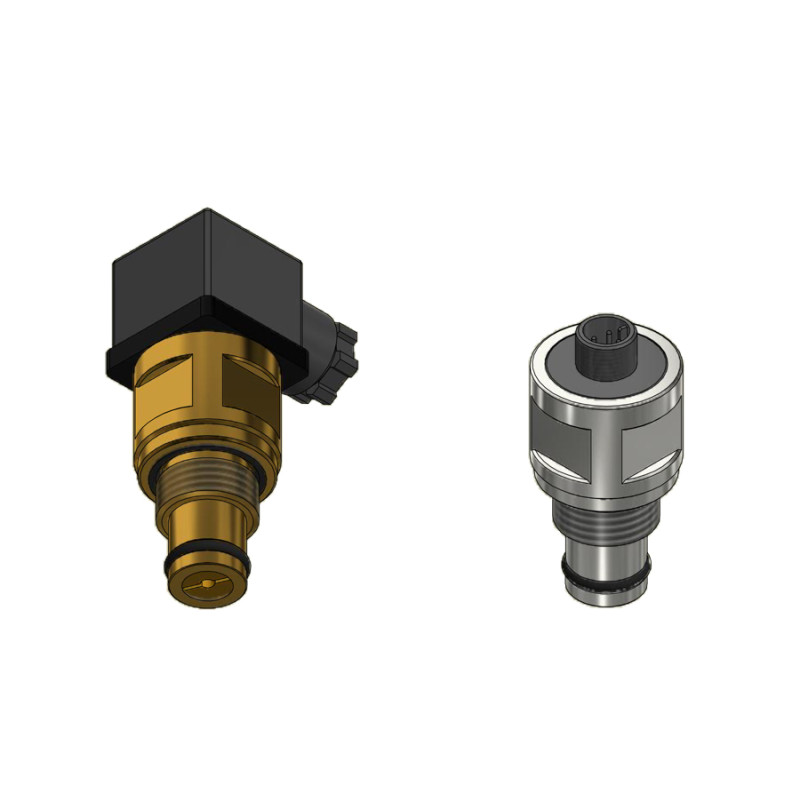

TDK6 Differential pressure transmitter
- Brand: Fox
- Product Code: TDK6
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Working temperature: -20°C ÷ +80°C
Non linearity + hysteresis: ≤ 10% of the end of scale at 20°C
Zero thermal drift: < 5% of the end of scale, from 0°C to + 70°C

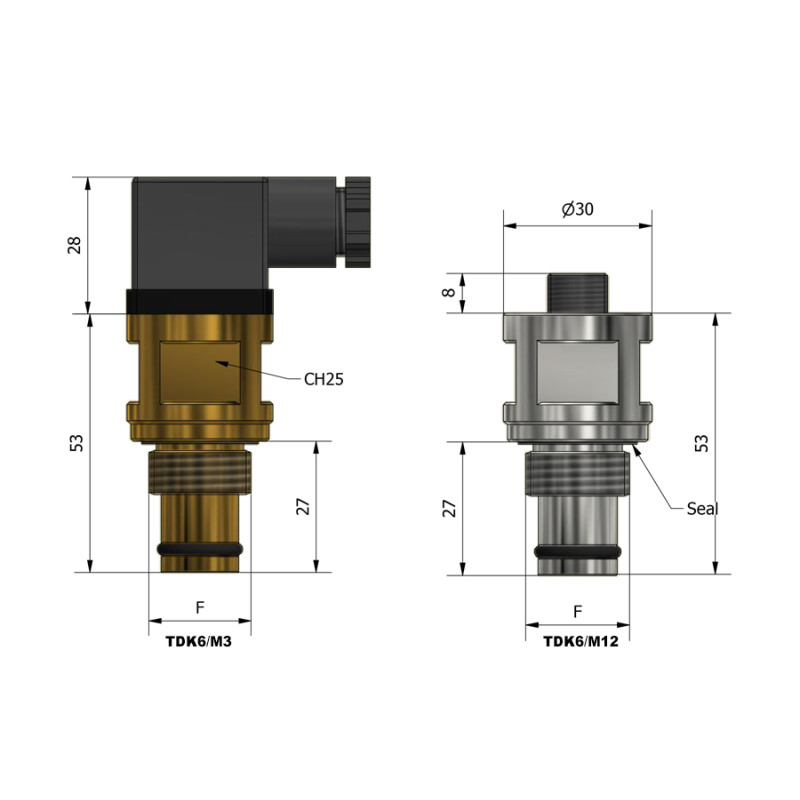

Weight: M3 = 0,2kg / M12 = 0,35kg
Mechanical life: 2x106 cycles at 20°C
Body: brass, with wetted parts in brass, ceramic sensor and NBR seal
Hydraulic connection: threaded male with integral ISO seal
Electric features:
- Power supply standard execution:
4-20 mA à 2 wires: 9-28 VDC ±10%

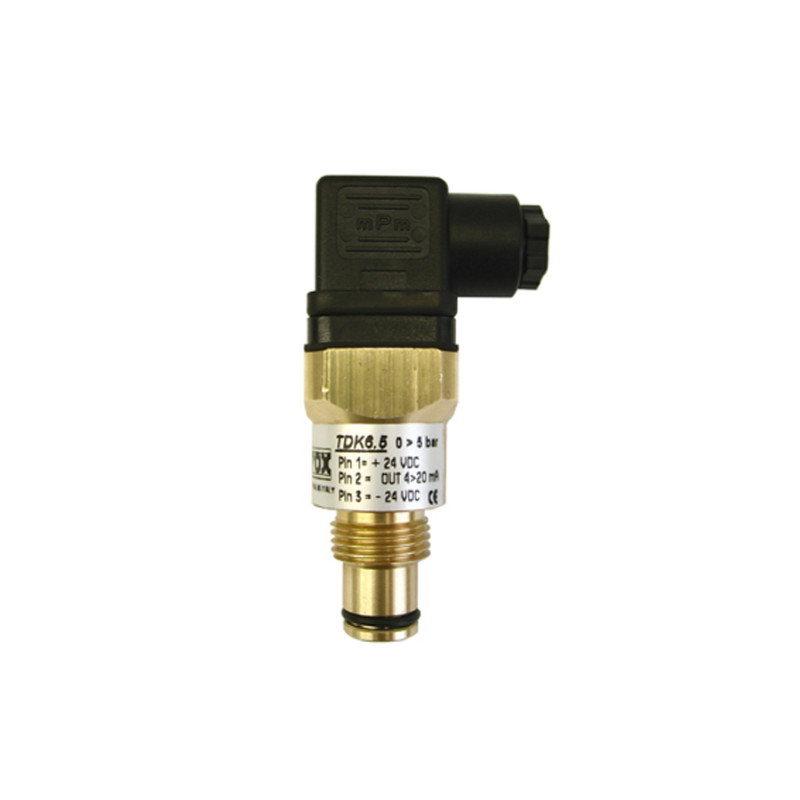

- Electric connection according to DIN43650, M3
- Electric protection according to CEI EN 60529, IP65
- Electric connection according to IEC60947-5-2, M12
- Electric protection according to CEI EN 60529, IP67
- Input impedance: 100 Ohm
Alarm signal NO (M12):
- N°1 at 16 mA (temporization 6 sec)
- N°2 at 20 mA (temporization 6 sec)
Also available:
- Special max pressure
- Special electrical connection
- Special hydraulic connection
- Different measurement pressure ranges
- CU-TR for Russian market
