Technical features:
Working temperature: -20°C ÷ +80°C
Non linearity + hysteresis: < 1% of the end of scale at 20°C
Zero thermal drift: < 3% of the end of scale from 0°C to +70°C
Weight: 0,1 Kg
Mechanical life: 2x106 cycles at 20°C
Body: zinc plated steel and ceramic sensor with NBR seal

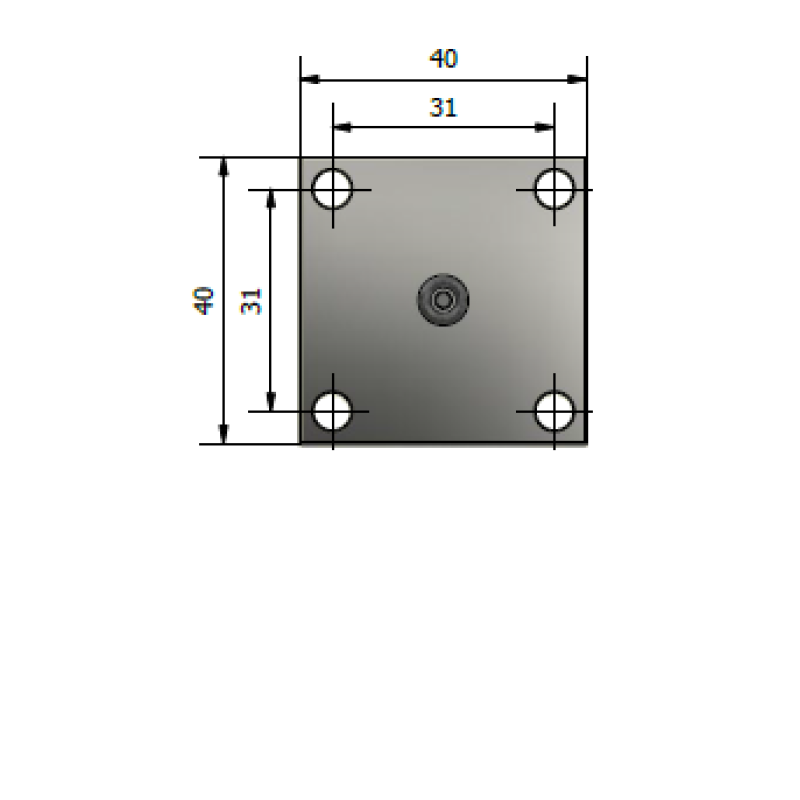

Hydraulic connection: threaded female or integral CETOP flange
Working temperature: -20°C ÷ +80°C
Non linearity + hysteresis: < 1% of the end of scale at 20°C
Zero thermal drift: < 3% of the end of scale from 0°C to +70°C
Weight: 0,1 Kg
Mechanical life: 2x106 cycles at 20°C
Body: zinc plated steel and ceramic sensor with NBR seal
Hydraulic connection: threaded female or integral CETOP flange
Electric Features:
- Power supply for standard executions:
4-20 mA = 2 wires: from 9 to 28V DC
0-10 V 0 3 wires: from 9 to 28V DC

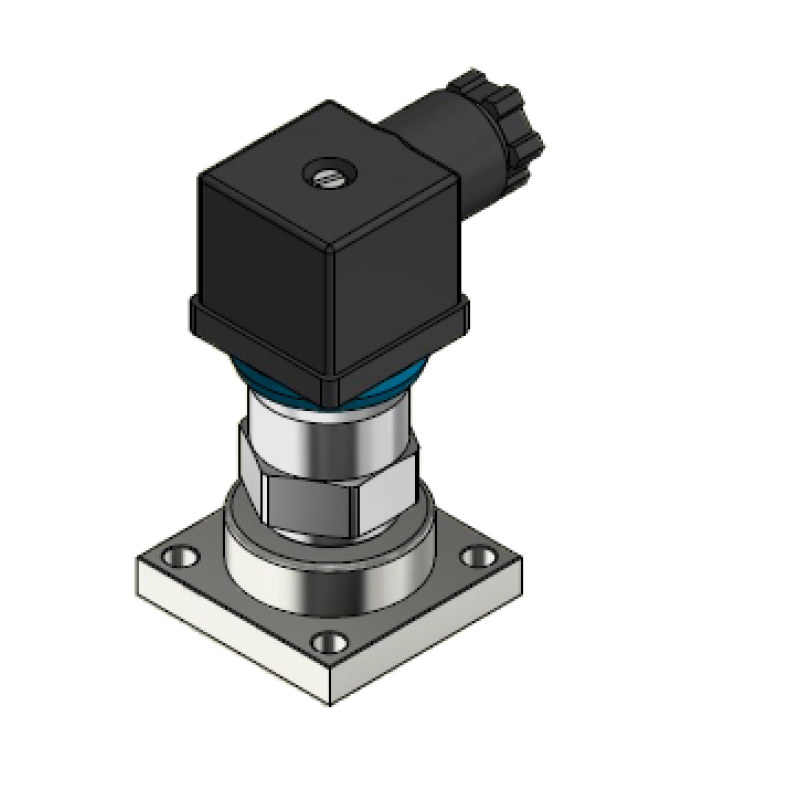

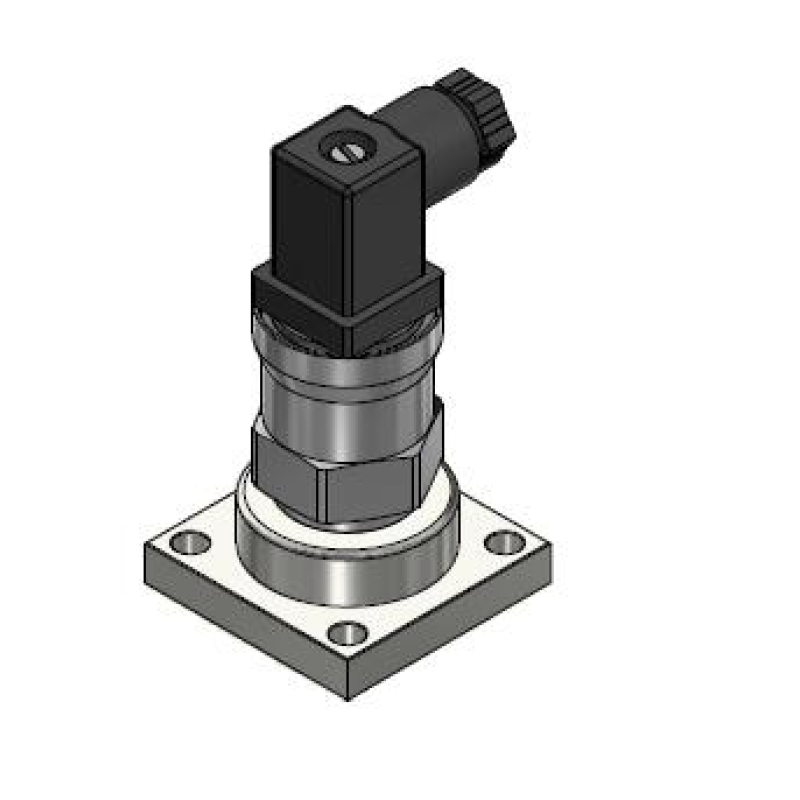

- Electric connection according to DIN43650, M2 and M3
- Electric protection according to CEI EN 60529, IP65

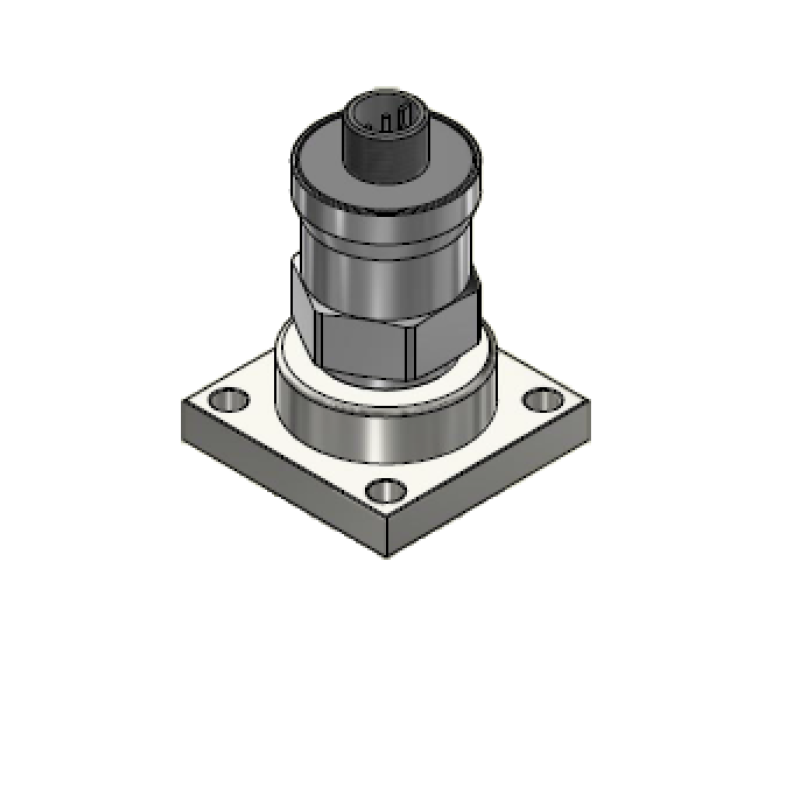

- Electric connection according to IEC60947-5-2, M12
- Electric protection according to CEI EN 60529, IP67 (M12)
- Input impedance: 100 Ohm
Warranty: see dedicated page
Spare parts: see dedicated page
Also available:
- Special output signal
- Special max pressure
- Special electrical connection
- Different measurement pressure ranges
- CU-TR for Russian market
