MPS Digital Pressure Test Coupling

PLEASE ASK FOR PRICE!

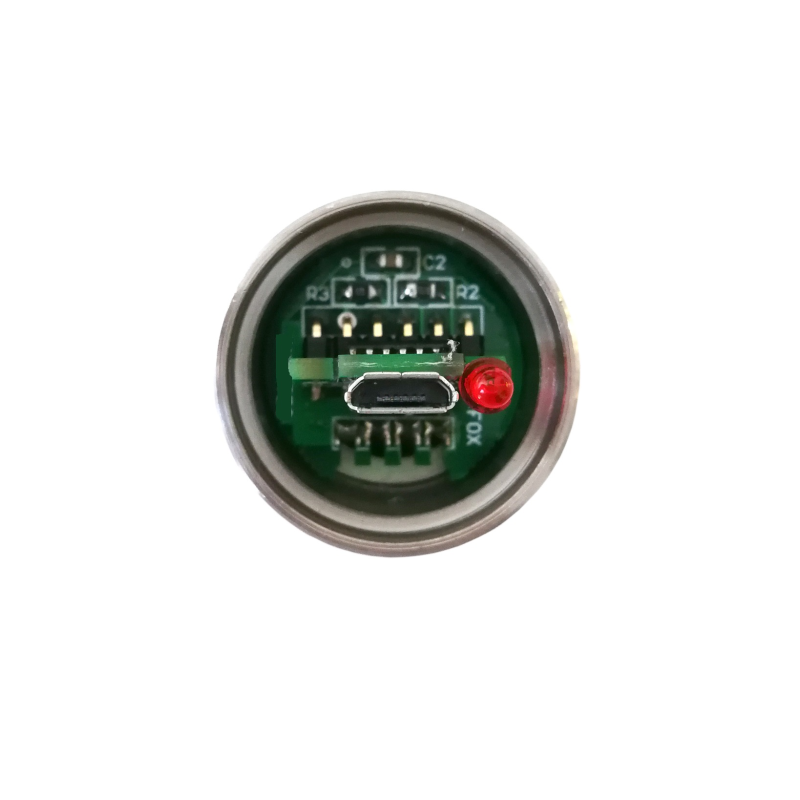

FOX presents an absolute preview of the first digital test coupling with pressure reading and graphics for Smartphone, Tablet or PC. The test coupling, consisting in a compact stainless steel body, that have inside a circuit which can continuously read the pressure of the system.
By connecting your Smartphone using the special cable included, the led will light up (check OTG compatibility of your Smartphone/Tablet) because it is the Smartphone/Tablet that provide a power for the test coupling. Using a simple free application available on our website, you can view the pressure in real time and download through pc the data to an Excel file in order to extract a graphics of the pressure trend.
The advantages of this test coupling are:
• More accurate reading than a normal pressure gauge
• Possibility to download an Excel table with pc of all values
• Extract a diagram of pressure trend
• Zero leakage of oil or fluid during the drain of tube
• Compatible with Android Smartphone/Tablet qualified OTG
• No special tools are necessary
• Instant reading of pressure


Technical Features:
Working temperature: -25°C ÷ +85°C
Accuracy: ± 1% of the end of scale at 20°C
Weight: 0,05 Kg
Electric Features:
- Power supply 5V by smartphone (check OTG compatibility)
- Electrical connection Micro-Usb type B with cable OTG (on-the-go)
- Electric protection according DIN40050 IP65

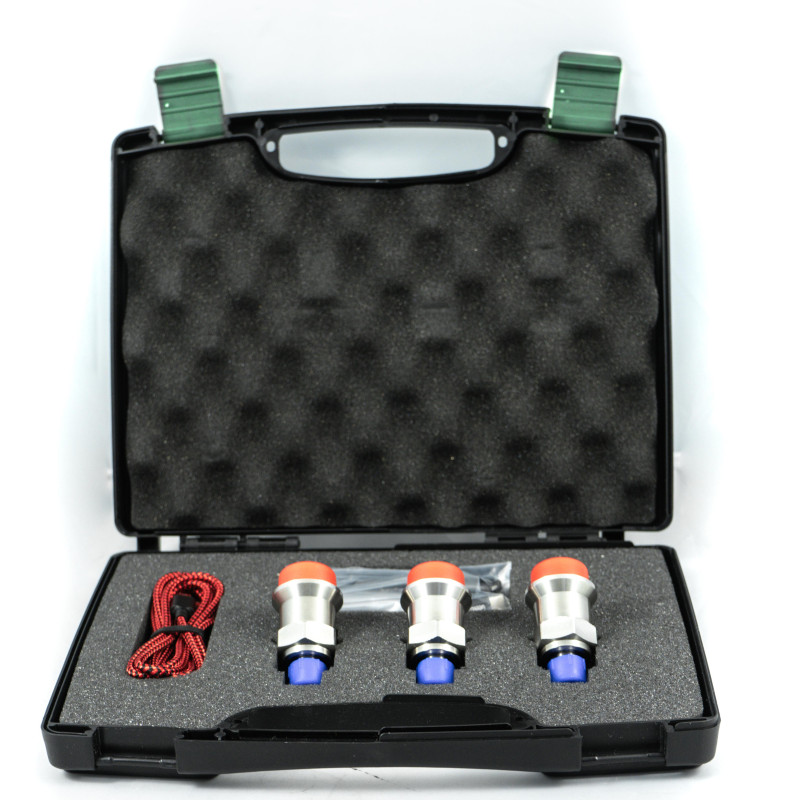

- Minimum pack composed by handbag + n°3 MPS + n°1 cable + App
Warranty: see dedicated page

MPS.pdf Document
