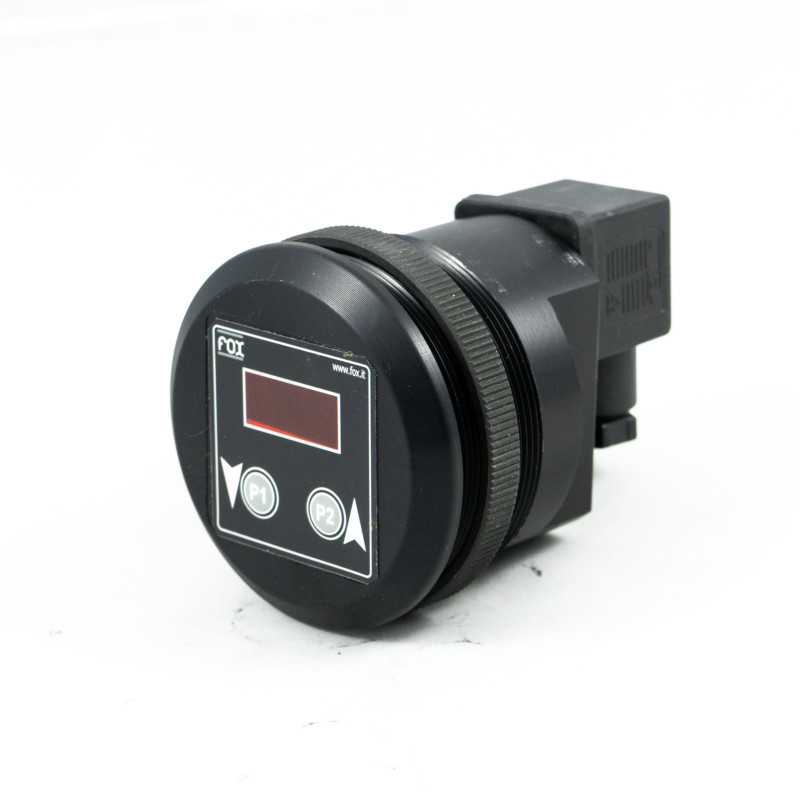

KD5-KRD5-ATR142 Electronic pressure switches
- Brand: Fox
- Product Code: KD5-KRD5-ATR142
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Working temperature: -20°C ÷ +70°C
Mechanical life: 2 x 106cicli a 20°
Body: anodized aluminium
Installation: at panel with hole of 68mm
Max dimension: quadrant Æ 68mm, depth 70mm, 0,13 Kg
Electric Features:
- Linearization: 9 control points
- Decimal point: programmable
- Visualization: from –999 to + 9999
- Maximum contact load: 0,5 A
- Electric connection according to DIN43650, 2 x M2
- Electric connection according to IEC60947-5-2, M12
- Electric protection according to CEI EN 60529, IP65
- Medium consumption: <50 mA
- Power supply: from 10 to 30 VDC
- Interference emission and immunity according to EN 61.326
Technical features ATR142:
Working temperature: -20°C ÷ +70°C
Body: ABS
Installation: at panel, dimension 72mm x 36mm, depth 60mm, 0,07 Kg
Electric Features:
- Decimal point: programmable
- Visualization: from 0 to + 9999
- N°2 contacts SPDT and SSR output alarm
Warranty: see dedicated page
Spare parts: see dedicated page
Also available:
- CU-TR for Russian market
