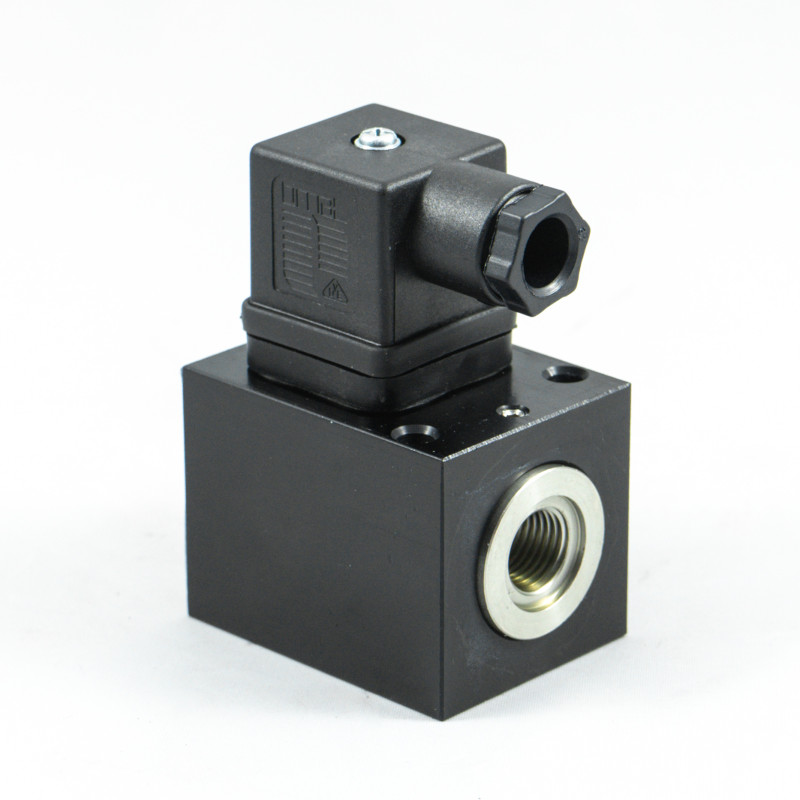

KLV5 Electronic pressure switches
- Brand: Fox
- Product Code: KLV5
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Technical features:
Working temperature: -20°C ÷ +80°C
Switching frequency: 200 cycles/min
Setting point: selectable by pressing the P1 and P2 buttons
Switching accuracy: 1% of the end of scale to 20°C
Hysteresis value: adjustable gap between all range of scale
Range of the adjustment: from 1% to 100% of end of scale
Weight:
Mechanical life: 10x106 cycles at
Body: in anodized aluminium, with fluid contact parts in stainless steel AISI316, ceramic sensor and NBR seal
Installation: in every position, panel assembly with 2 through holes Ø5 mm; hydraulic connection ¼” BSP-F
Display: n°3 digit of
Electric Features:
- Maximum contact load: 0,5 A
- Contacts (NA+NC – NC+NC – NA+NA)
- Output signal 4-20mA combinable to contacts (only with M12 connector)
- Electric connection according to DIN43650, M3
- Electric connection according to IEC60947-5-2, M12
- Electric protection according to CEI EN 60529, IP65
- Medium consumption: <50 mA
- Power supply: from 12 to 24 Volt
- Interference emission and immunity according to EN 61.326
Warranty: see dedicated page
Spare parts: see dedicated page
Also available:
- Special max pressure
- Special electrical connection
- Special value of hysteresis
- CU-TR for Russian market
- Execution with display in PSI
