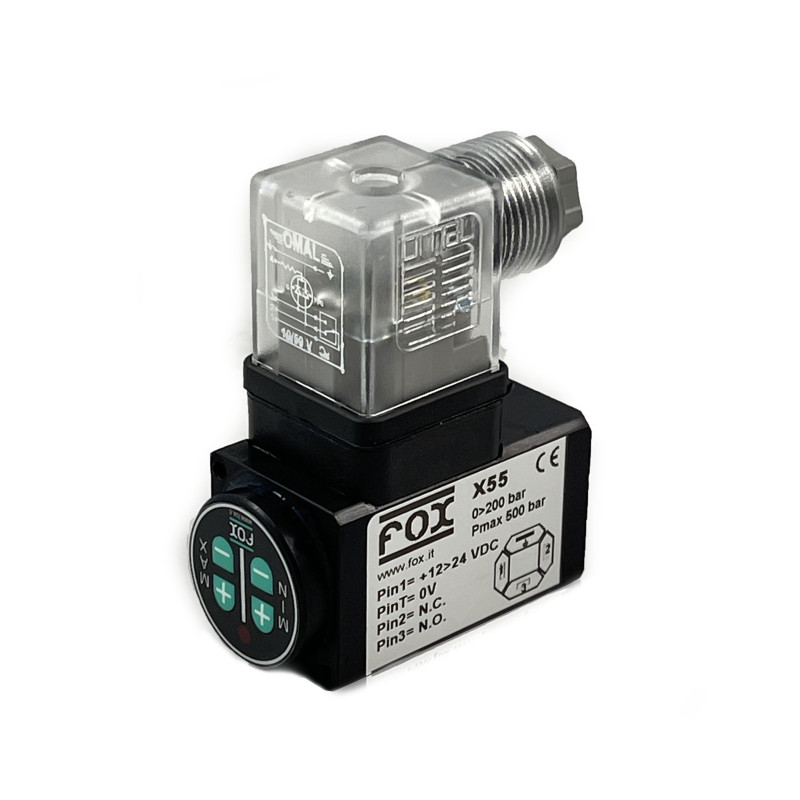

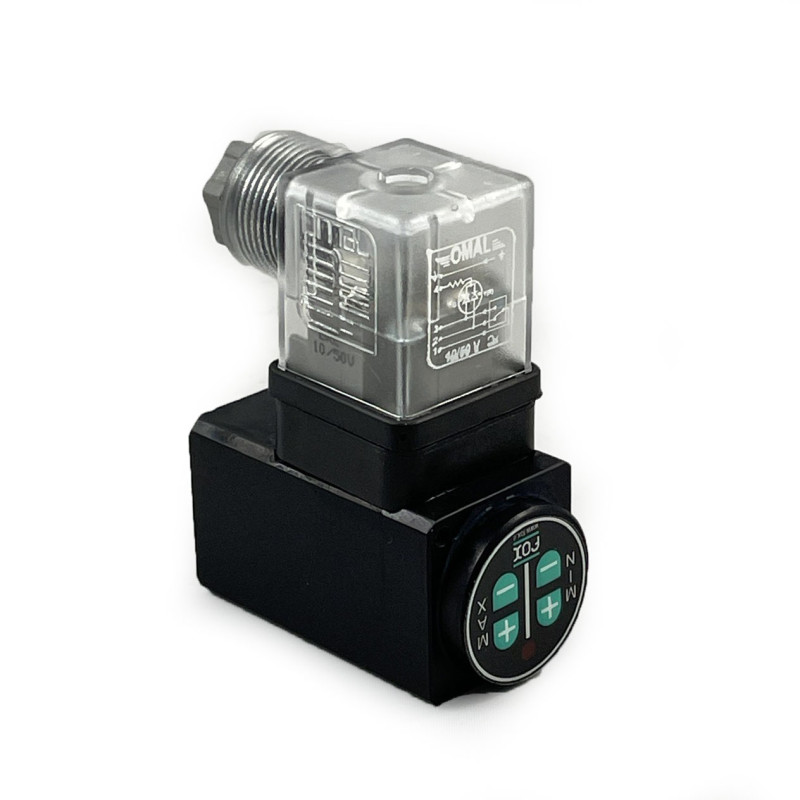

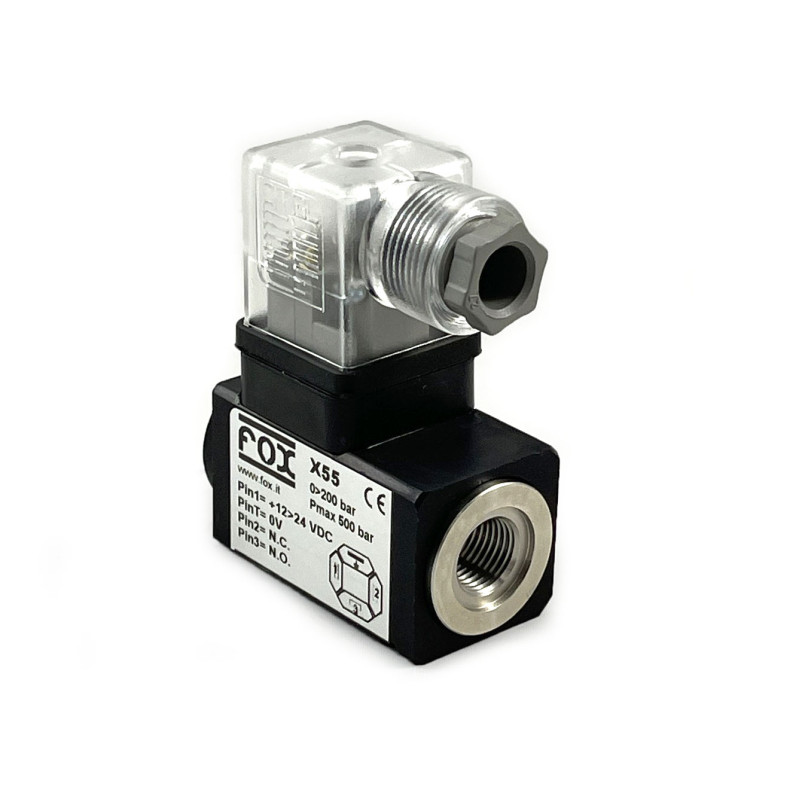

X5 Electronic pressure switches
- Brand: Fox
- Product Code: X5
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Working temperature: -20°C ÷ +80°C
Switching frequency: 120 cycles/min
Setting point: adjustable with 4 buttons
Switching accuracy: ± 1,5% of end of scale at 20°C
Hysteresis adjustable value: gap between 2% and 90% of the pre-set value
Weight:
Mechanical life: 5x106 cycles at
Electric features:
- Maximum load: 5 A
- Exchange contacts (Common, NO and NC) – SPDT
- Electric connection according to DIN43650, M3 and M4
- Electric connection according to IEC60947-5-2, M12
- Electric protection according to DIN40050, IP65
- Medium consumption: 20 mA
Body: 30x30mm square in anodized aluminium
Wetted parts: in stainless steel AISI 316 L with ceramic sensor and integral seal in NBR
Warranty: see dedicated page
Spare parts: see dedicated page
Also available:
- Special max pressure
- Special electrical connection
- Special value of hysteresis
- CU-TR for Russian market
