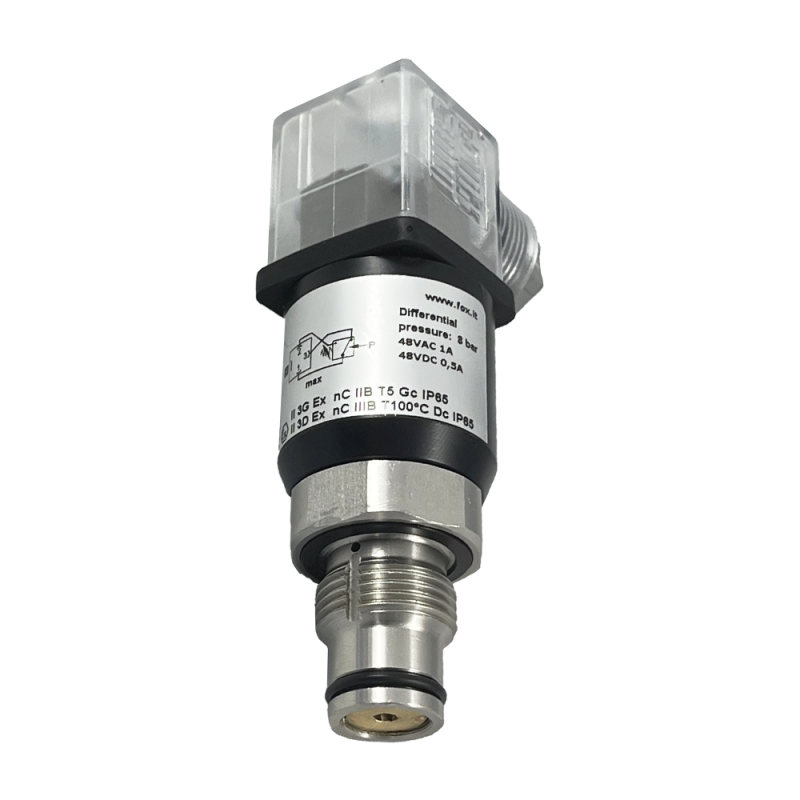

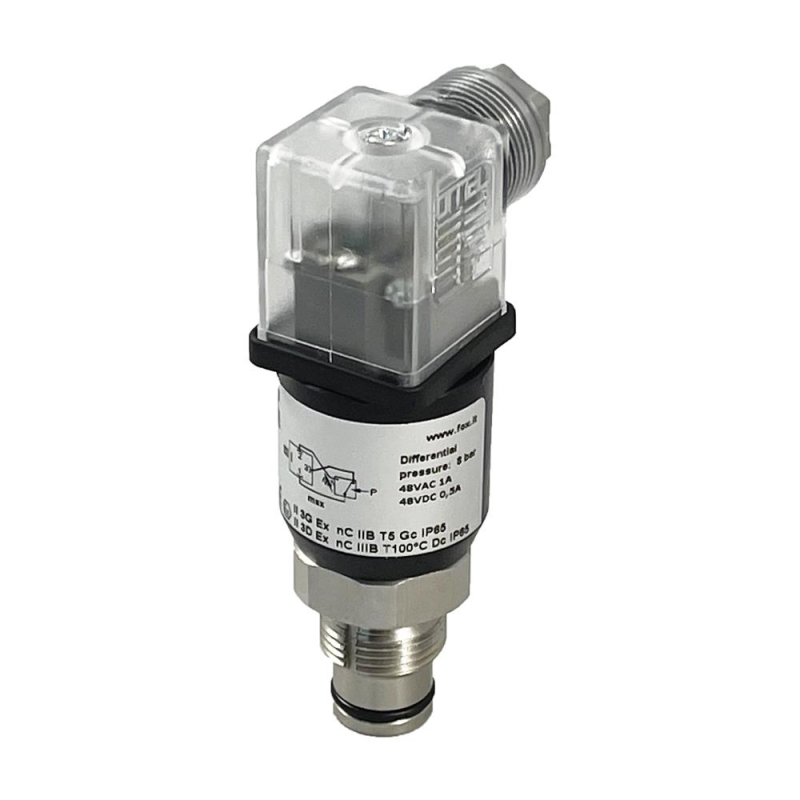

KZD5 Electromechanical differential pressure switches
- Brand: Fox
- Product Code: KZD5
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Technical features:
Working temperature: -25°C ÷ +85°C
Switching frequency: 60 cycles/min
Setting point: fixed
Switching accuracy: ±5% of end of scale at 20°C
Fixed hysteresis: ~20% of end of scale at 20°C
Weight: 0,25 Kg
Mechanical life: 106 cycles at 20°C
Electric Features:
- Maximum load: 1 A at 48VAC, 0.5 A at 48VDC
- Electric connection according to DIN43650, M4 Led
- Electric protection according to IEC60947-5-2, M12
- Electric protection according to DIN40050, IP65
- Exchange contacts (Common, NO and NC) – SPDT
Body: key 27mm in brasswith wetted part in brass
Seals and OR: included, wetted part in VITON
Warranty: see dedicated page
Spare parts: see dedicated page
Also available:
- Special max pressure
- Special electrical connection
- CU-TR for Russian market
- Body in stainless steel AISI 316 L
- Remote signal 4-20mA or 0-10V
