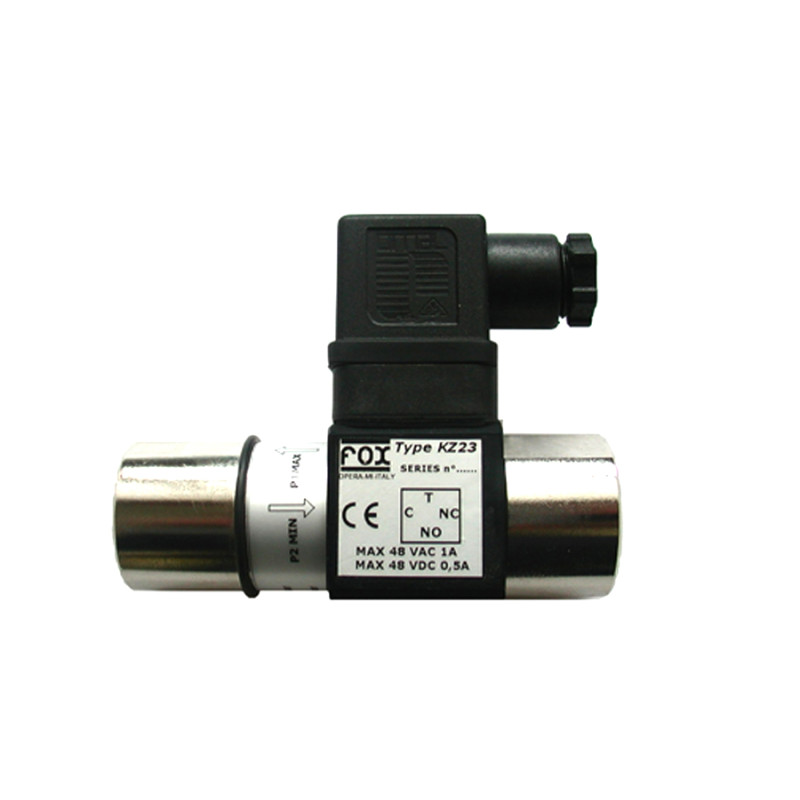

KZ2 Electromechanical differential pressure switches
- Brand: Fox
- Product Code: KZ2
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Technical features:
Working temperature: -25°C ÷ +85°C
Switching frequency: 60 cycles/min
Setting point: adjustable reached by sliding the connector-housing
forward to increase the differential ration and backward to decrease the different pressure value
Switching accuracy: ±5% of end of scale at 20°C
Fixed hysteresis: ~20% of end of scale at 20°C
Weight:
Mechanical life: 106 cycles at
Electric Features:
- Maximum load: 1 A at 48VAC, 0.5 A at 48VDC
- Electric connection according to DIN43650, M3
- Electric protection according to DIN40050, IP65
- Exchange contacts (Common, NO and NC) – SPDT
Body: 30x30mm square in anodized aluminium with wetted part in plated brass
Warranty: see dedicated page
Spare parts: see dedicated page
Also available:
- Special max pressure
- Special electrical connection
- Special value of hysteresis
- CU-TR for Russian market
- Seals in Viton or PTFE
