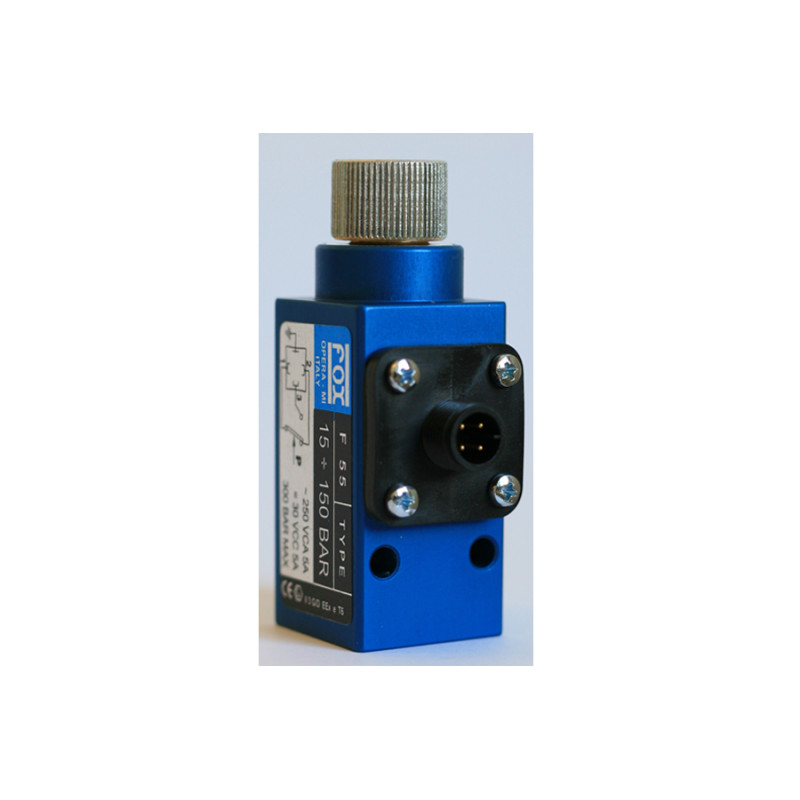

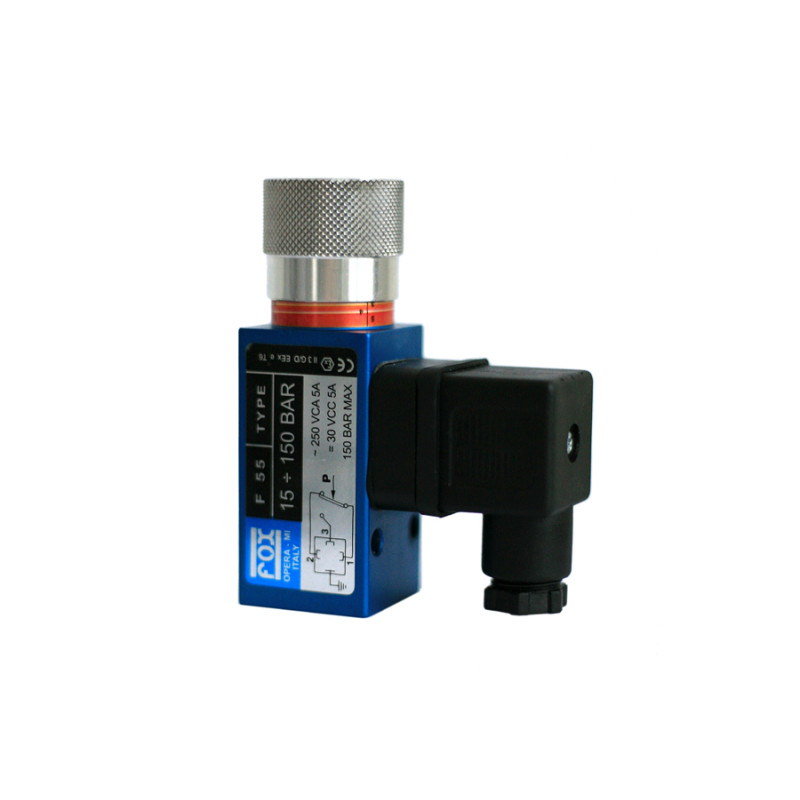

F5 Electromechanical pressure switches
- Brand: Fox
- Product Code: F5
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Technical features:
Working temperature: -25°C ÷ +85°C
Switching frequency: 120 cycles/min
Setting point: adjustable through internal screw or knob with locking screw
Switching accuracy: ± 3% of end of scale at
Fixed hysteresis value: ~15% of end of scale at
Weight:
Mechanical life: 106cycles at 70 bar (1000 PSI) at
Electric features:
- Maximum load: 5 A at 250 VAC, 0.25 A at 125 VDC (- Exchange contacts (Common, NO and NC) – SPDT
- Electric connection according to IEC60947-5-2, M12
- Electric protection according to DIN40050, IP65
- ATEX certification ATEX II 3G Ex nc IIB T6 Gc IP65
Body: 30x30mm square in anodized aluminium
Through holes for mounting on panel: Ø5,25mm wheelbase 20mm
Warranty: see dedicated page
Spare parts: see dedicated page
Also available:
- Special max pressure
- Special electrical connection
- Special value of hysteresis
- CU-TR for Russian market
- UL-CSA for electric part only
