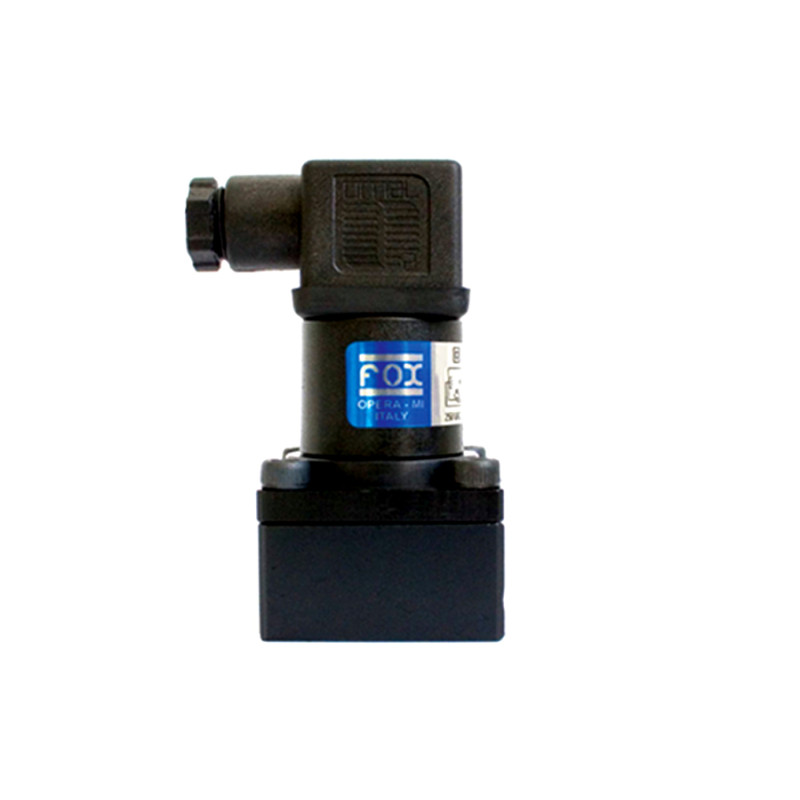

F3S Electromechanical pressure switches
- Brand: Fox
- Product Code: F3S
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Working temperature: -25°C ÷ +85°C
Switching frequency: 90 cycles/min
Setting point: adjustable through an internal screw
Switching accuracy: ± 3% of end of scale at
Fixed hysteresis value: ~ 7% of end of scale at
Weight: 0,1Kg
Mechanical life: 106 cycles at 70 bar (1000 PSI) at
Electric features:
- Maximum load: 0.5 A at 250 VAC, 0.15 A at 110 VDC
- Exchange contacts (Common, NO and NC) – SPDT
- Electric connection according to DIN43650, M2 and M3
- Electric protection according to DIN40050, IP65
- ATEX certification ATEX II 3G Ex nc IIB T6 Gc IP65
Body: 40x40mm square in anodized aluminium
Through holes for mounting on panel: Ø5,25mm wheelbase 31mm
Warranty: see dedicated page
Spare parts: see dedicated page
Also available:
- Special max pressure
- Special electrical connection
- Special value of hysteresis
- CU-TR for Russian market
- Electric protection according to DIN 40050, IP54 with P1 protection cap (Atex execution not applicable)
