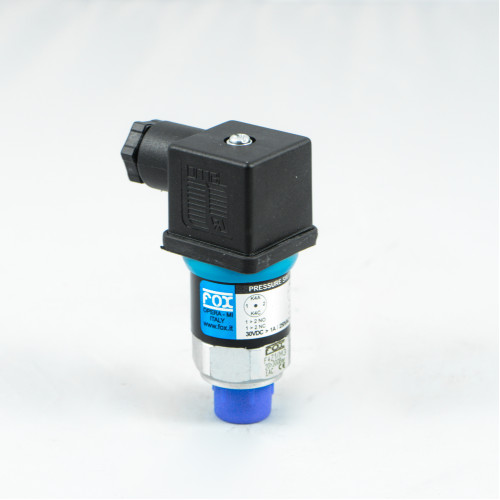

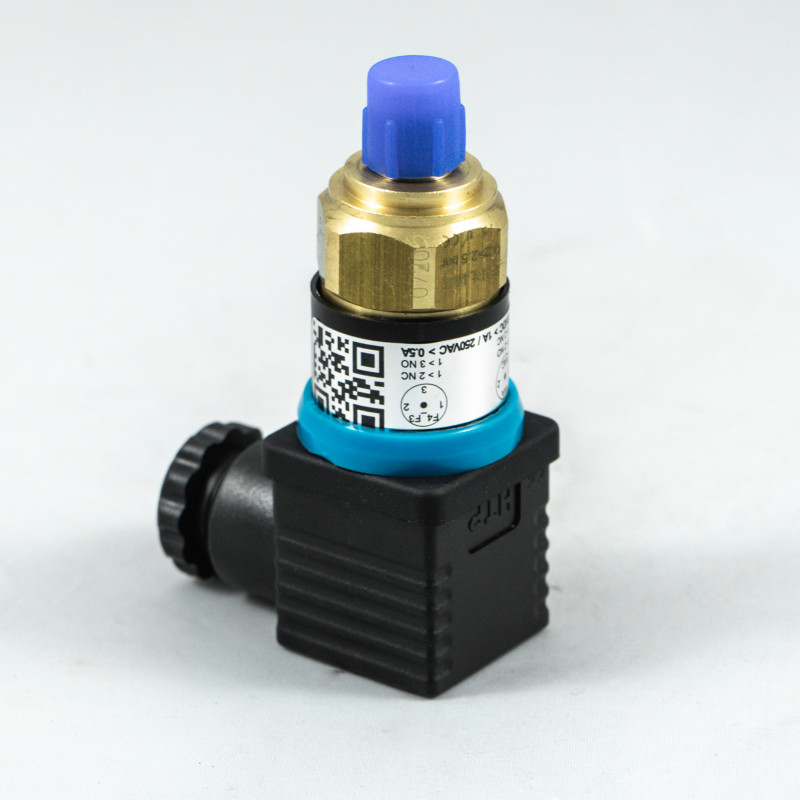

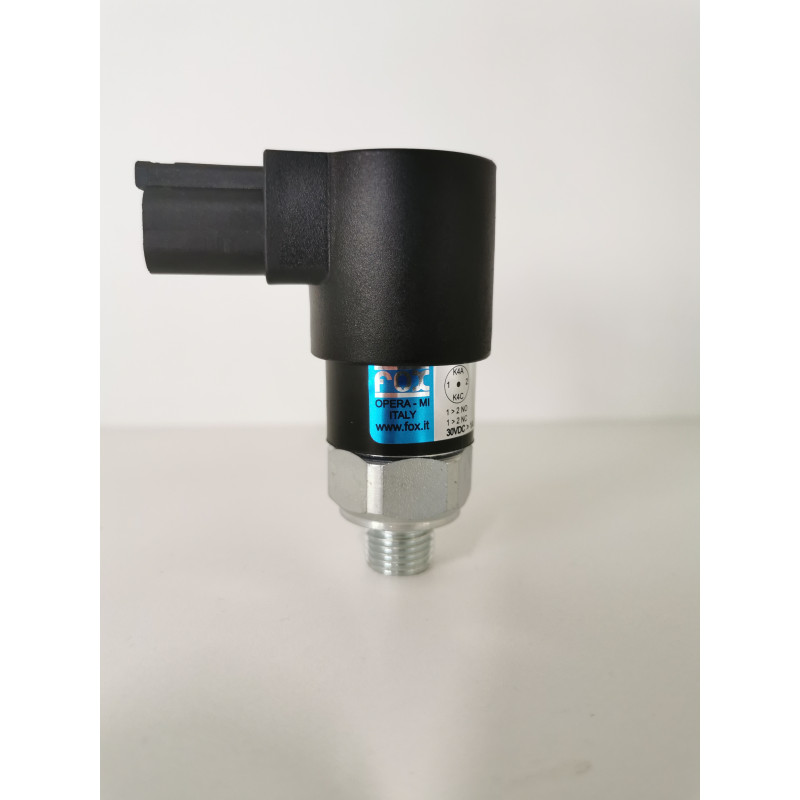

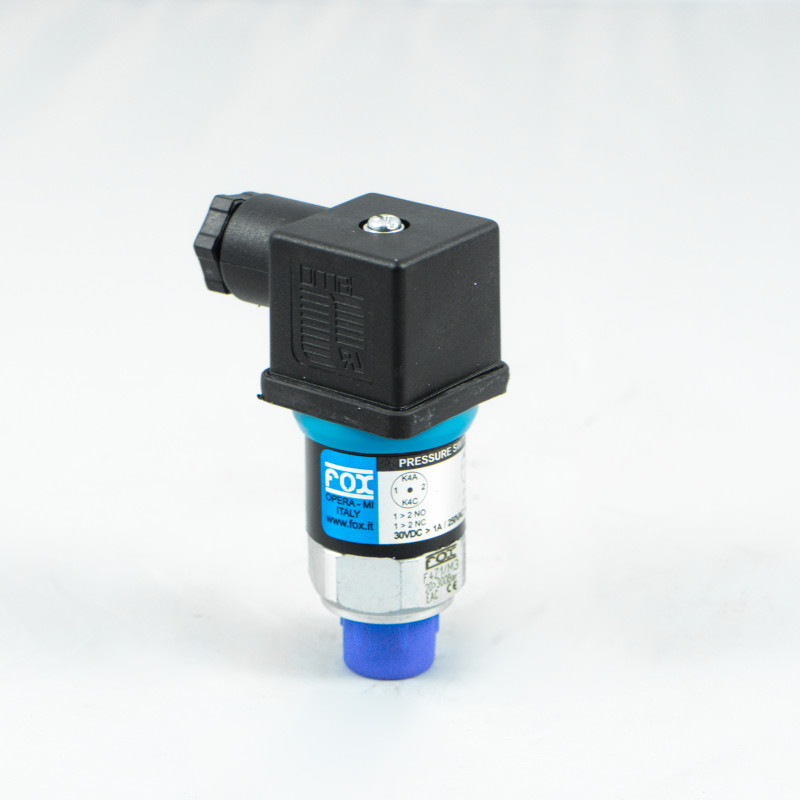

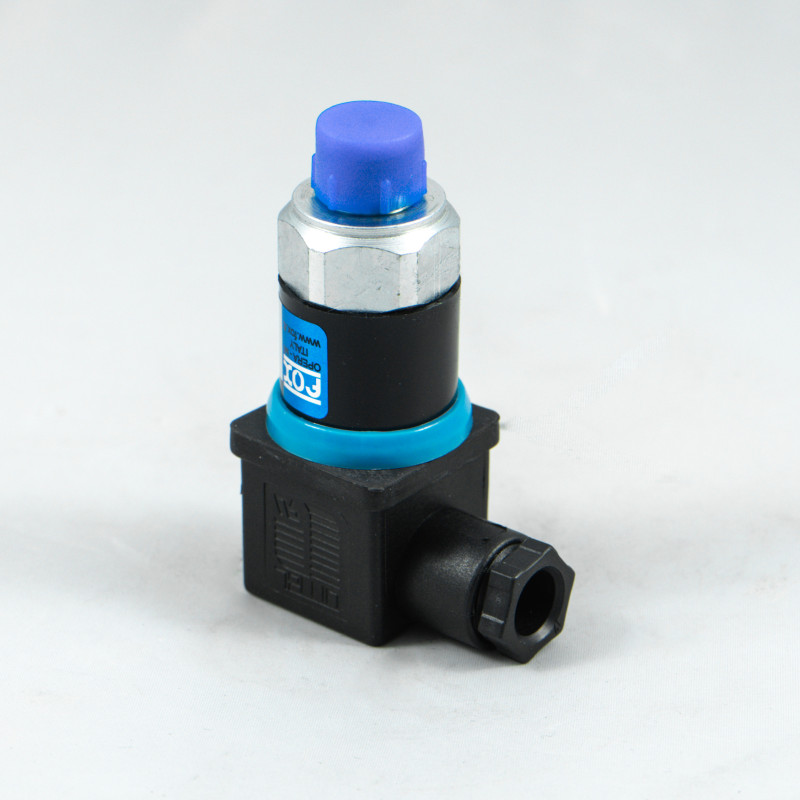

F4 Electromechanical pressure switches
- Brand: Fox
- Product Code: F4
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Working temperature: -25°C ÷ +85°C
Switching frequency: 90 cycles/min
Setting point: adjustable using internal screw
Switching accuracy: ± 4% of the end of scale at
Fixed hysteresis value:
- membrane execution ~ 10% of end of scale at 20°C
- piston execution ~ 15% of end of scale at 20°C
- Y piston execution ~ 25% of end of scale at 20°C
Weight:
Mechanical life: 106 cycles at 70 bar (1000 psi) at
Electric Features:
- Maximum load: 0.5 A at 250 Volt AC, 0.15 A at 110 Volt DC
- Exchange contacts (Common, NO and NC) - SPDT
- Electric connection according to DIN43650 for M2 and M3
- Electric protection according to DIN40050: IP65 for M2/M3 execution; IP54 for P3/P1 execution
Warranty: see dedicated page
Spare parts: see dedicated page
Also available:
- Special max pressure
- Special electrical connection
- Special value of hysteresis
- CU-TR for Russian market
- UL-CSA for electric part only
- ATEX certification ATEX II 3G Ex nc IIB T6 Gc IP65 for version with electric connection M2/M3 --- Separator in stainless steel, carbon steel or plastic (<10 bar) for corrosive and/or high percentage of solid particles
