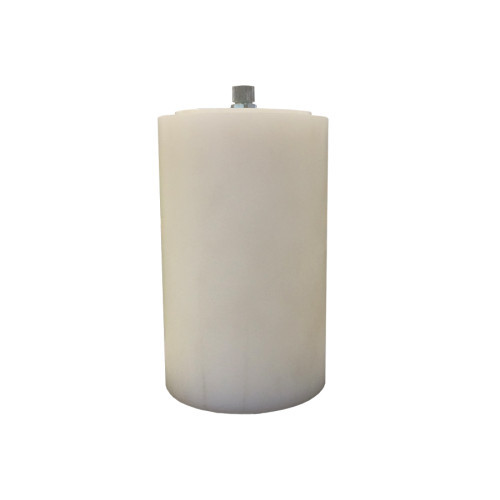

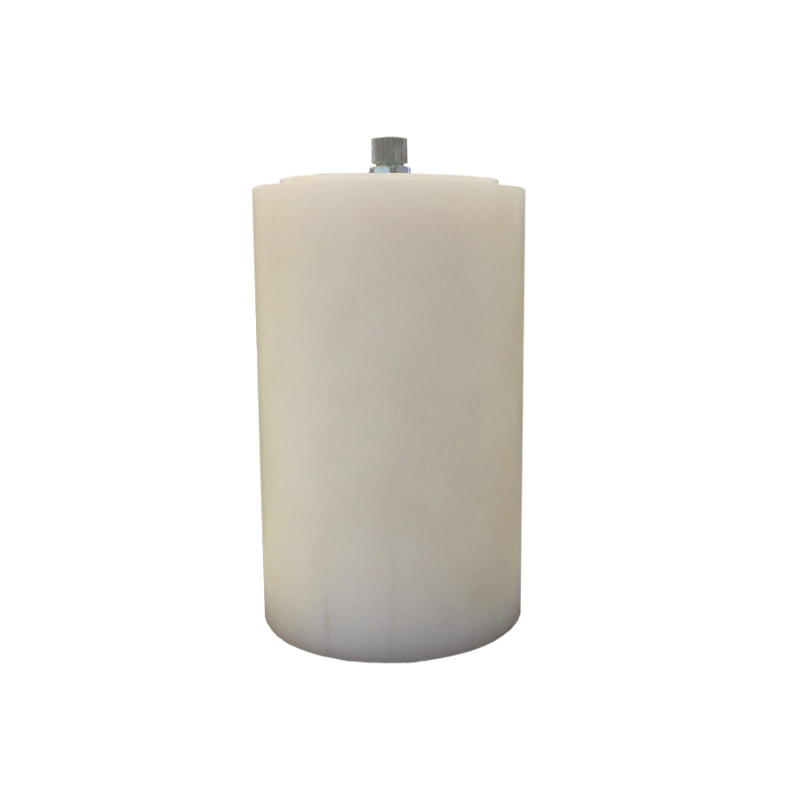

BHT Plastic pulsation dampeners
- Brand: Fox
- Product Code: BHT
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Maximum working pressure (PS): 10 bar
Test pressure(PT): PS x 1,43 / 1,5
Diaphragm / Bellow: in PTFE (Teflon)
Standard nitrogen valve : ⅝” UNF
Installation: horizontal / vertical (nitrogen valve upward)
Mechanical life: the number of cycles is inversely proportional to the increase of the compression ratio. For pulsation dampener applications, the nitrogen value must be from 60% to 80% of the working pressure also in relation with the type of pump and the working temperature.
Warranty: see dedicated page
Spare parts: see dedicated page
Also available:
- Connection with flange ANSI B16.5 or UNI/DIN
- Special connection on request
- Integral flange connection
- High pressure execution, 15bar
- Maintenance Free (BTHP-SMF)
- BTHP = PP = +0°C/+70°C
- BTHPVC = PVC-U = -5°C/+50°C
- BTHPVCC = PVC-C = -5°C/+60°C
- BTHPVDF = PVDF = -20°C/+80°C
