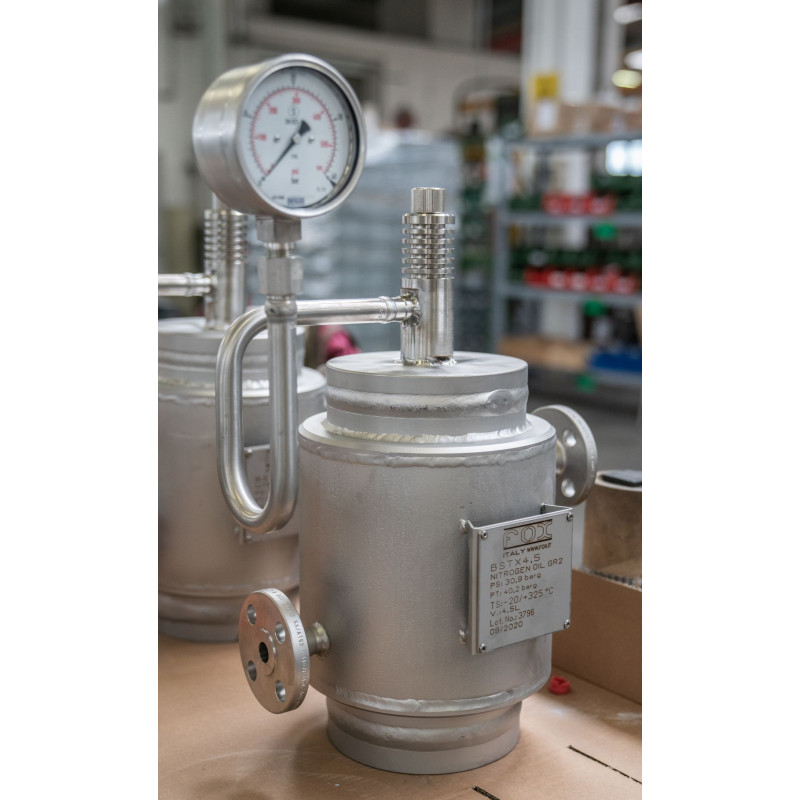

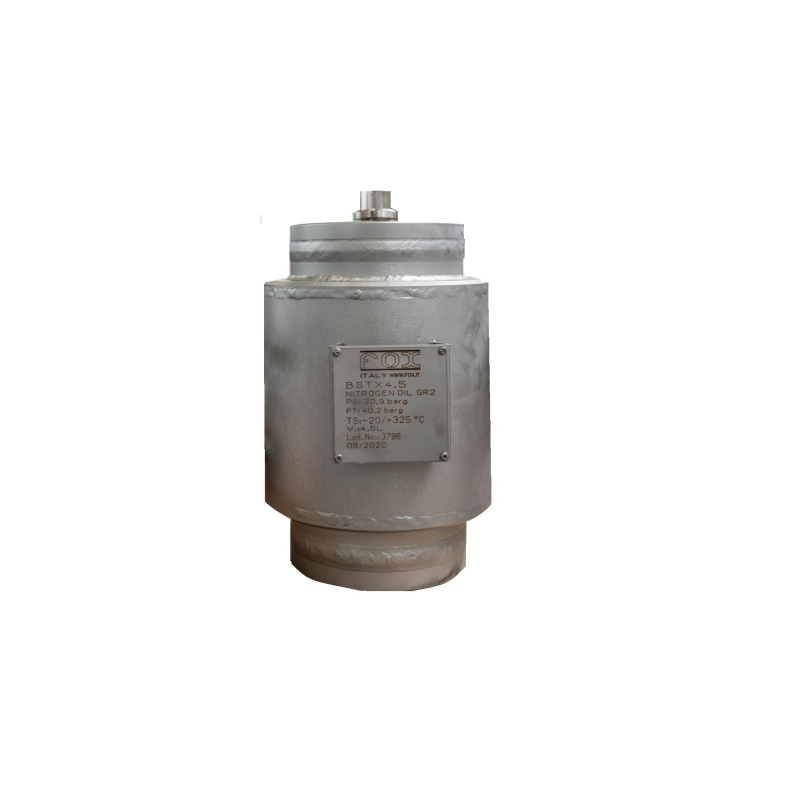

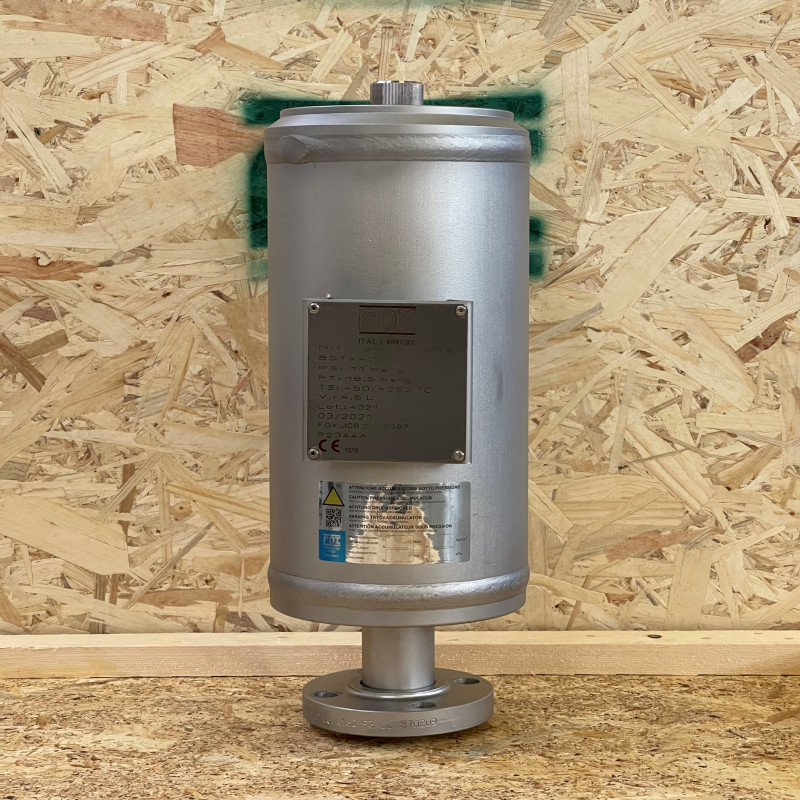

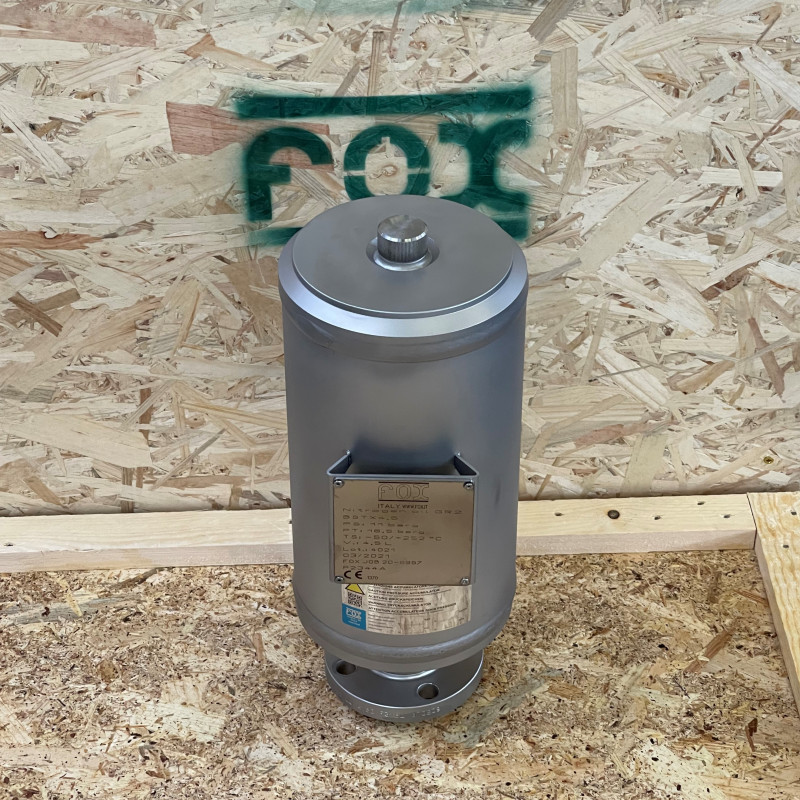

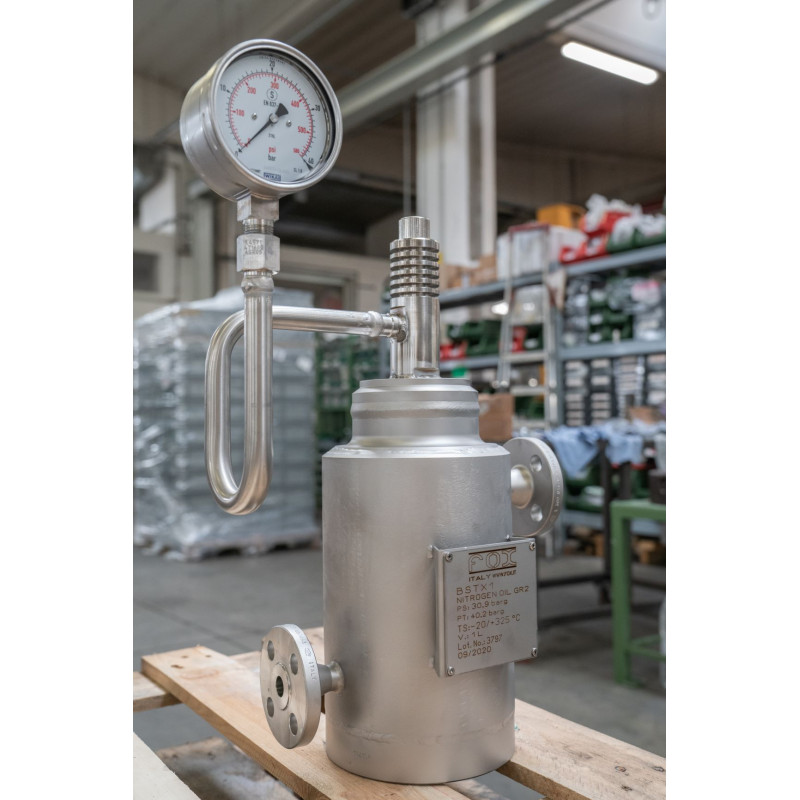

BSTX PTFE bellow or SS bellow Pulsation dampeners

PLEASE ASK FOR PRICE!

Maximum working pressure (PS): 150 Bar
Test pressure (PT): PS x 1,43 / 1,3 / 1,5
Body: in AISI 316 L stainless steel
Bellow: in AISI 316 L stainless steel
Standard nitrogen valve : ⅝” UNF
Installation: in every position


Mechanical life: the number of cycles is inversely proportional to the increase of the compression ratio. For pulsation dampener applications, the nitrogen value must be from 60% to 80% of the working pressure also in relation with the type of pump and the working temperature.
Warranty: see dedicated page
Spare parts: see dedicated page
Also available:
- Outside epoxy painted as per standard FOX procedure or as project specification
- Connection with flange SAE 3000 – SAE 6000, ANSI B16.5 or UNI/DIN
- Connection API spec. 6A type 6BX
- Autoclave or Grayloc connection
- Integral flange connection
- Special connection on request
- Special execution for high pressure
- Exotic material execution
- Special volume on request
