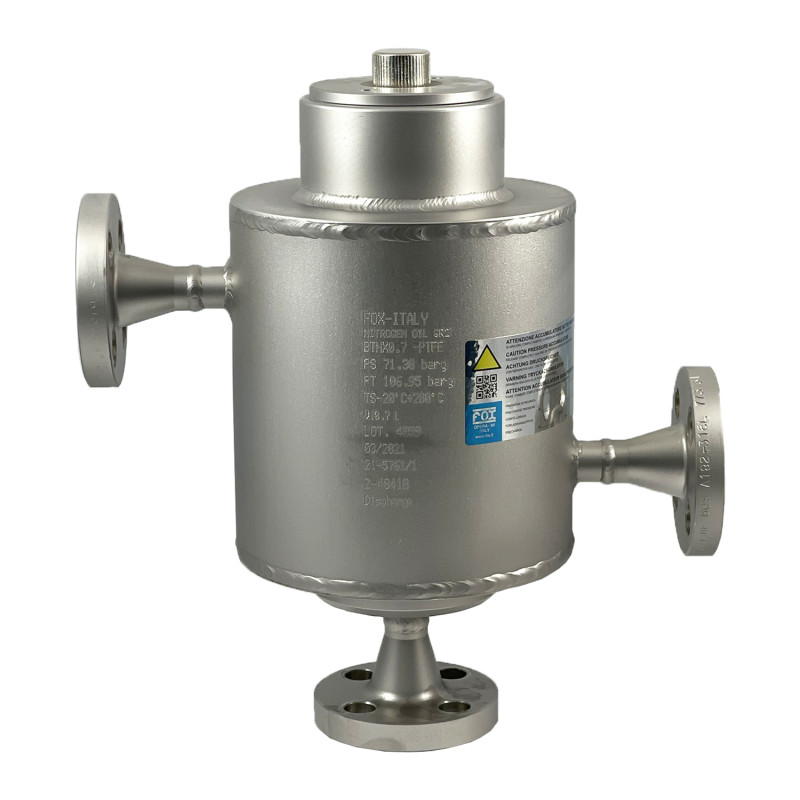

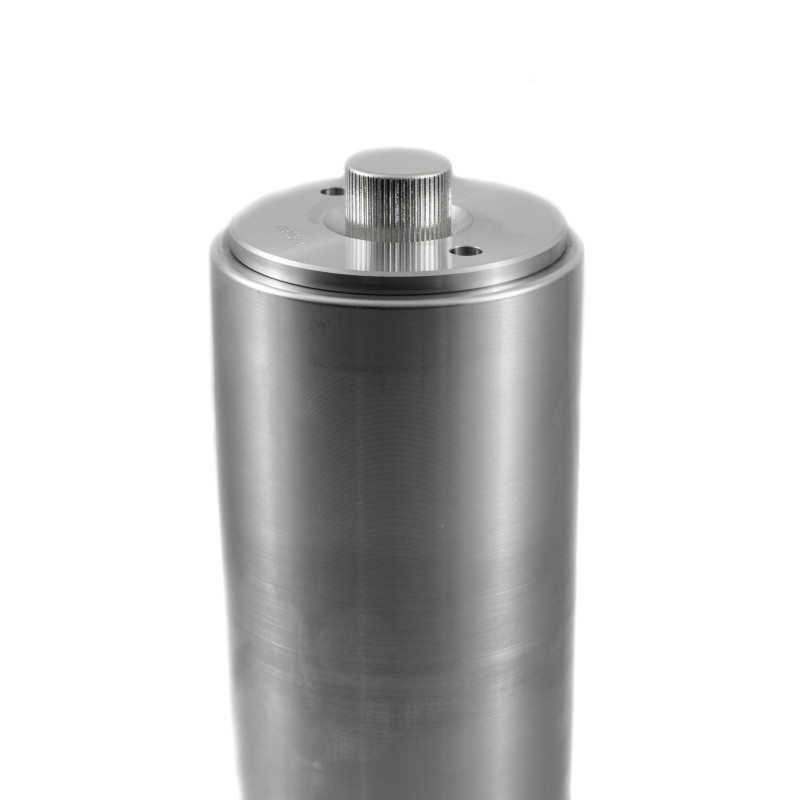

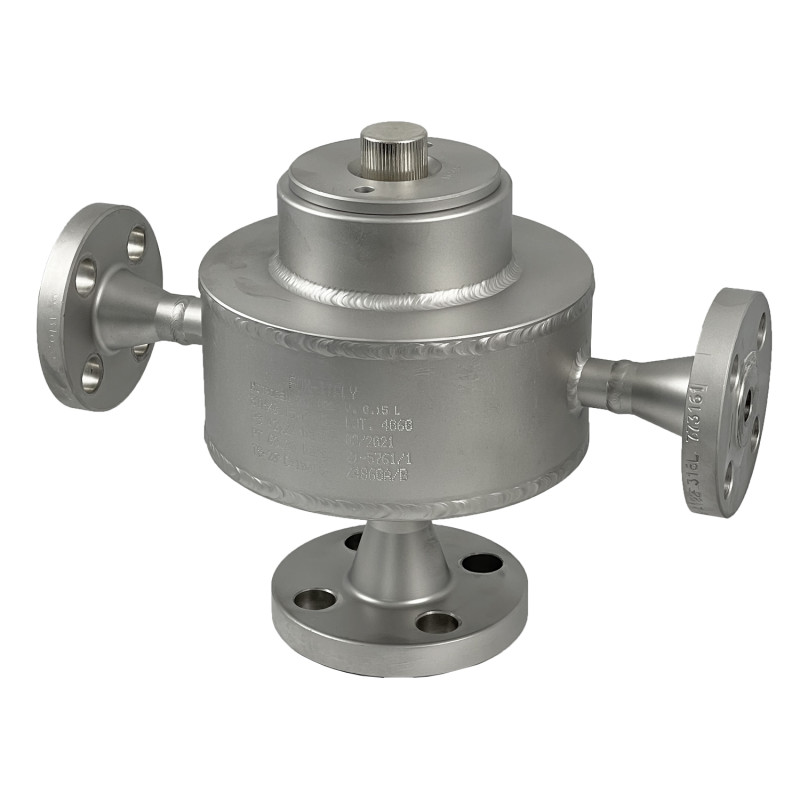

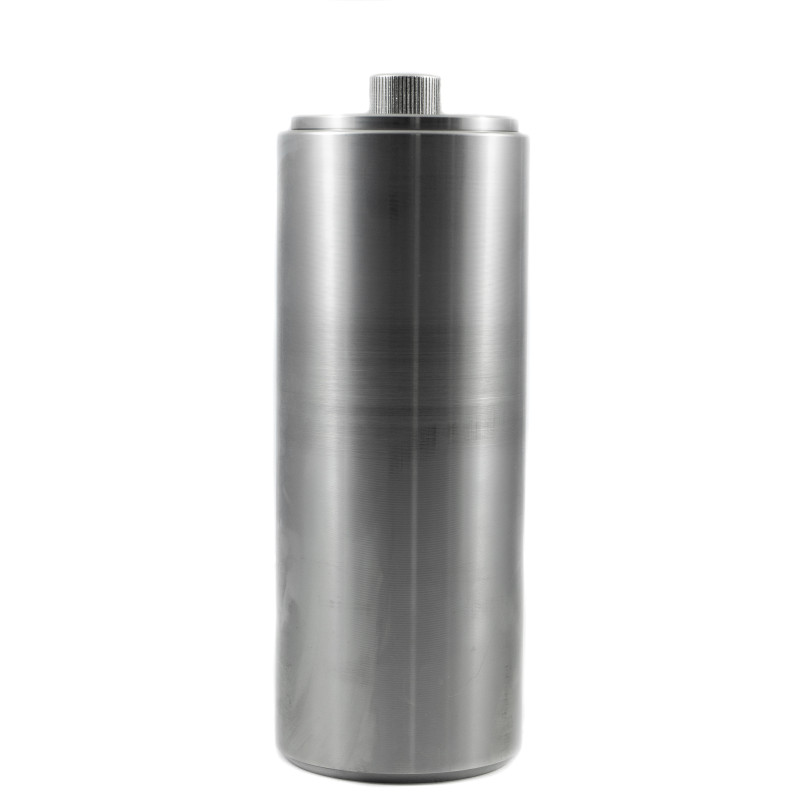

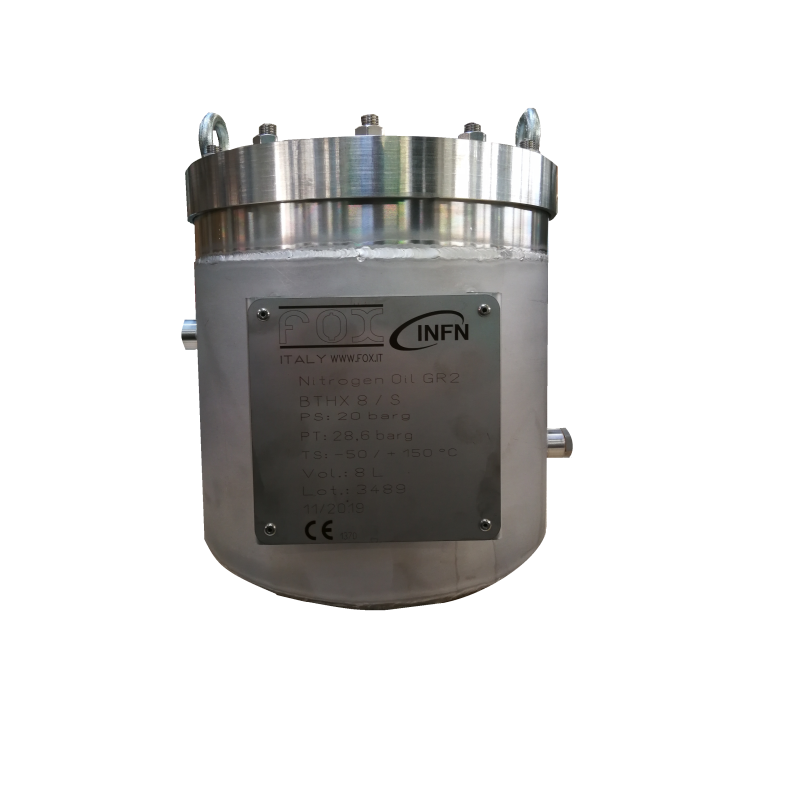

BTHX PTFE bellow or SS bellow Pulsation dampeners
- Brand: Fox
- Product Code: BTHX
- Availability: In Stock
-
0.00€
- Ex Tax: 0.00€
PLEASE ASK FOR PRICE!
Maximum working pressure (PS): 150 Bar
Test pressure (PT): PS x 1,43 / 1,3 / 1,5
Body: in AISI
Diaphragm / Bellow: in PTFE (Teflon)
Standard nitrogen valve : ⅝” UNF
Installation: horizontal / vertical (nitrogen valve upward)
Mechanical life: the number of cycles is inversely proportional to the increase of the compression ratio. For pulsation dampener applications, the nitrogen value must be from 60% to 80% of the working pressure also in relation with the type of pump and the working temperature.
Warranty: see dedicated pageSpare parts: see dedicated page
Also available:
- Outside epoxy painted as per standard FOX procedure or as project specification
- Connection with flange SAE 3000 – SAE 6000, ANSI B16.5 or UNI/DIN
- Connection API spec. 6A type 6BX
- Autoclave or Grayloc connection
- Integral flange connection
- Special connection on request
- Special execution for high pressure
- Exotic material execution
- Diaphragm / Bellow FDA certified
- Lapped / electro polished execution for pharmaceutical applications
- Special volume on request
- BTH, carbon steel execution
- BSTX, execution with metallic bellow for application above 250°C
