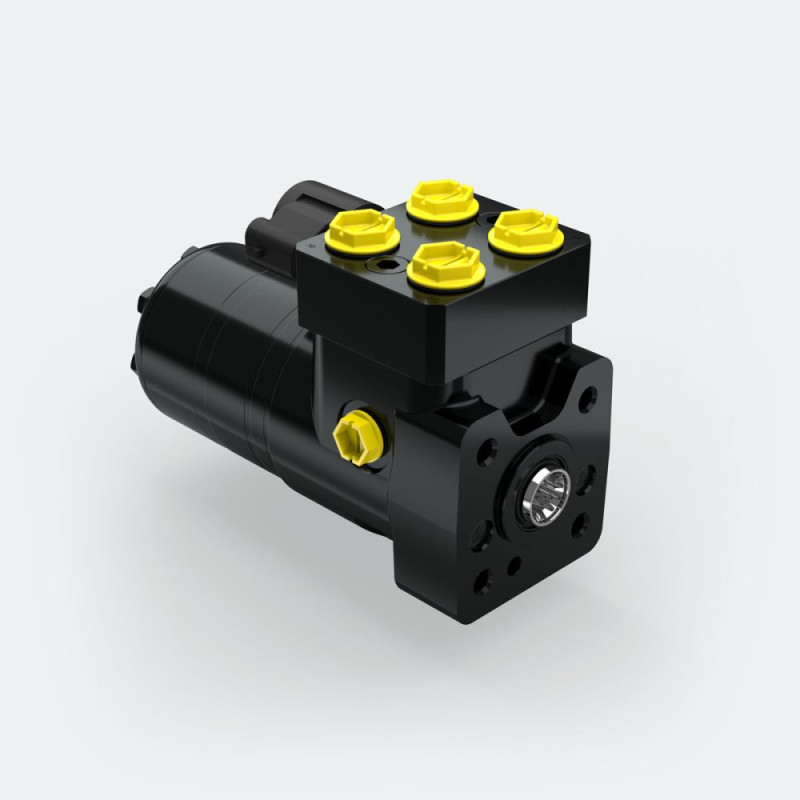

REATRONIC Switchable reaction steering unit

Brand: Ognibene Power
Product Code: REATRONIC
Availability: In Stock

0.00€
Ex Tax: 0.00€

Description
Reviews (0)

PLEASE ASK FOR PRICE!

Smart selectable reaction steering unit for agriculture and construction equipment, and sweepers

Reatronic is a versatile and flexible smart selectable reaction steering unit.
It consists of one steering unit (single or double gerotor layout) and an external solenoid valve electrically switchable when a reaction or a non-reaction mode is required.

This architecture helps integration with electro-hydraulic auto guidance system technology for precision farming, and emergency steering is always guaranteed in both conditions.

This steering unit features:

Reactive on-road and non reactive for off-road
Auto-switch modality available (through on board computer)
Plug and play solutions for GPS controlled tractors
Compact design
Cost effective steering features

Technical features

Single displacement

Displacement	50-400 cm³ (3,05-24,41 in³/rev)
Flow, recommended	5-50 l/min (1,32-13,20 US Gal/min)
Maximum steering pressure	210bar (3045,79psi)
Maximum back pressure	40bar (580psi)
Low steering torque	From 0,8 to 3,0 Nm (7,08 to 26,55 lbf·in)
Built-in valve functions	Relief valve, shock valves, suction valves, check valve in P line and in LS line

Dual displacement

Dual displacement mode	From 120 cm³/rev up to 460 cm³/rev (7,32 in³/rev to 26,85 in³/rev)
Single displacement mode	From 60cm³/rev up to 125cm³/rev (3,66in³/rev to 7,62in³/rev)
Flow, recommended	5-50 l/min (1,32-13,20 US Gal/min)
Maximum steering pressure	210bar (3045psi)
Maximum back pressure	40bar (580psi)
Low steering torque	From 0,8 to 3,0 Nm (7,08 to 26,55 lbf·in)
One or more built-in valve functions	Relief valve, shock valves, suction valves, check valve in P line and in LS line

Tags: REATRONIC Switchable reaction steering unit,
