Hydraulic non-serviceable actuator for agriculture, gardening, and utility vehicles

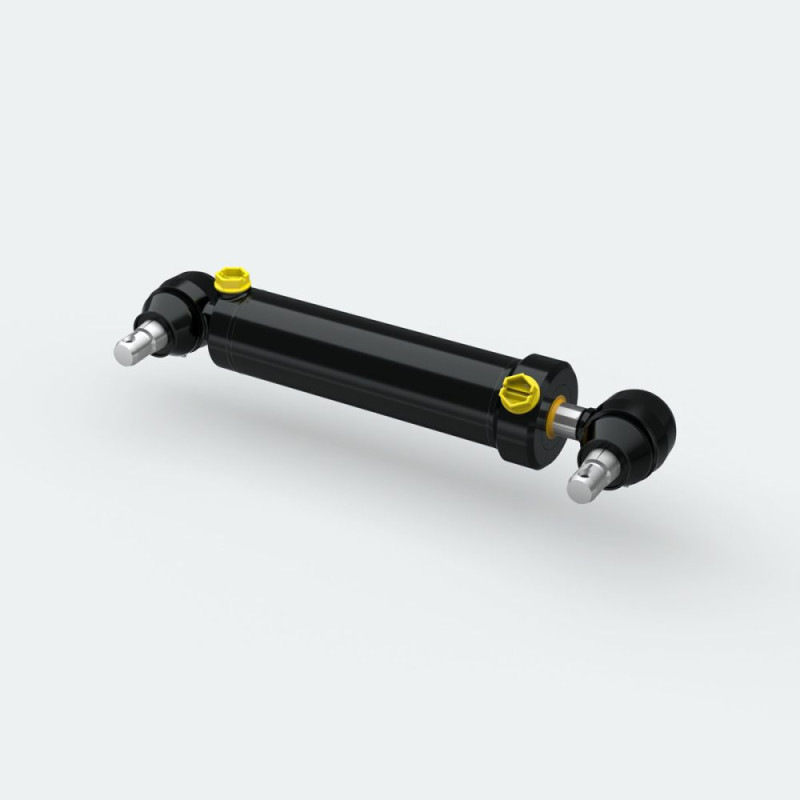

10 DEN is a double acting unbalanced cylinder designed for steering applications for tractors, fairway mower, mower and utility vehicles.

It’s available with two possible types of connection ends:

  • spherical bearing
  • conical pin

This hydraulic actuator features:

  • Induction hardened and chrome-plated surface 96 h ASTM B117
  • Metal-coated rod guide or guide rings
  • Zero-leakage piston seals (on request)

Technical features

Pressure range Max Bar 150
Temperature range Min °C (°F) -30°C (-22°F)



+90°C (+194°F)

+110°C (+230°F)
Max std
Max available
Rod diameter Min  mm 16



25
Max
Bore Min mm 35



63
Max
Pin to Pin (Max) mm 1000
