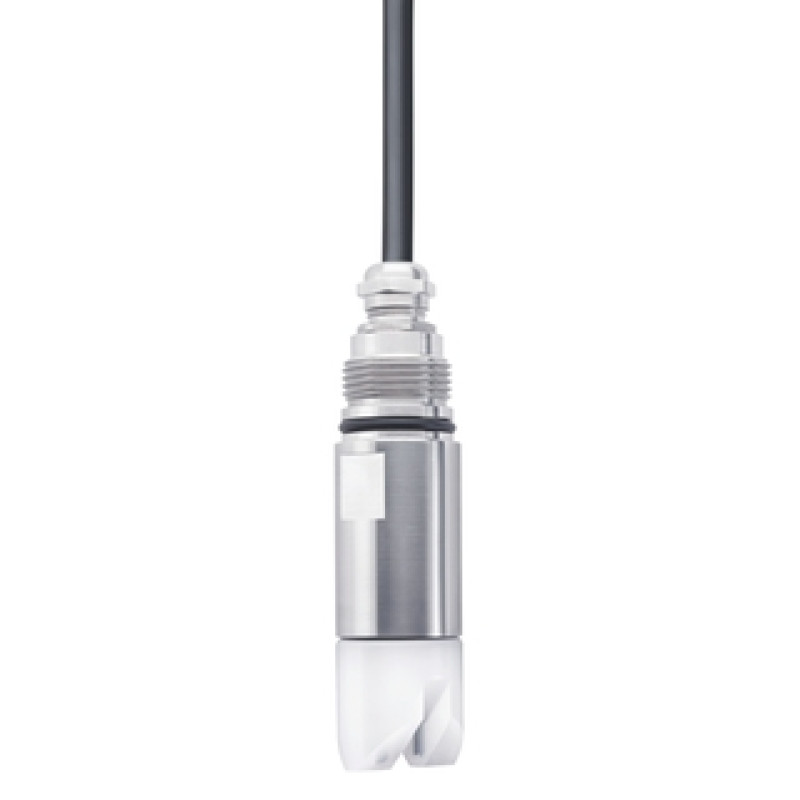

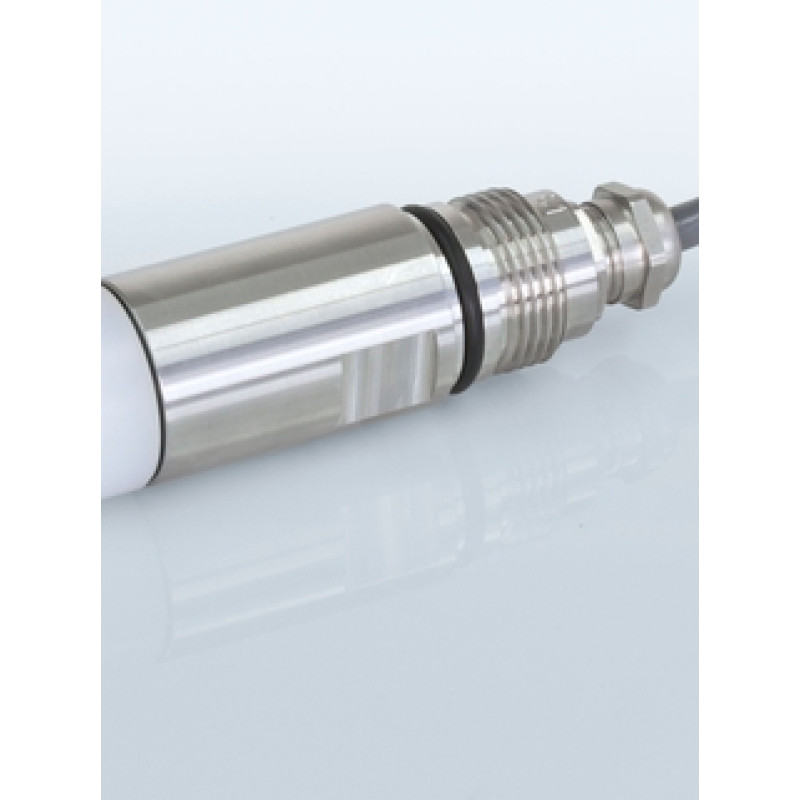

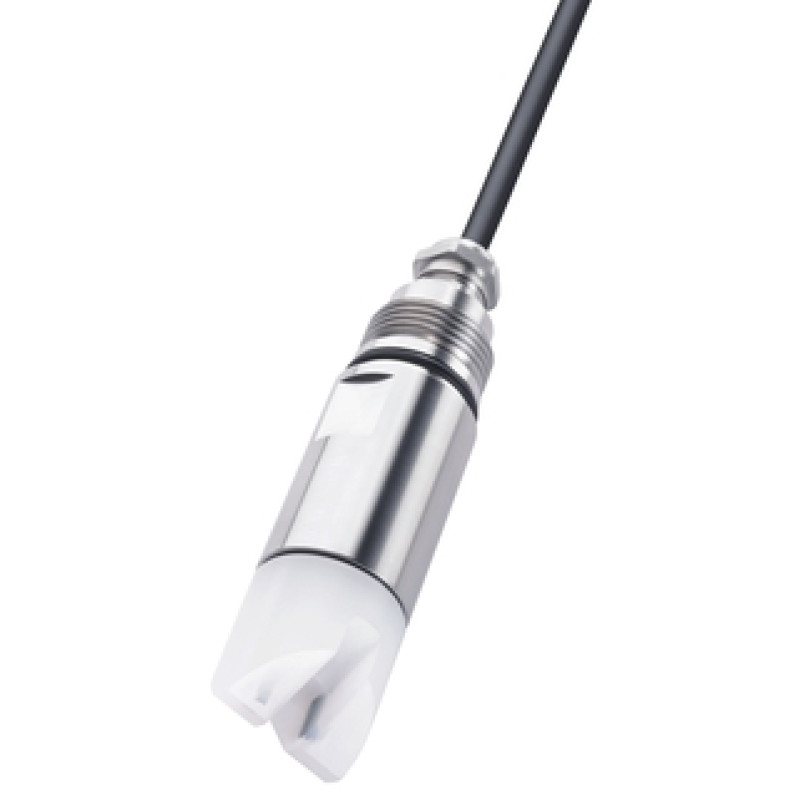

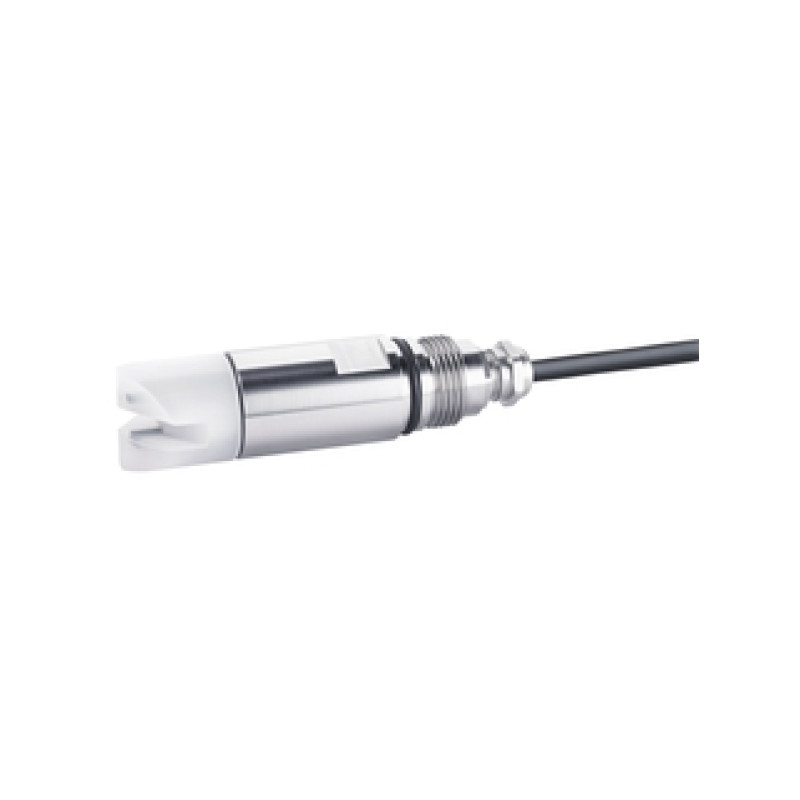

OUSAF11 Glass-free absorption sensor

NIR/VIS absorption sensor for phase detection and suspended solids

• Measuring principle

  NIR absorbance

• Application

  Suspended solids measurement, product interface detection, milk detection, produkt loss detection

• Characteristic

  VIS/NIR absorption

• Measurement range

  0 to 3 AU
  0 to 6 OD (depending on optical path length)

• Design

  Glassfree, hygienic sensor

• Material

  Sensor head: FEP
  Sensor body: stainless steel 316L
  O-Ring: EPDM

• Process temperature

  0 to 90 °C (32 to 194 °F) continuous
  Max. 130 °C (266 °F) for 2 hours

• Process pressure

  Max. 10 bar abs at 20 °C
  (Max. 150 psi at 68 °F)

• Connection

  Thread G1
  NPT 1" thread
  Tri-Clamp 2"/2.5"/3"
  VARIVENT N DN40-125

• Ingress protection

  IP 67
  IP 68 when mounted with CYH112

• Additional certifications

  FDA, 3-A
