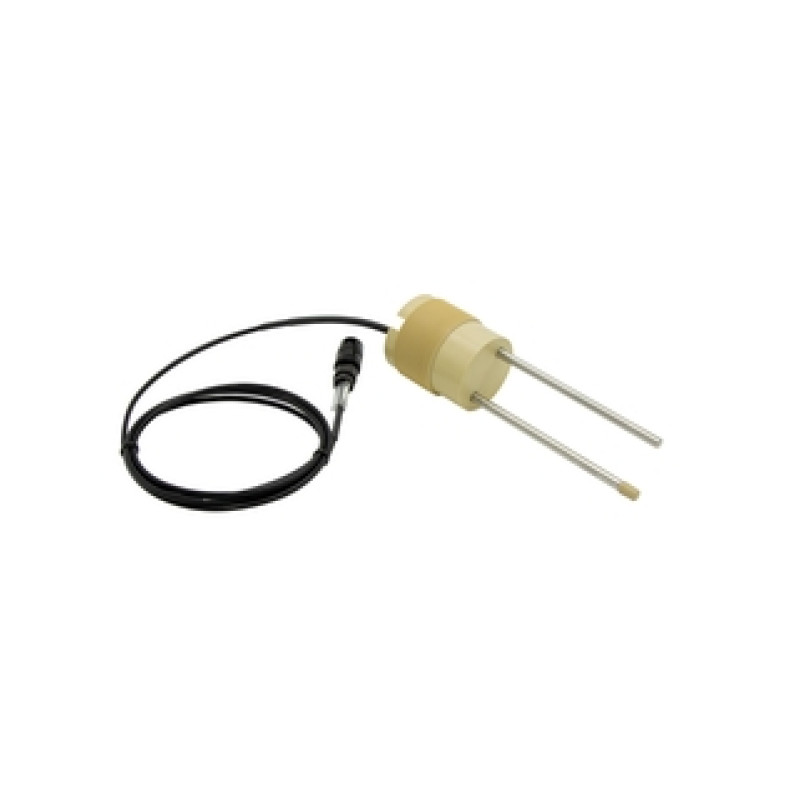

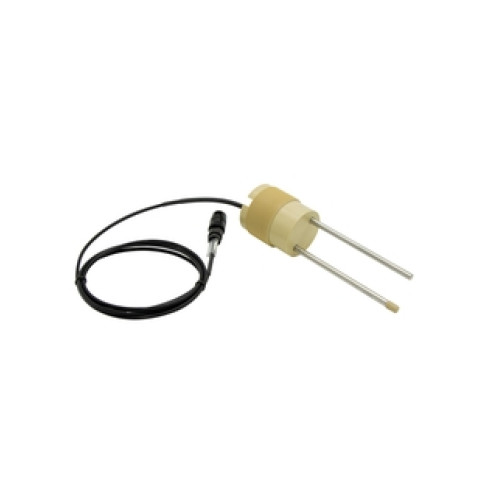

MMP44 Solitrend Reliable Inline moisture measurement

For grain and seed handling and mainly in continuous drying processes and malting

• Measuring principle

  Guided radar

• Application

  Moisture measurement in grain and similar heterogeneous bulk solids with the density from 0.3...1 g/ cm³
  Possible applications: Grain dryers, grain handling, seed handling or malthouse

• Measuring method

  Contact Inline measurement with two rods sensor and transmitter

• Measurement range

  Recommended moisture range %/ vol.: 0...50 %

• Material permeation depth

  Up to 130 mm (0.43 ft)

• Consistency of the sample

  Conductivity range:
  0…max. 2 mS/ cm

• Temperature sensor

  Yes

• Process temperature

  0…+120°C
  (+32°F...+248°F)

• Accuracy

  Up to +/-0.3 % abs.

• Output / communication

  0...20 mA
  4...20 mA

• Options

  Remote display
  Sensor cables
