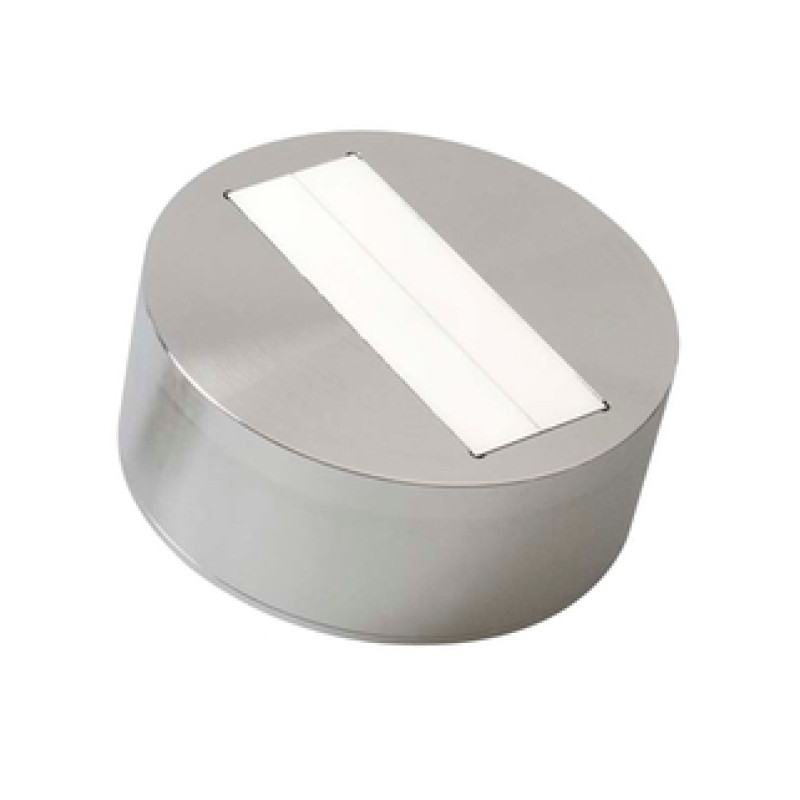

MMP41 Solitrend Flexible Inline moisture measurement

For continuous and batch processes in bulk solids

• Measuring principle

  Guided radar

• Application

  Moisture measurement in heterogeneous bulk solids with the density from 0.8...2 g/ cm³ like sand, gravel or gritt

• Measuring method

  Contact Inline measurement

• Measurement range

  Recommended moisture range %/ vol.: 0...100 %

• Material permeation depth

  Up to 45 mm (0.15 ft)

• Consistency of the sample

  Conductivity range:
  0…max. 5 mS/ cm

• Temperature sensor

  Yes

• Process temperature

  0…+120°C
  (+32°F...+248°F)

• Accuracy

  Up to +/-0.1 % abs.

• Output / communication

  0...20 mA
  4...20 mA

• Options

  Remote display
  Sensor cables
  Baffle plate
  Universal holder
  Sliding carriage
