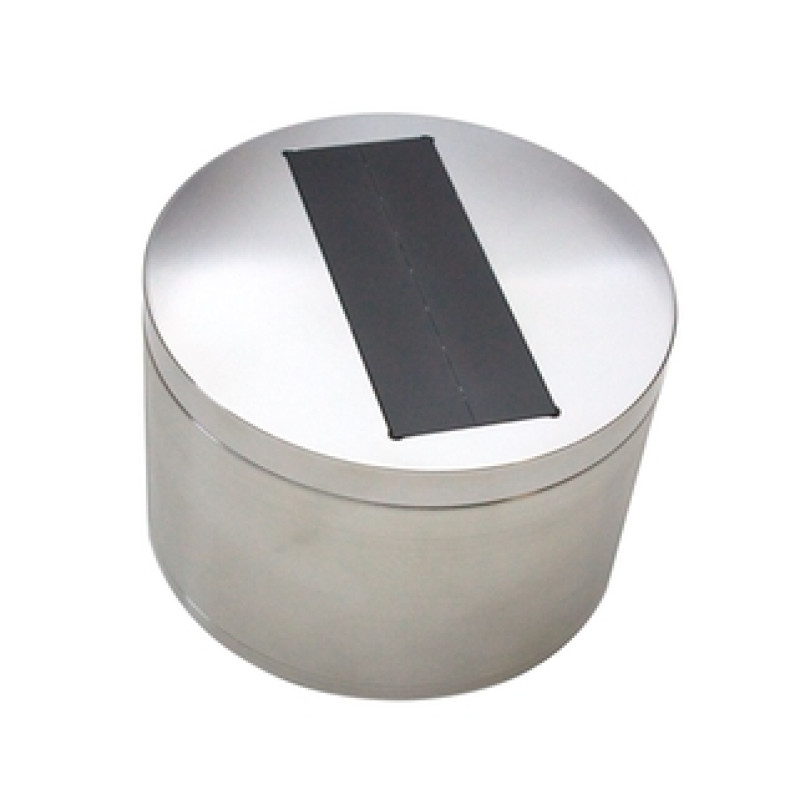

MMP40 Solitrend Moisture measurement in conductive media

For continuous and batch processes in conductive bulk solids and slurries

• Measuring principle

  Guided radar

• Application

  Moisture measurement in heterogeneous bulk solids with the density from 1...3 g/ cm³ like fresh concrete, sewage sludge, slurries and other conductive materials

• Measuring method

  Contact Inline measurement

• Measurement range

  Recommended moisture range %/ vol.: 0...100 %

• Material permeation depth

  Up to 35 mm
  (0.11 ft)

• Consistency of the sample

  Conductivity range:
  0…max. 20 mS/ cm

• Temperature sensor

  Yes

• Process temperature

  0…+70°C
  (+32°F...+158°F)

• Accuracy

  Up to +/-0.1 % abs.

• Output / communication

  0...20 mA
  4...20 mA

• Options

  Remote display
  Sensor cables
  Baffle plate
  Universal holder
  Sliding carriage
