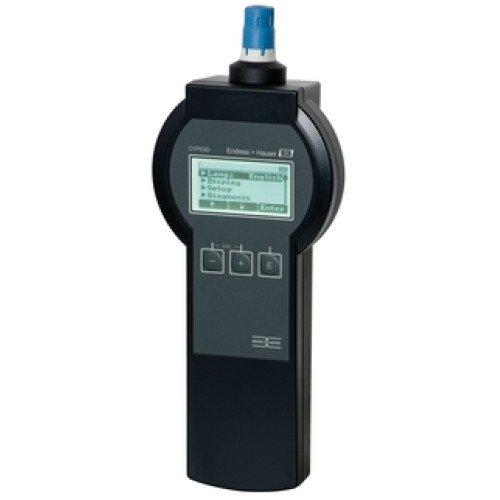

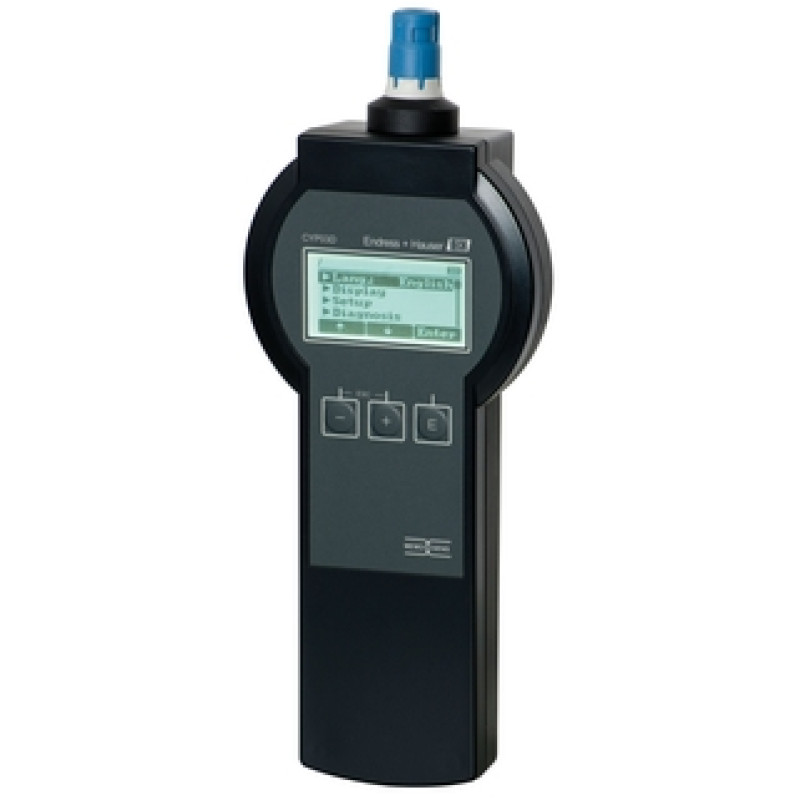

CYP03D Memocheck Sim Digital service and qualification tool

All-round checker for Memosens measuring points in all industries

Previous: Memocheck Plus CYP01D

• Measuring principle

  Potentiometric

• Application

  Simulation of freely configurable values for qualification of digital data transmission of analysis measuring points with Memosens protocol
  Multiparameter, main- and secondary values

• Installation

  Temporary connection via Memosens cable with inductive coupling

• Measurement range

  Ranges like the simulated sensors

• Dimension

  Handheld:
  94 x 236 x 40 mm
  3.7 x 9.29 x 1.57 inch

• Process temperature

  Ambient temperature: –20 to 50 °C (–4 to 120 °F)

• Ex certification

  ATEX, IECEx, CSA

• Connection

  Battery powered

• Ingress protection

  IP65
