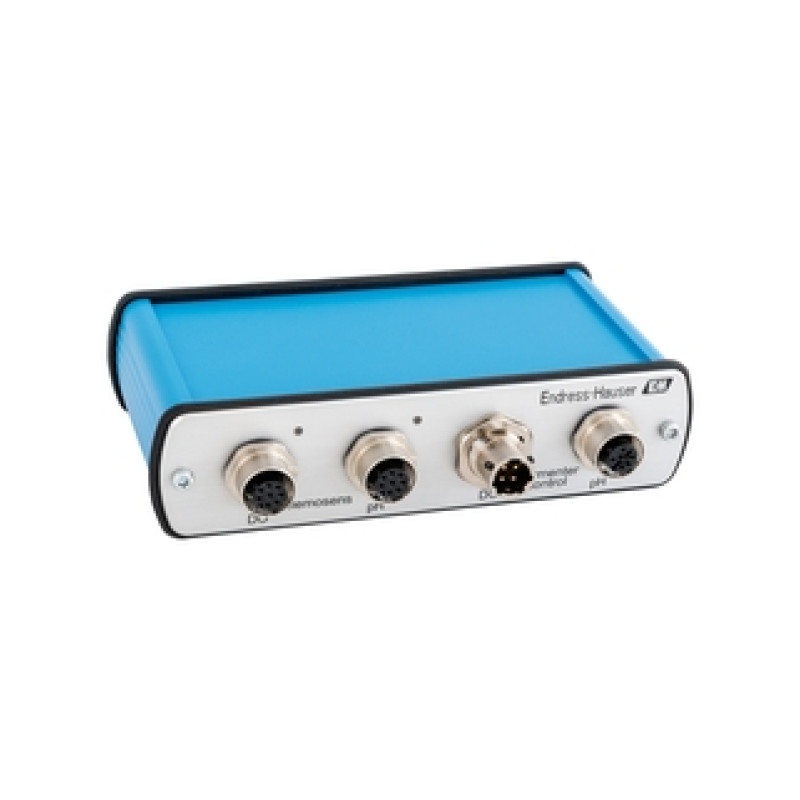

CYM17 Memosens Analog Converter

Converter for Memosens sensors for easy use with laboratory fermenters

• Measuring principle

  Potentiometric

• Application

  CYM17 converter enables easy retrofit of conventional analog pH and oxygen sensor to Memosens CPS171D and COS81D in benchtop fermentation applications.

• Material

  Housing: Aluminum

• Dimension

  Height: 36.6 mm (1.44 in)
  Deep: 72 mm (2.8 in)
  Width 140.6 mm (5.5 in)

• Process temperature

  -5 to 50 °C (20 to 120 °F)

• Ingress protection

  IP54

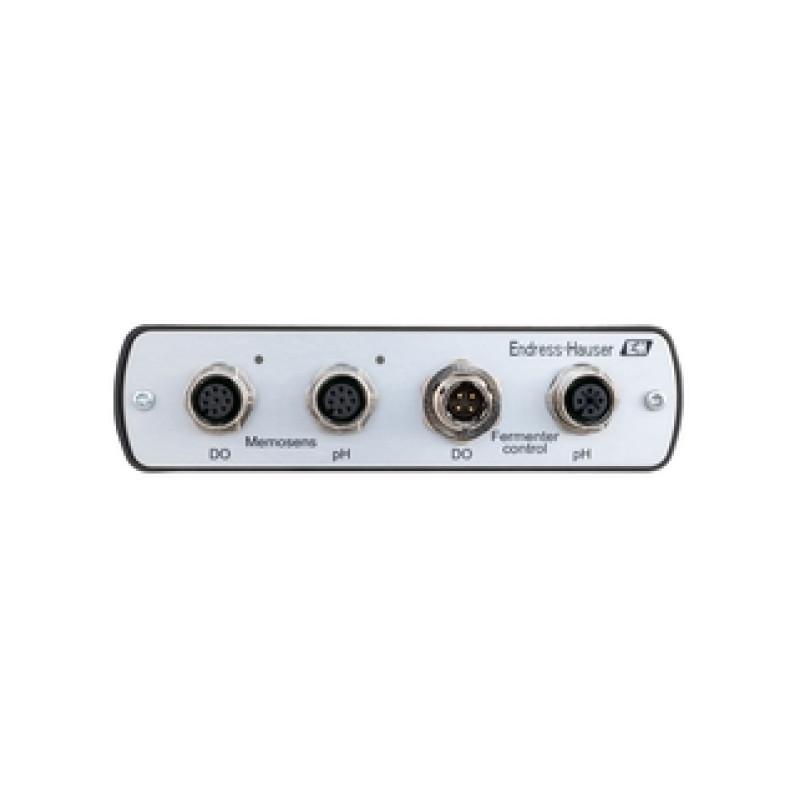

• Input

  M12 socket

• Output / communication

  Output pH: mV signal according to Nernst equation with 0 mV at pH 7 and -59 mV/pH
  Temperature pH: simulated PT1000
  Output oxygen: 0 to 60 nA with 60 nA at 100% oxygen saturation
  Temperature oxygen: simulated 22 kOhm NTC
