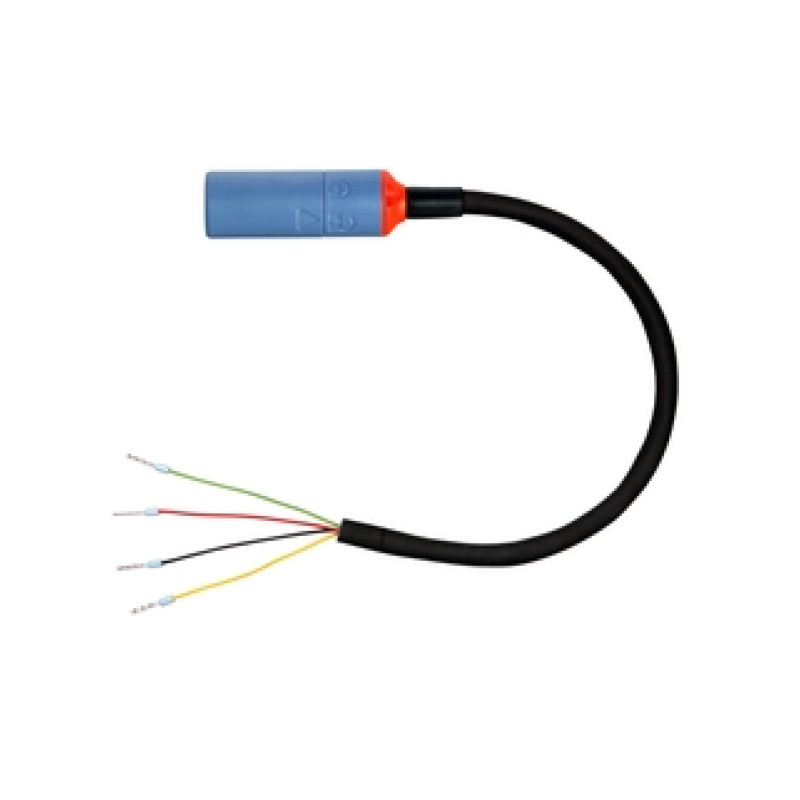

CYK10 Digital measuring cable

Memosens data cable for all sensors with Memosens plug-in head

• Measuring principle

  Potentiometric

• Application

  Measuring cable for contactless, inductive, digital transmission of measurement signals

• Installation

  Inductive plug- head for digital sensors with Memosens technology and wire terminals or M12 plug to connect to the transmitter

• Characteristic

  Inductive, digital transmission of measurement signals and energy
  Not influenced by moisture, EMC-fields and corrosion

• Measurement range

  High impedance cable not necessary

• Design

  Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and plug-head
  No open contacts, resistant against humidity

• Material

  Cable sheath: TPE
  Junction box: aluminum

• Dimension

  Diameter: 6.3 mm (0.25 inch)
  Cores: 2x2 cores, twisted pairs
  Length: up to approx. 100 m (328 ft)

• Process temperature

  -25 to 135 °C (-13 to 277 °F)

• Process pressure

  max. 50 bar/725 psi at 135°C/275°F.

• Temperature sensor

  For digital sensors with inductive plug-head with and without temperature sensor

• Ex certification

  ATEX II 1G Ex ia IIC T3/T4/T6
  FM, CSA IS Cl.1 Div 1 Gr. A-D
  ATEX, NEPSI II 3G Ex nL IIC
  TIIS

• Ingress protection

  IP68

• Additional certifications

  Also available as TÜV approved SIL version
