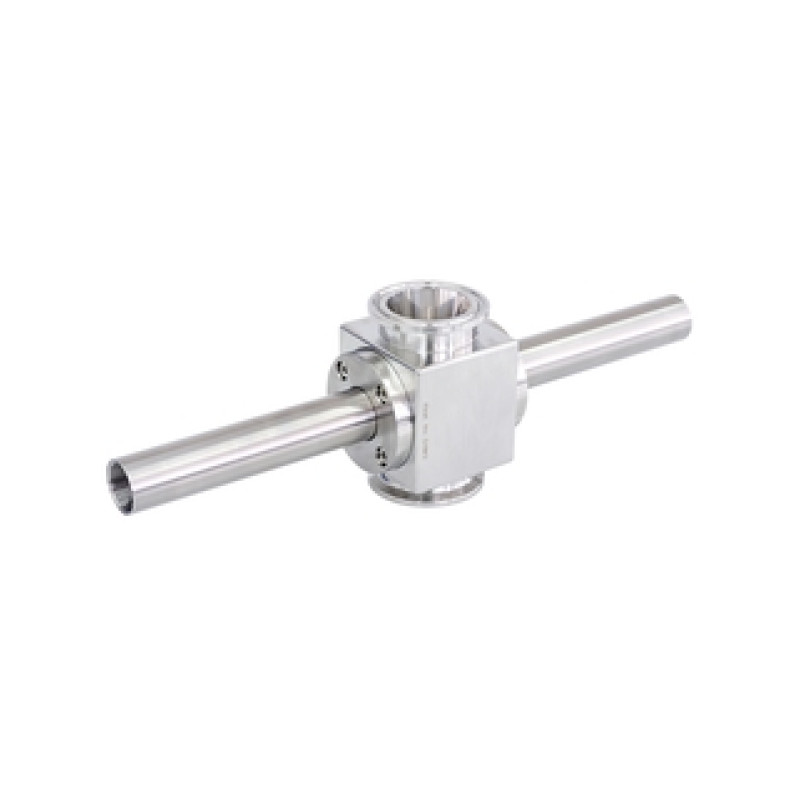

CYA680 Flow assembly

Assembly for the Life Sciences and Chemical industries

• Measuring principle

  Potentiometric

• Application

  Life Sciences, Oil & Gas, Chemical Industries

• Installation

  flow assembly,with Clamp 0,25" ... 2"

• Characteristic

  pipe mounting

• Design

  flow assembly with small bore from 5mm ... 45mm corresponding the Clamp Diameters
  for mounting 1 pH electrode (CPS71D-TU) and 1Memosens CLS82D

• Material

  Holder: stainless steel or PVDF
  Sealings: EPDM, Kalrez, Viton, Teflon-coated Viton (all FDA compliant)

• Dimension

  flange spacing 82,55 mm, 3;25"

• Process temperature

  max.130°C
  266°F

• Process pressure

  Stainless steel: max. 16 bar; PVDF: max 4 bar

• Connection

  Clamp 0,25" ... 2"

• Additional certifications

  Material certification 3.1 EN 10204
  Surface roughness Ra < 0.76 µm.
