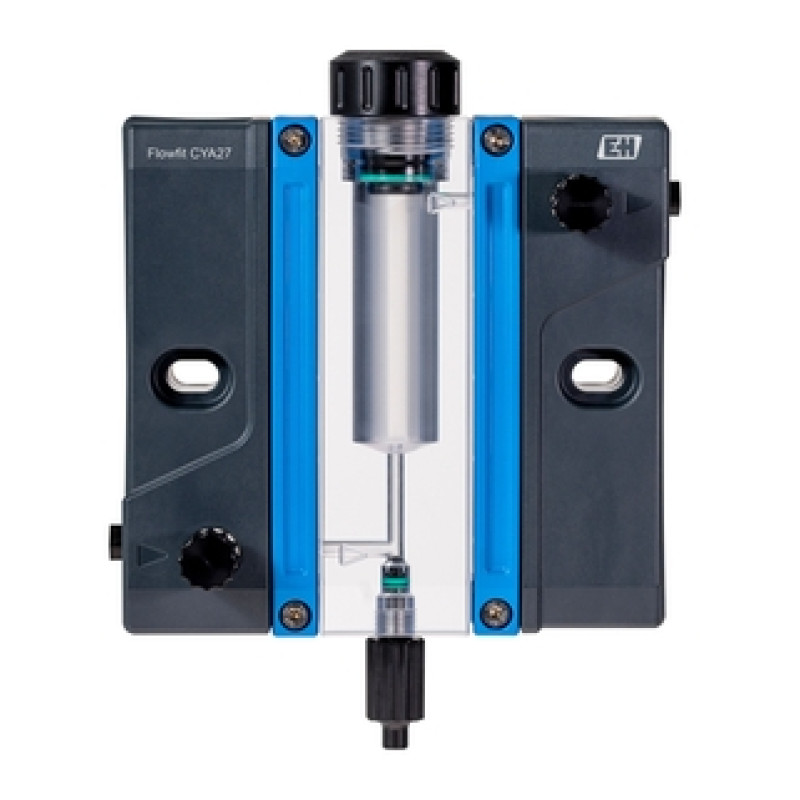

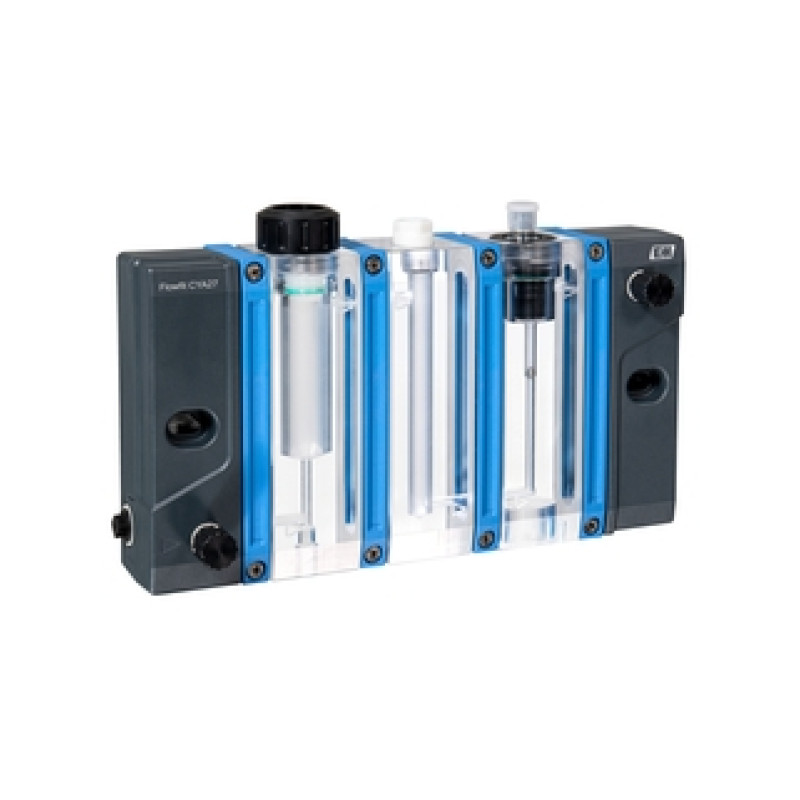

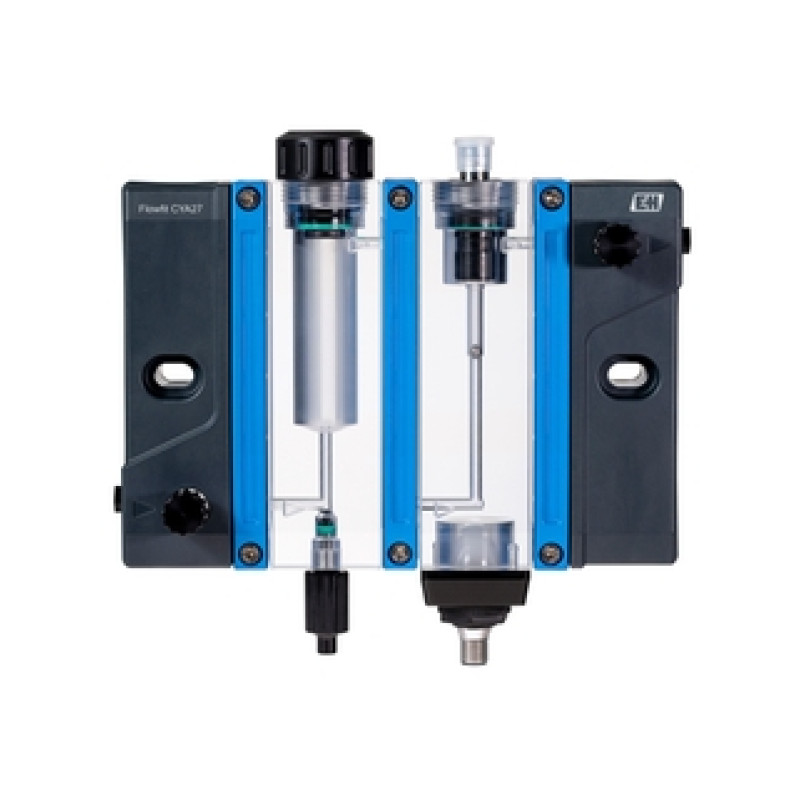

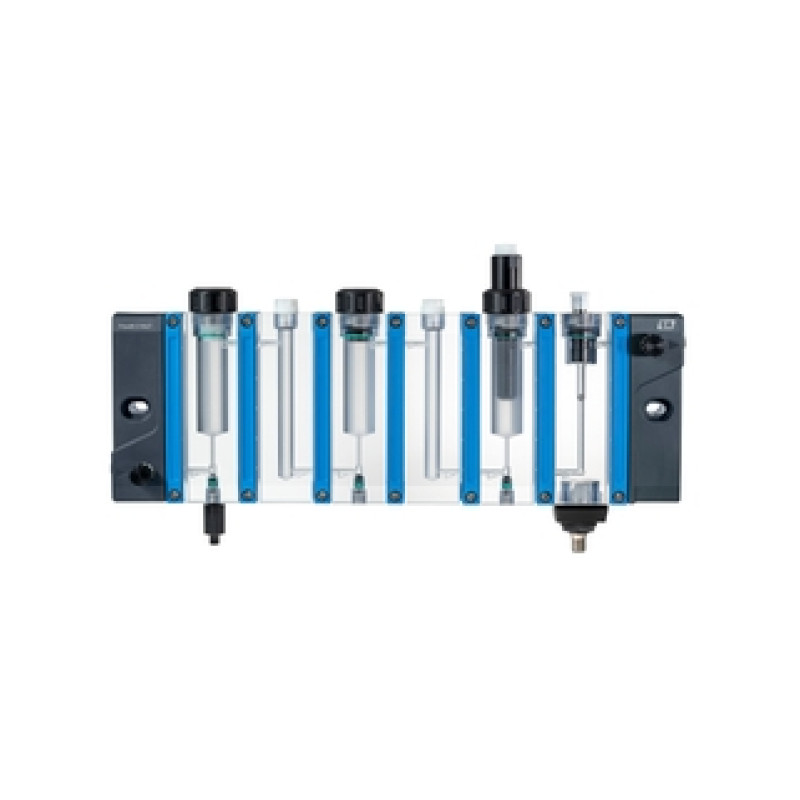

CYA27 Flowfit Flow assembly for multi-parameter measurements

Modular assembly for drinking and process water applications

Previous: Flowfit W CCA250, Flowfit CCA151

• Measuring principle

  Ozone

• Application

  Drinking water
  Utilities of all industries
  Less drained sample water

• Characteristic

  Flow assembly for multiparameter measurement

• Design

  Flow through assembly with optimized flow path for disinfection sensors and for 12 mm sensors
  optional: flow monitoring
  optional: dosing

• Material

  Plexiglas (PMMA) with FKM seals

• Dimension

  modular, from WxHxD 165x155x73 mm (6.50x6.10x2.87 in) up to 345x249.5x94 mm (13.58x9.82x3.70 in)

• Process temperature

  0 to 60 °C (32 to 140°F)

• Process pressure

  0 to 4 bar (0 to 58 psi) relative

• Connection

  G1/4" or adaptation
