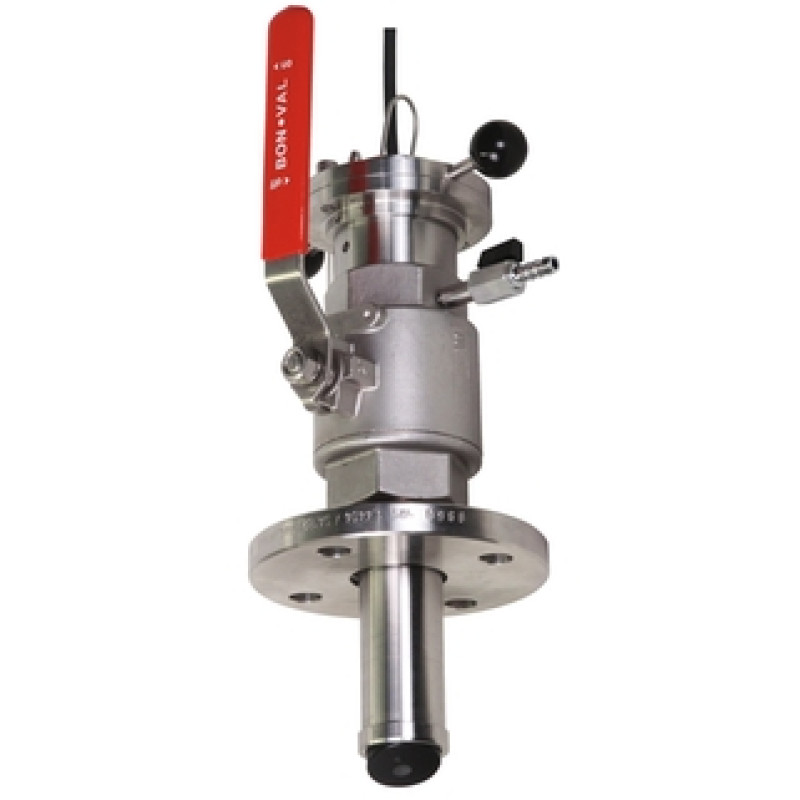

CUA451 Cleanfit Turbidity assembly

Retractable assembly for water, wastewater and utilities

Previous: CUA461

• Measuring principle

  Single beam scattered light

• Application

  - Primary sludge and return activated sludge in sewage treatment plants.- Sludge centrifuge monitoring- Filter monitoring and filter backwash- Monitoring of phase break processes.- Cooling water monitoring.

• Installation

  Manual retractable holder with ball valve for pipe or bypass installations.

• Characteristic

  - Cleaning possible in every operation mode due to rinse water connection.- Sensor monitoring and calibration without process interrupt.

• Design

  Manual retractable holder with rinse water connections and external cleaning system. Rinse water connection can be used as sealing water inlet.

• Material

  Holder : stainless steel 1.4404Sealing : Viton

• Dimension

  Immersion depth : 170mm or 270mm
  (6.63 - 10.53inch)

• Process temperature

  0 to 85 °C (32 to 185 °F)

• Process pressure

  For manual assembly operation : max 2bar (29psi)
  Medium pressure : max. 10bar (145psi)

• Connection

  Process connections : Flange DN50/PN16; ASME 2"/150lbs; G2";Rinse water connections: 2x G1/8; Air supply: 9mm tubing.
