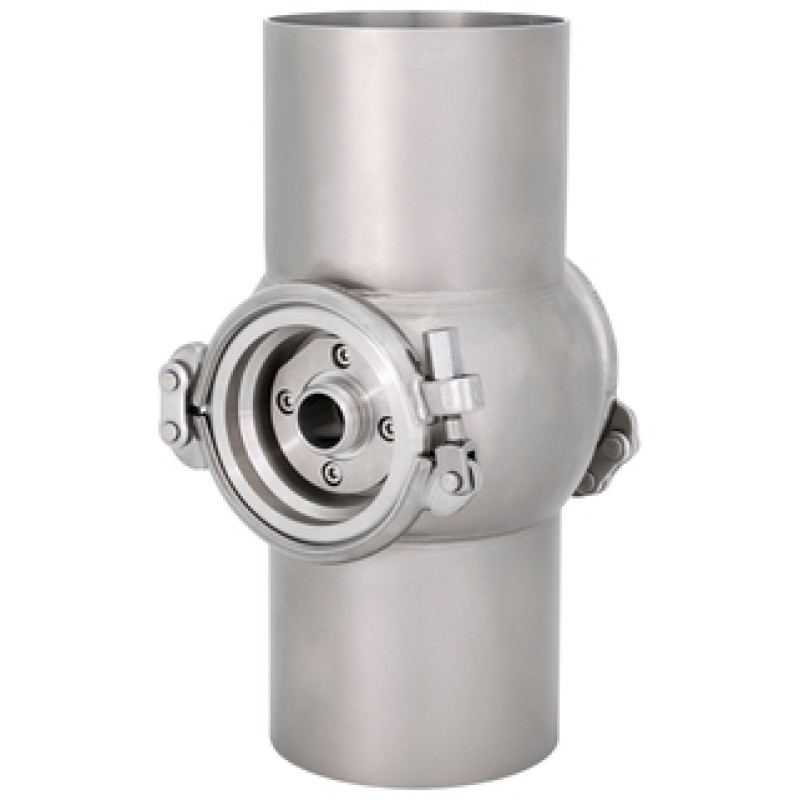

CUA261 VARIVENT assembly for process photometer

PLEASE ASK FOR PRICE!

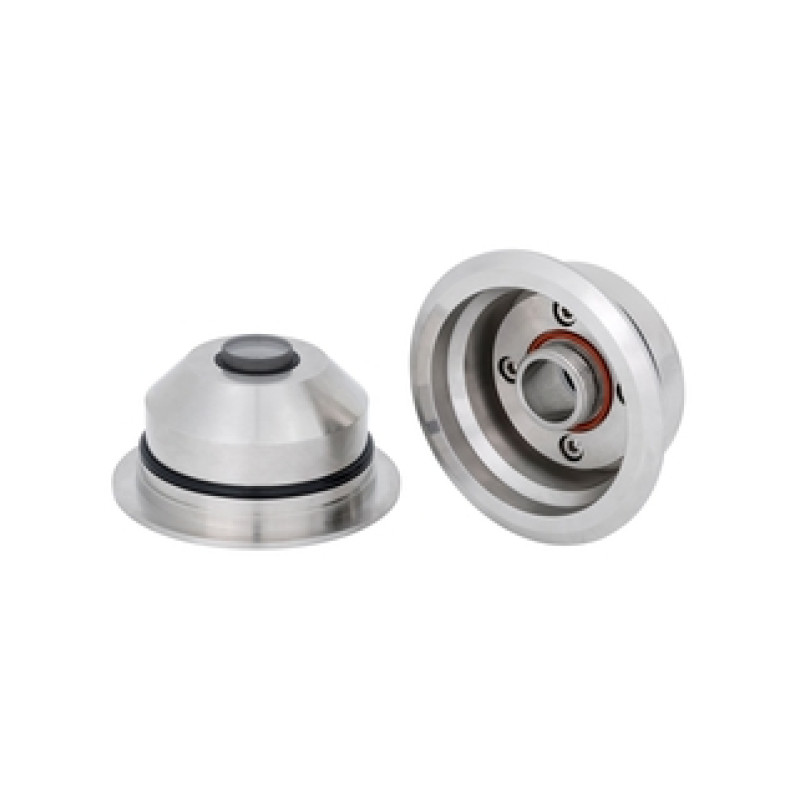

Flow assembly with VARIVENT adapter for a variety of optical Inline measurements

• Measuring principle

  UV absorbance

• Application

  VARIVENT process connection for installation of the optical sensors: OUSAF44/46, OUSAF12, OUSAF22 and OUSTF10

• Material

  Body: stainless steel 316L
  Windows: Borosilicate, quartz or sapphire
  O-rings: EPDM, silicone, FKM

• Process temperature

  0 to 135°C (32 to 275 °F)

• Process pressure

  max. 11 bar abs. (159 psi abs.) at 25°C (77°F)
